Auto Parts Metal Product Manufacturing Line | Automated Production for Electrical Car Components

Auto Parts Metal Product Manufacturing Line | Automated Production for Electrical Car Components

Model:
BLA
Brand:
BESCOMT

Availability:

Quantity:



Inquire Add to Basket

BLA single point open type power press

★The machine body is welded of quality steel sheet and treated by tension elimination,improve stability and reliability of precision of the machine.

★In order to guarantee the machine running in stable and smooth,adopts the design of symmetrical two slid borards with balancer.

★The precision of mold adjusting up to 0.1mm,safety,reliable and convenient

★Crank,gear.connect bar are oxidized hardening and milled,having super comprehensive mechanical performance and durable function.

★Reasonable structural design,is convenient for automatic production and line production.

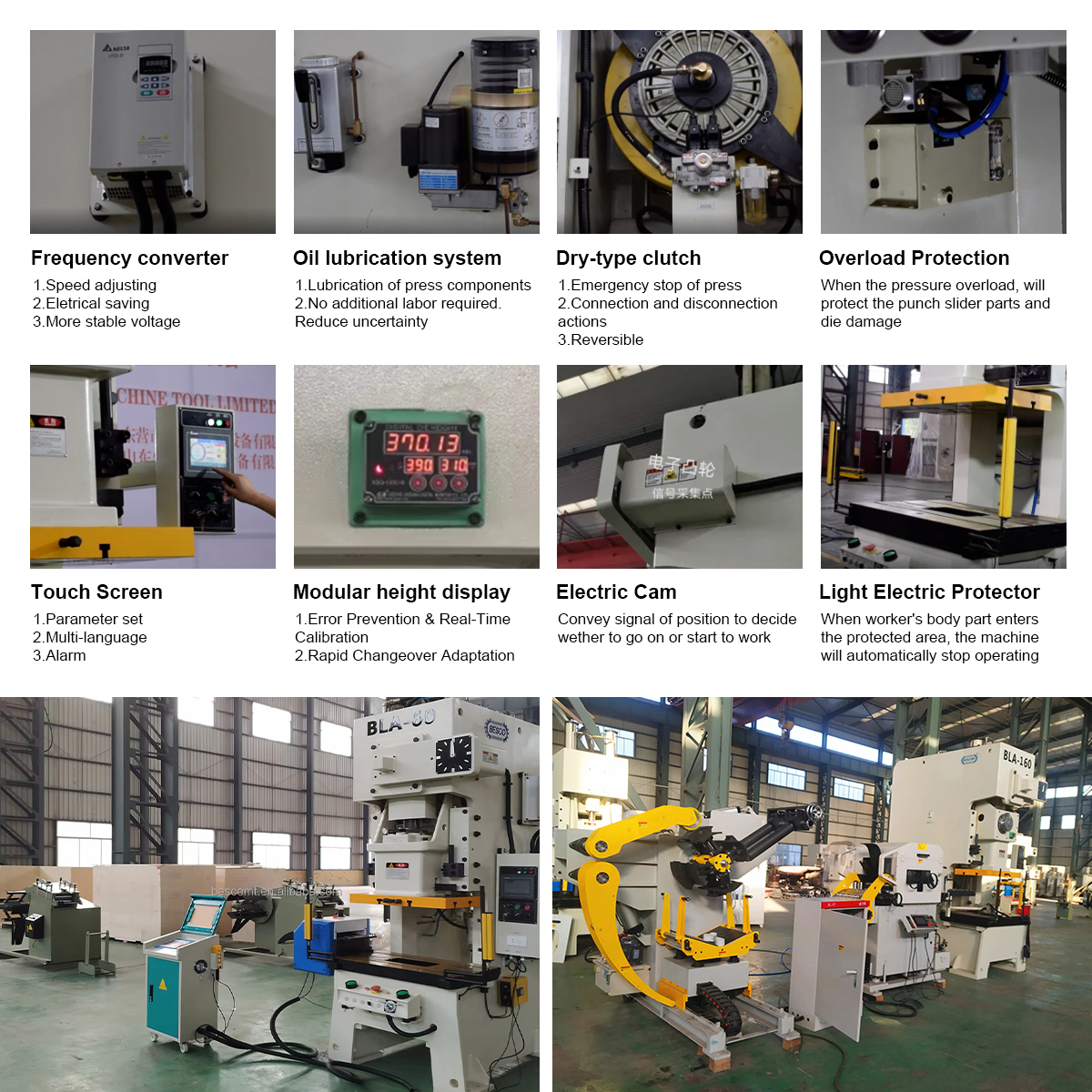

★Used reliable high intensity cluch/brake and twin electromagnetic vale,overloading protector can guarantee safe production all around

Optlonal one:

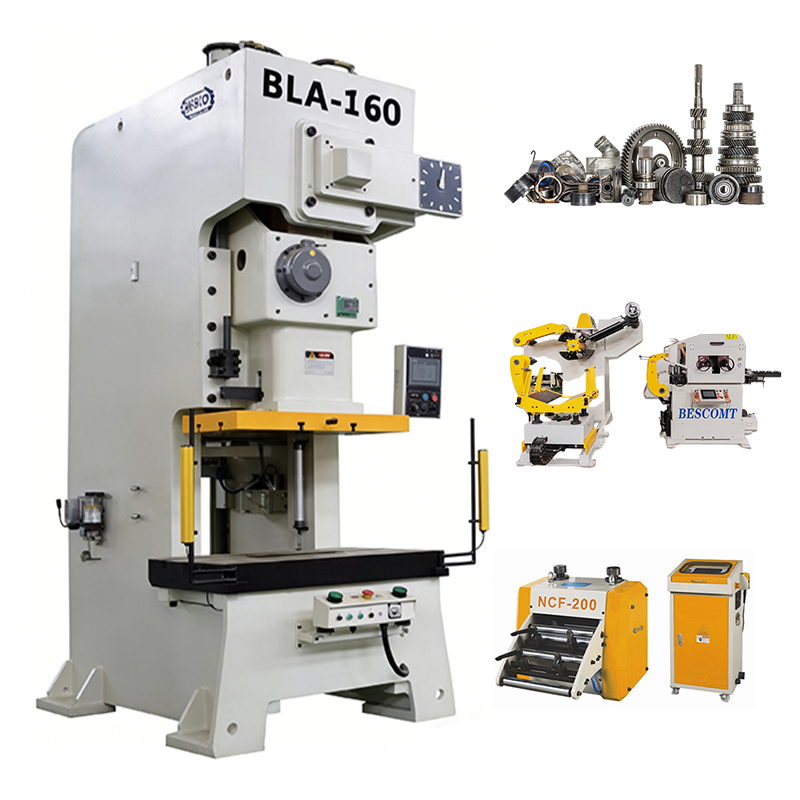

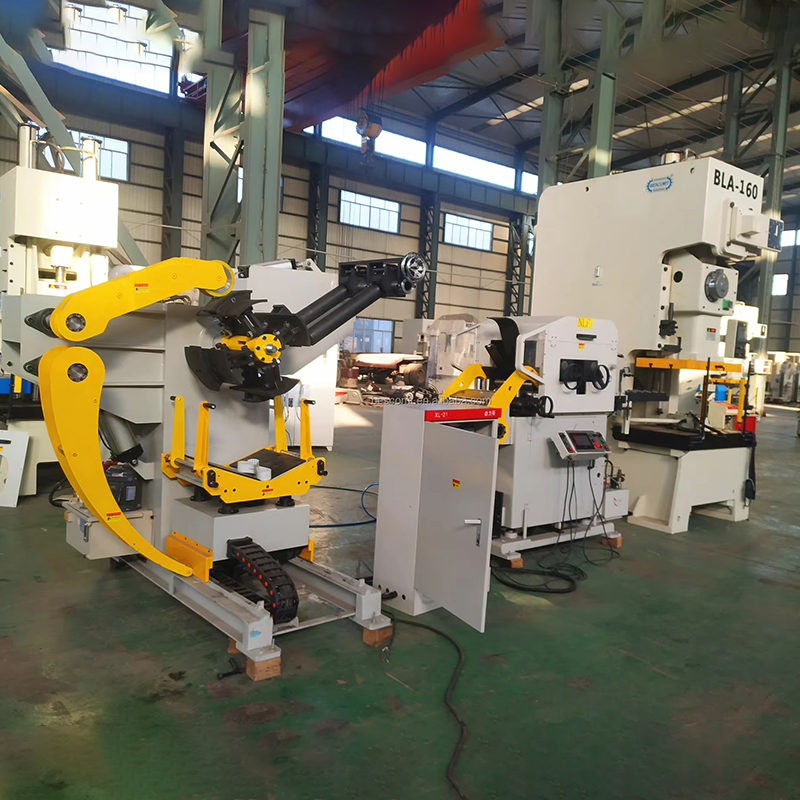

Production line = BLA punch machine + progressive die for Car parts/auto parts/Automobile panel + auto feeding(2 in 1feeder+NC servo feeder) +cap rolling machine

Optional two:

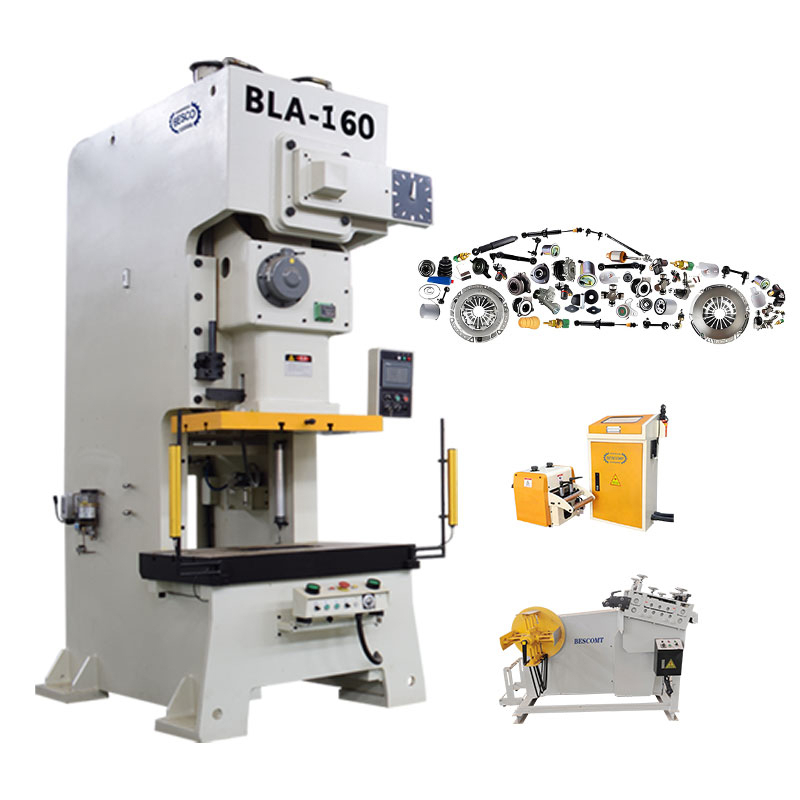

Production line = BLA punch machine + progressive die for Car parts/auto parts/Automobile panel+ auto feeding(3 in 1 feeder) +cap rolling machine

sheet metal stamping part car metal parts making machine auto parts Punching machine servo feeder for stamping line decoiler and leveler machine metal stamping parts quick die change stamping press stamped metal parts automotive bracket manufacturing line

Related Products

content is empty!

BLA single point open type power press(BLA-110T~BLA-315T)
Specification	Unit	BLA-110	BLA-160	BLA-200	BLA-260	BLA-315
Capacity	Ton	110	160	200	260	315
Rate tonnage point	mm	6	6	6	7	8
Speed changing	s.p.m	30-60	20-50	20-50	20-40	20-40
Stable speed	s.p.m	50	35	35	30	30
Stroke	mm	180	200	200	250	250
Die height	mm	360	460	460	500	500
Slide adjustment	mm	80	100	110	120	120
Slide area	mm	91047080	99055090	113063090	1250700100	1250750100
Bolster area	mm	1150600110	1250800140	1400820160	1500840180	1600860190
Shan hole	mm	Φ50	Φ65	Φ65	Φ65	Φ65
Main motor	kw.p	11*4	15*4	18.5*4	22*4	30*4
Slide adjust device	HP	electrical driving
Air pressure	kg/c m²	6	6	6	6	6
Presses precision		GB/JIS 1 class
Presses dimension	mm	1900130032 00	2300140038 00	2615169040 75	2780185044 70	2910195045 00
Presses weight	Ton	9.6	16	23	32	35
Die cushion capacity	Ton	6.3	10	14	14	14
Stroke	mm	80	80	100	100	1000
Die cushion effective area	mm²	500*350	650*420	710*480	710*480	710*480
