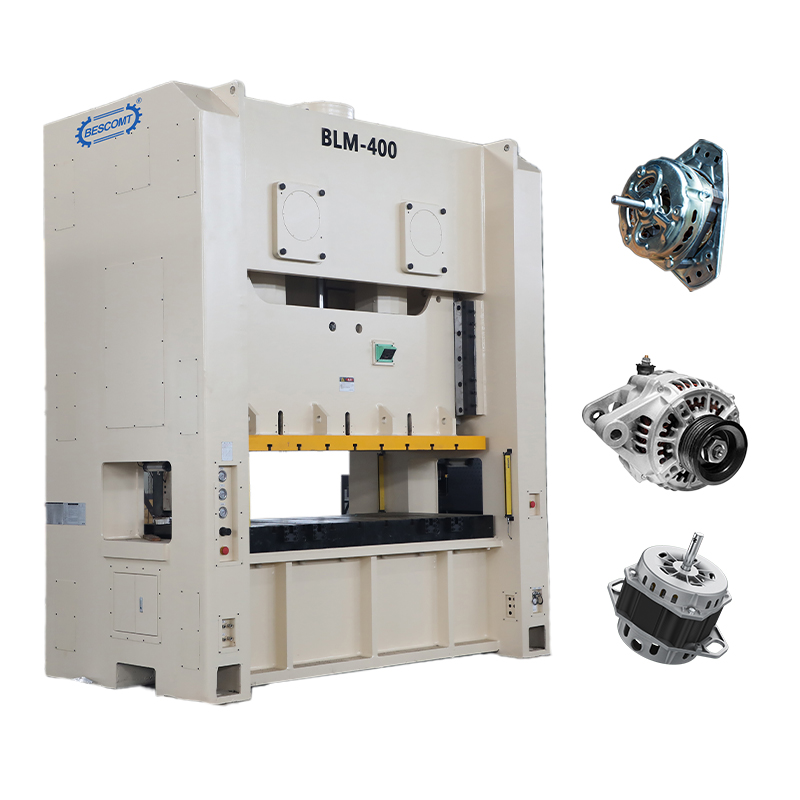

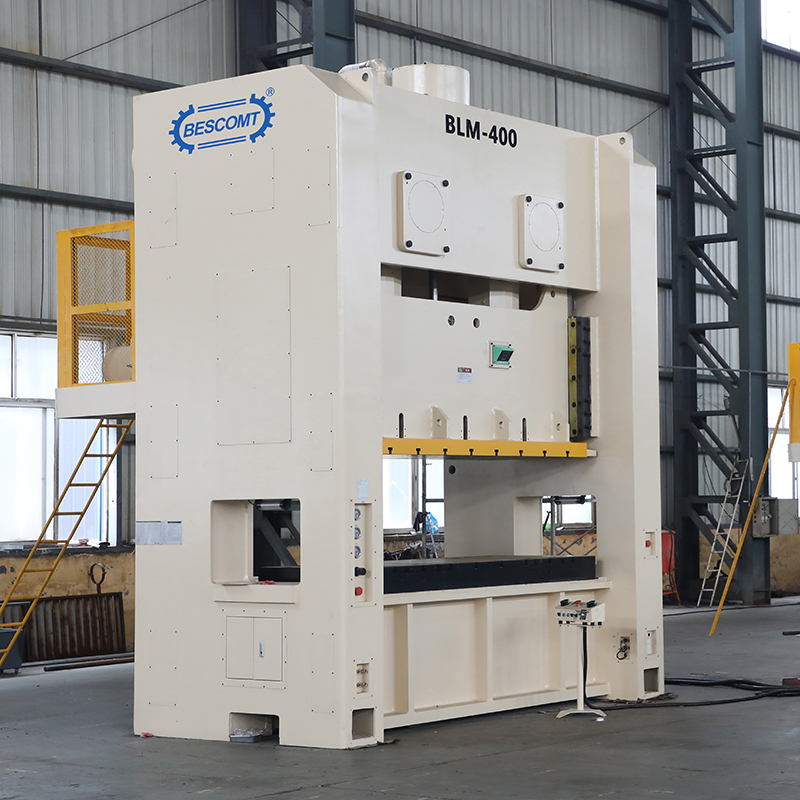

Automatic Motor Cover Stamping Production Line | BLM Pneumatic Press with Decoiler, Feeder & Die
Automatic Motor Cover Stamping Production Line | BLM Pneumatic Press with Decoiler, Feeder & Die Automatic Motor Cover Stamping Production Line | BLM Pneumatic Press with Decoiler, Feeder & Die
Automatic Motor Cover Stamping Production Line | BLM Pneumatic Press with Decoiler, Feeder & Die Automatic Motor Cover Stamping Production Line | BLM Pneumatic Press with Decoiler, Feeder & Die
Automatic Motor Cover Stamping Production Line | BLM Pneumatic Press with Decoiler, Feeder & Die Automatic Motor Cover Stamping Production Line | BLM Pneumatic Press with Decoiler, Feeder & Die

loading

Automatic Motor Cover Stamping Production Line | BLM Pneumatic Press with Decoiler, Feeder & Die

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

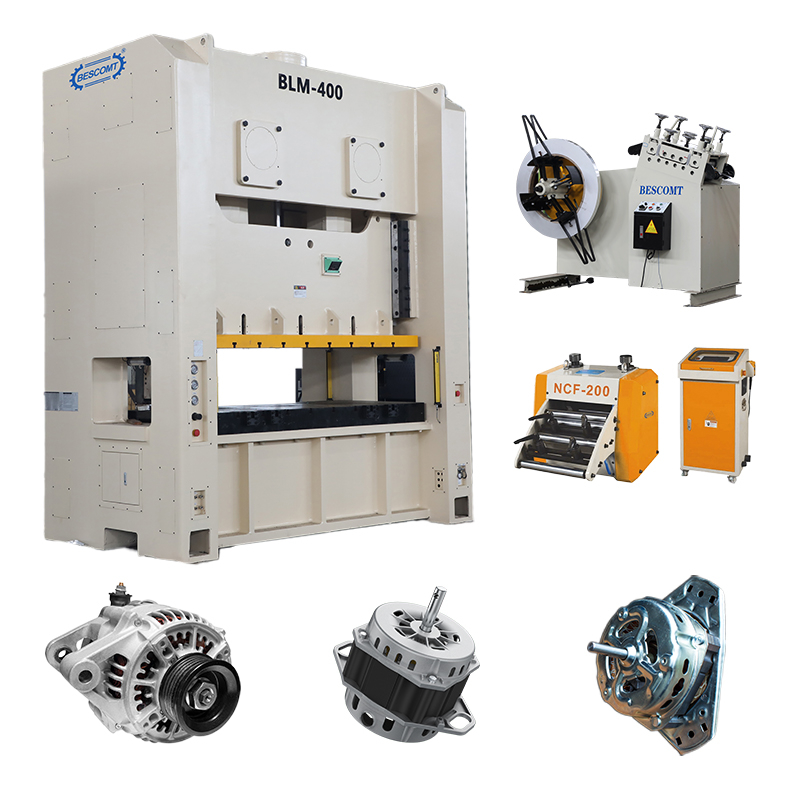

Introducing the Motor Cover Making Machine – not just a single press, but a ready-to-run automatic stamping line specifically engineered for the high-volume production of metal motor covers and housings. This turnkey system seamlessly combines a robust BLM pneumatic punch press, a high-accuracy servo feeder, and a space-saving decoiler and leveler machine into one cohesive unit. Achieve consistent quality, maximize throughput, and minimize manual handling from coil to finished part.
  • BLM

  • BESCOMT

Availability:
Quantity:


Product Description

In modern home appliance manufacturing, the production efficiency and quality of key components fundamentally determine the market position of the final product. Our complete production line for high-end washing machine end covers is designed to meet this core challenge.


Integrating advanced processes with intelligent control, this line focuses on delivering the stringent structural strength, sealing performance, and assembly precision required for washing machine end covers. It provides stable and efficient manufacturing support for both large-scale standardized production and flexible small-batch customization, helping businesses optimize processes, control overall costs, and respond swiftly to market dynamics.

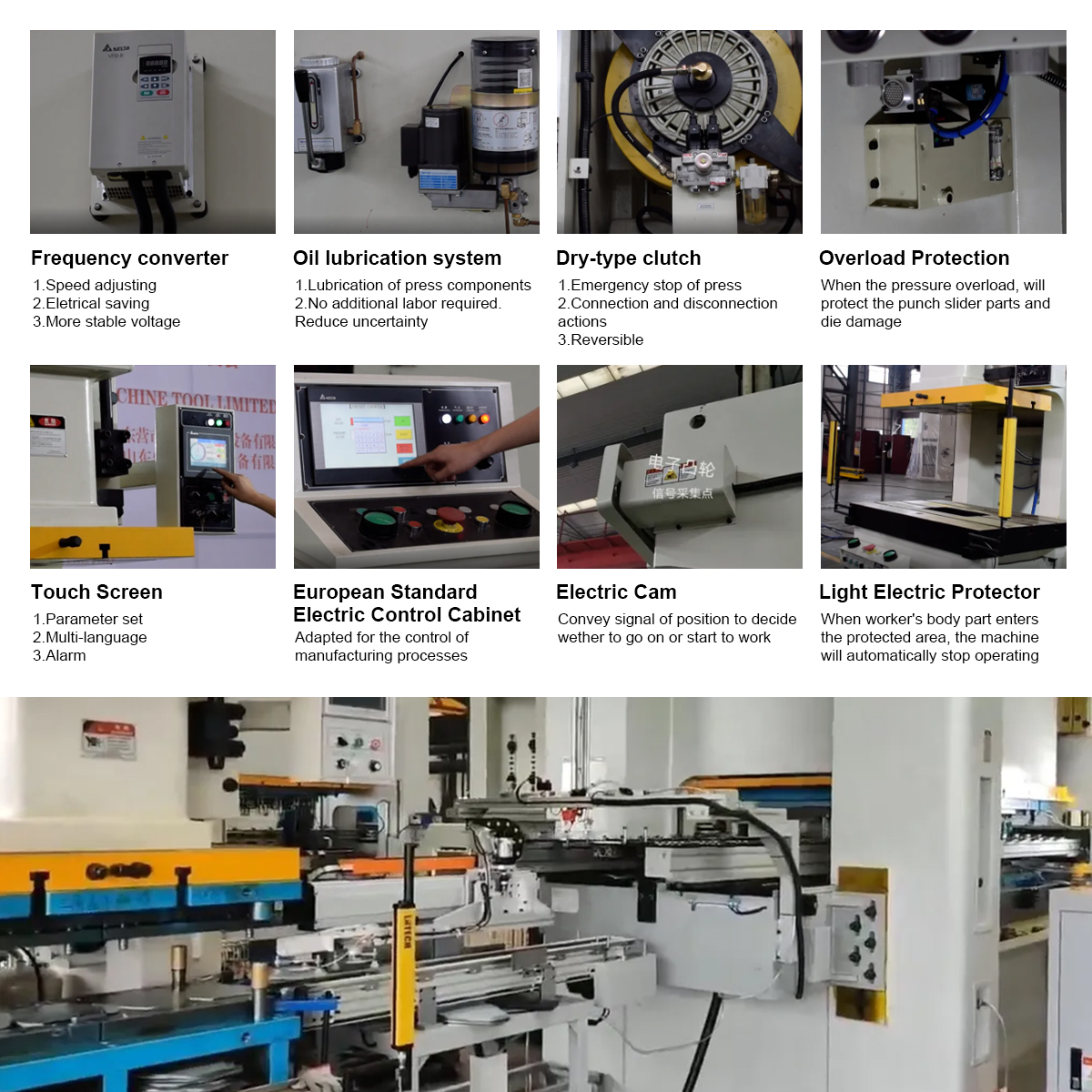

Product Advantage

图片2图片3

Applicable industries

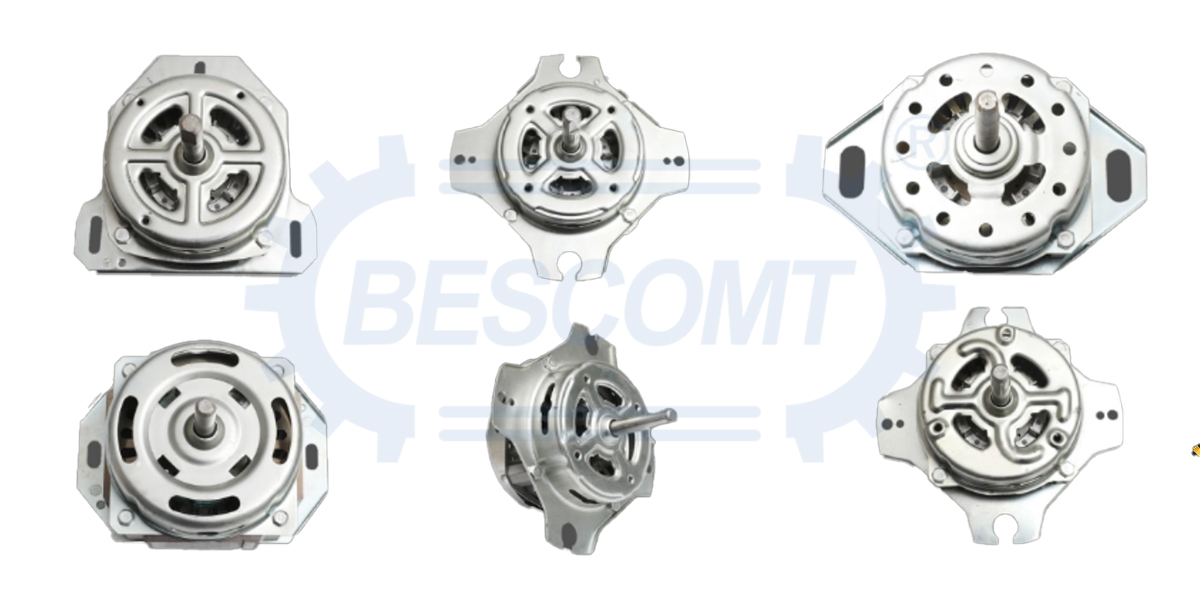

Washing Machine Industry: Components such as end covers, bases, and drain valve covers for front-loading and pulsator washing machines.

Other Home Appliance Manufacturing: Metal structural parts such as refrigerator door covers and air conditioner housing components.

Industrial Equipment and General Components: Protective covers, sealing covers, and connectors for various industrial machinery, meeting the standardization and customization needs of diverse industries.



NAME UNIT BLM-110 BLM-160 BLM-200 BLM-300 BLM-400 BLM-500 BLM-630
Capacity Ton 110 160 200 300 400 500 630
Stroke mm 180 180 250 280 300 300 300
Stroke Frequency spm 50 40 35 30 30 20 15
Die Height mm 400 450 500 550 550 600 600
Slide Adjustmen mm 100 100 120 120 120 150 200
Slide area mm 1400*550 1600*650 1850*750 2400*900 2620*1100 3200*1200 3740*1300
Bolster area mm 1550*750 1800*760 2200*940 2500*1000 2700*1100 3400*1200 4000*1400
Slide Opening mm 600*350 700*450 900*600 900*600 900*600 1000*700 1000*700
Main Motor kw.p 11*4 15*4 18.5*4 30*4 37*4 55*4 75*4
Precision GB/JIS I Grade
size(L*W*H) mm 2188*2280*3180 2309*2590*3682 2523*3000*3195 2899*3600*4729 3225*3800*5150 3655*4500*5150 3955*5100*5971
