1.Product Introduction：
25-400 Ton Automatic Eyelet Power Press Punching Machine for Metal.
BLA single point open type power press
Pneumatic punch presses use the high-pressure gas produced by compressors to force metal into molds for wafer processing,stamping, embossing, etc.

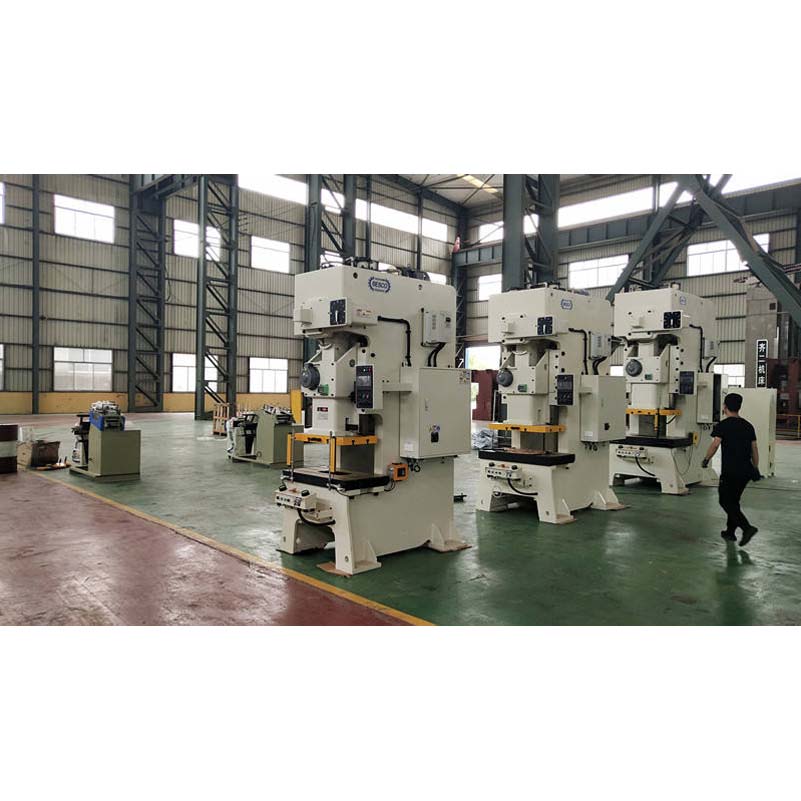

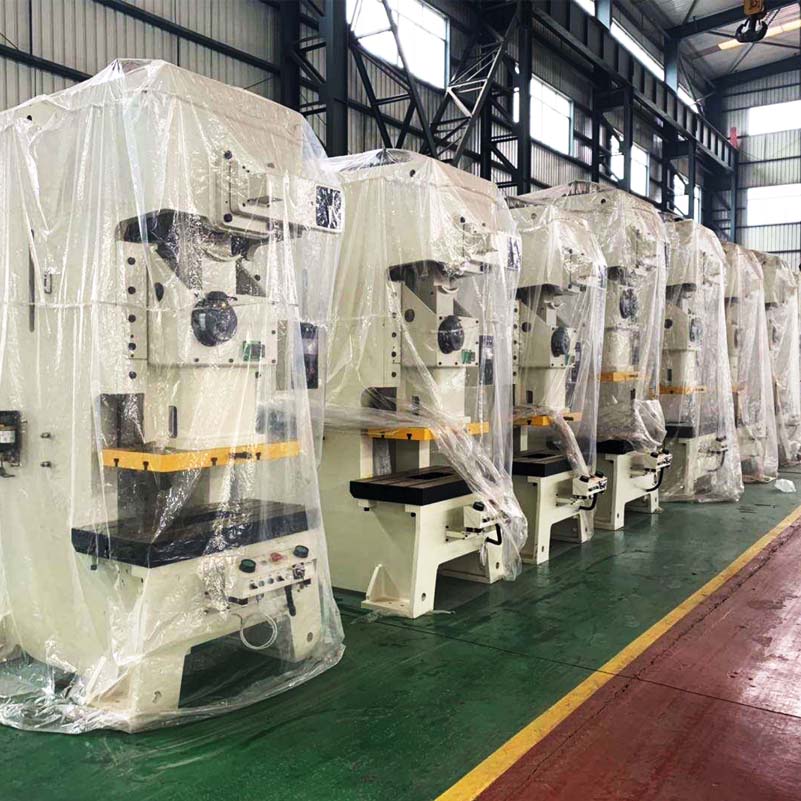

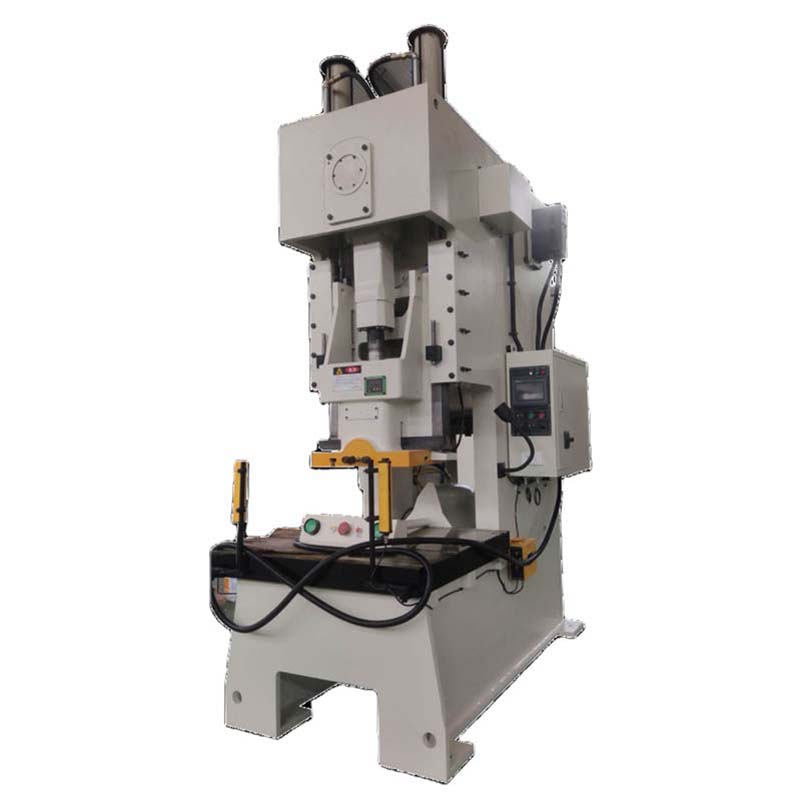

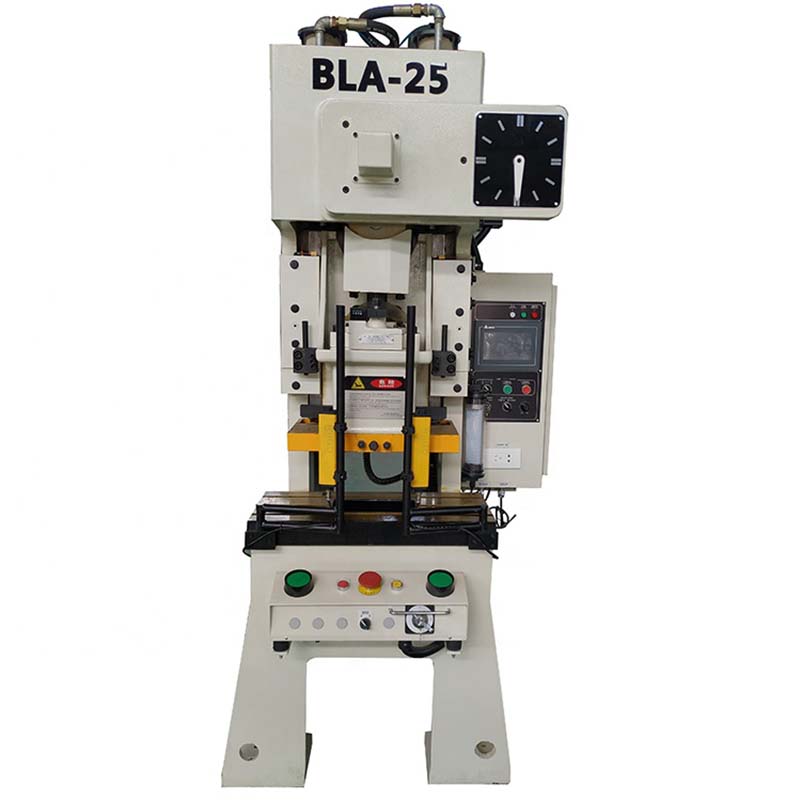

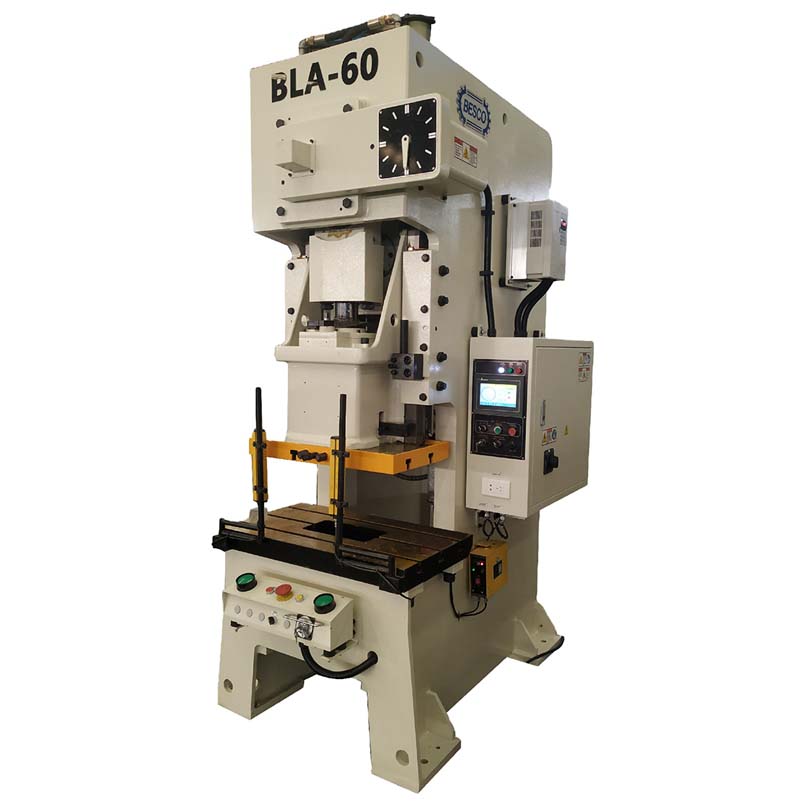

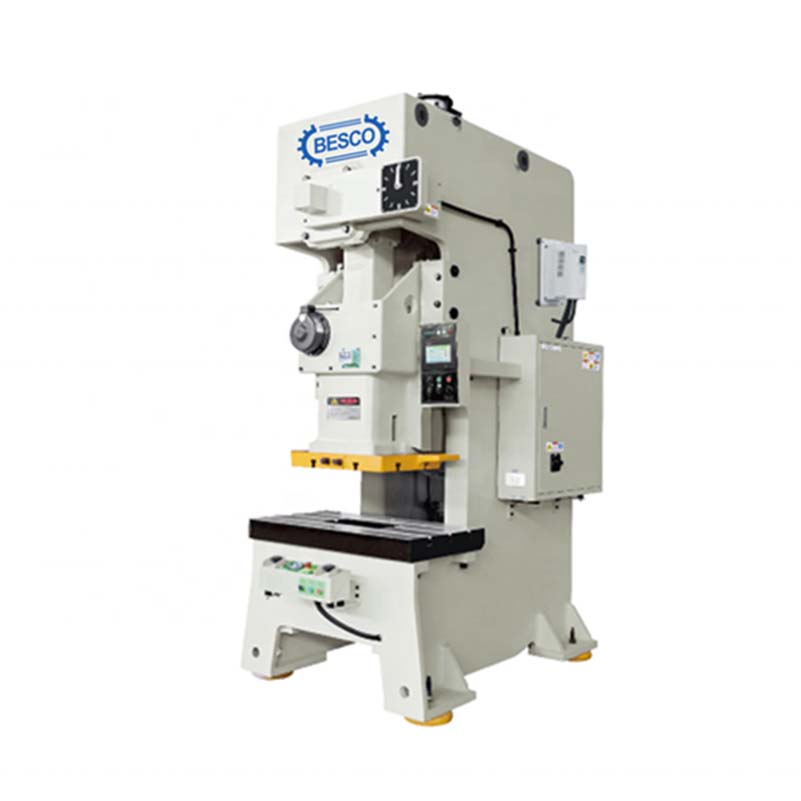

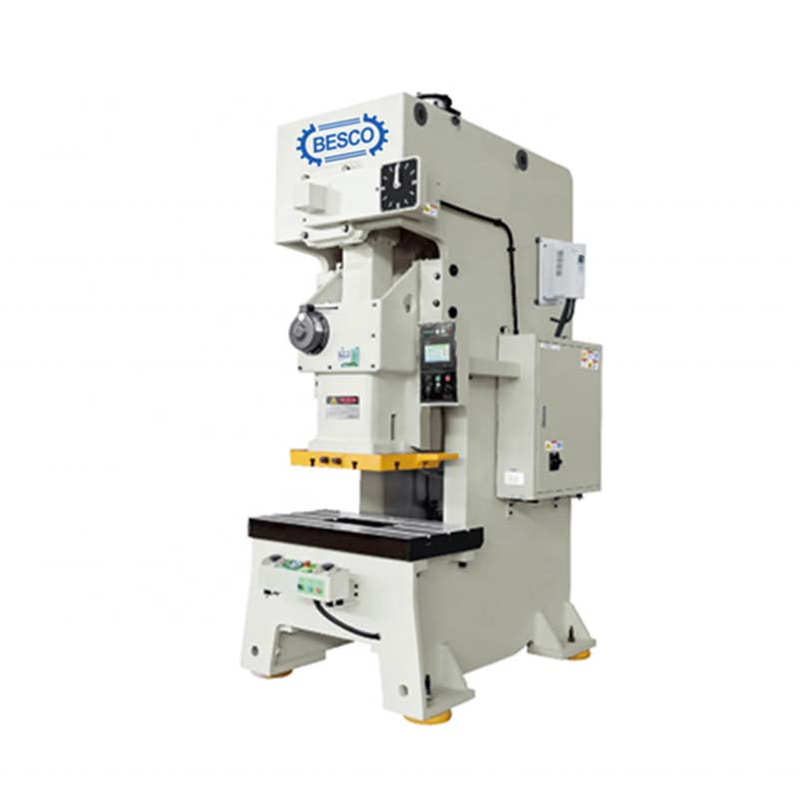

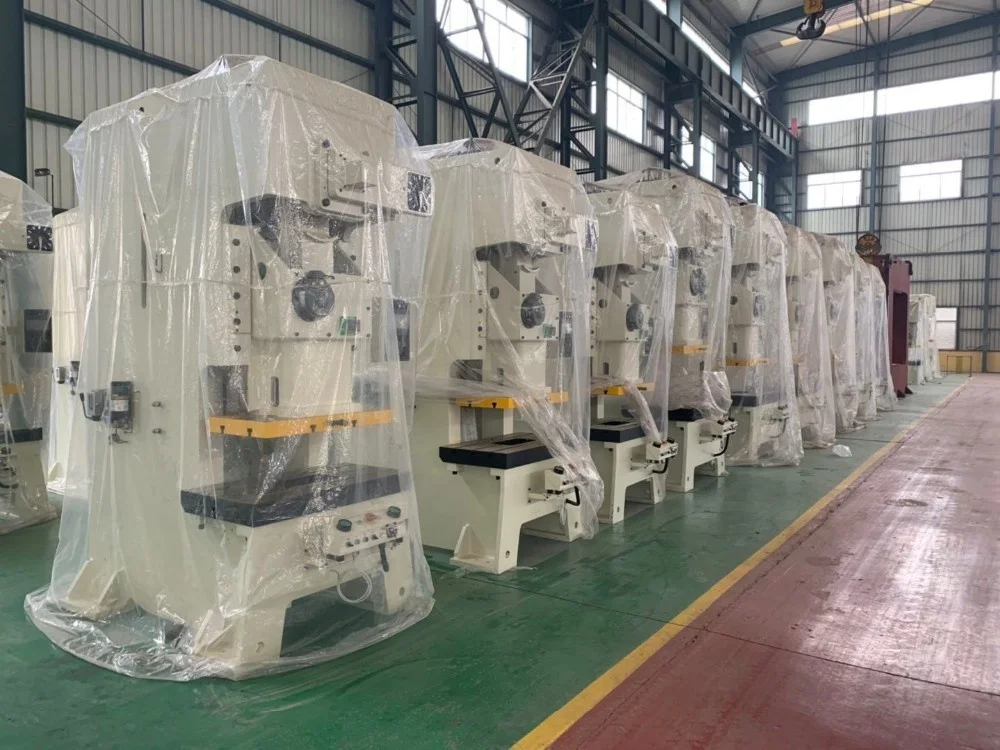

2.Photo Shows:
| Argument Table | |||||||||
| Model | Unit | BLA-25 | BLA-45 | BLA-60 | BLA-80 | BLA-125 | BLA-160 | BLA-200 | BLA-250 |
| Nominal Pressure | kn | 250 | 450 | 600 | 800 | 1250 | 1600 | 2000 | 2500 |
| Nominal Pressure Stroke | mm | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Slide Stroke | mm | 80 | 120 | 140 | 160 | 180 | 200 | 180 | 250 |
| Stroke Frequency | /min | 100 | 80 | 70 | 60 | 50 | 45 | 35 | 40 |
| Max Die Height | mm | 250 | 270 | 300 | 320 | 350 | 400 | 390 | 500 |
| Die height adjustment | mm | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Throat hole Distance | mm | 210 | 225 | 270 | 310 | 350 | 390 | 390 | 450 |
| Distance Between uprights | mm | 450 | 500 | 560 | 620 | 660 | 720 | 870 | 980 |
| Bloster Thickness | mm | 80 | 110 | 130 | 140 | 155 | 160 | 160 | 190 |
| Blanking hole size | mm | 150 | 150 | 150 | 150 | 160 | 180 | 300 | 200 |
| Motor Power | kw | 2.2 | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Worktable Distance | mm | 780 | 800 | 900 | 900 | 900 | 900 | 900 | 1000 |
| Weight | kg | 2700 | 3800 | 5300 | 6600 | 10500 | 12800 | 18000 | 23900 |
4.Application Fields:
The application fields are wide, such as: bolts and nuts, door and window hinges, precision electronic components, computercases, eyelet, All can be produced by BLA with mold.
5.Finshed Products:
