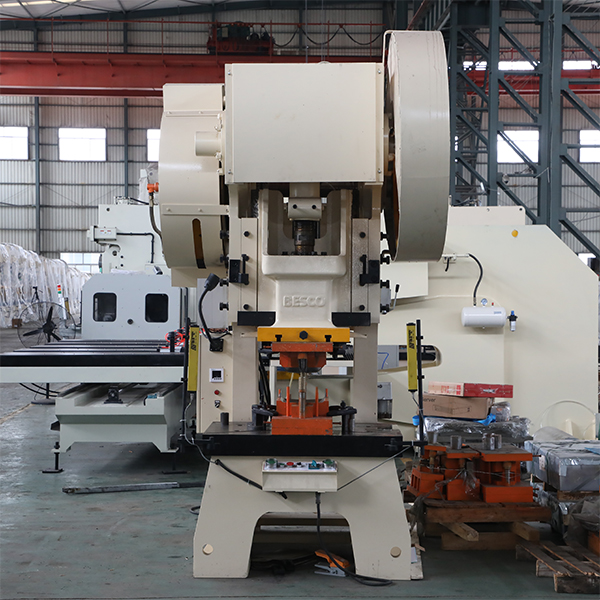

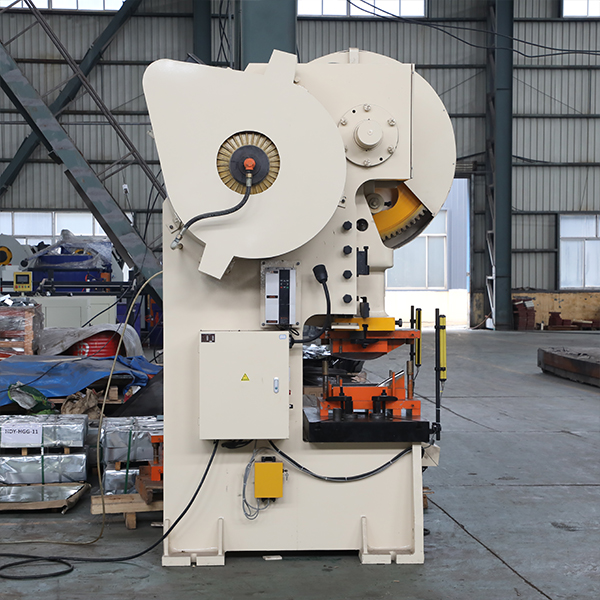

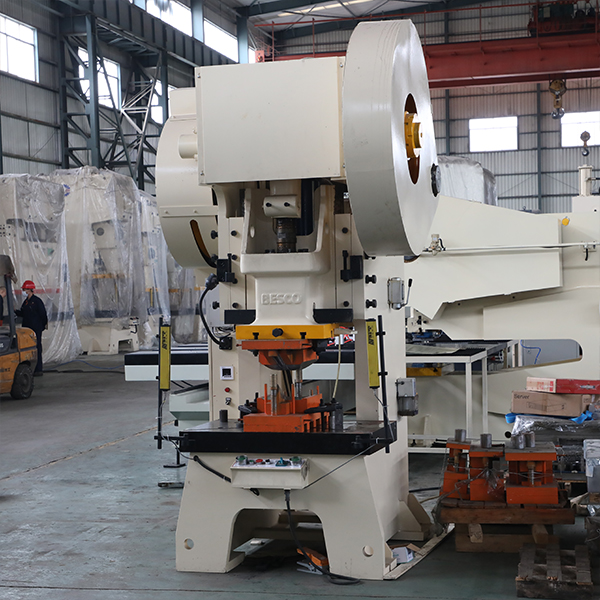

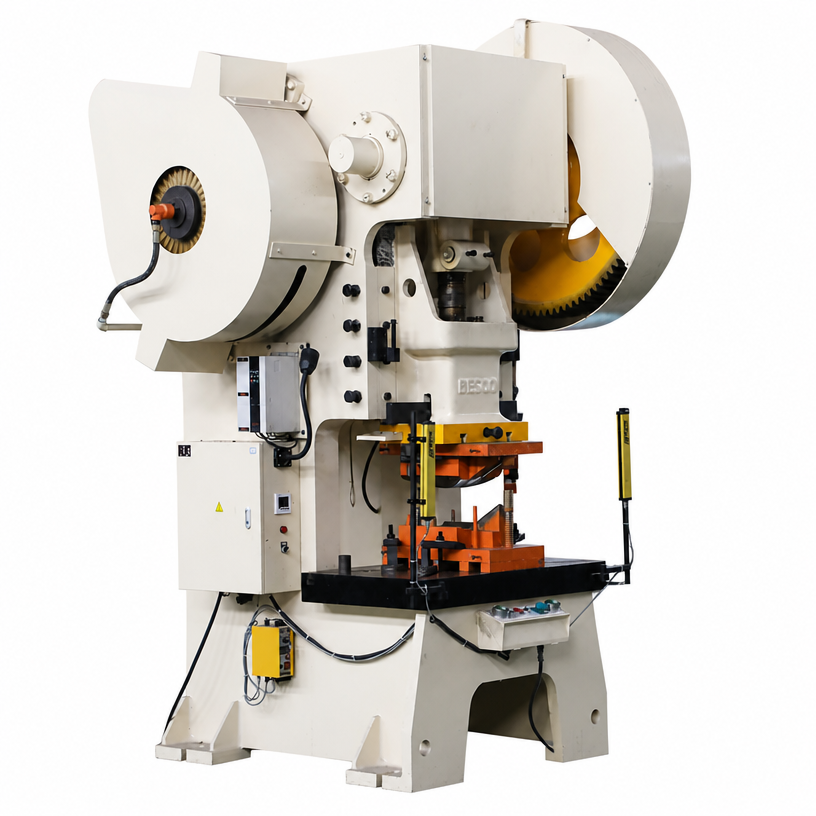

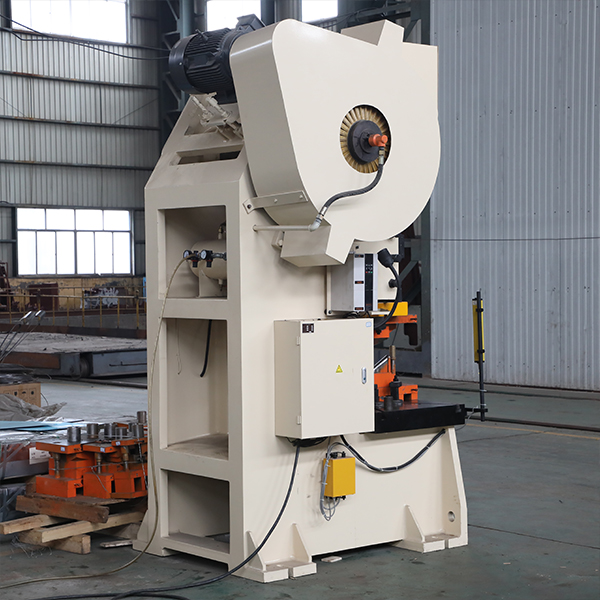

The BESCO J21 mechanical press with pneumatic clutch is engineered for manufacturers who demand consistent, high-volume metal stamping performance. Available from 63 tons to 200 tons, this open-back inclinable (OBI) C-frame punch press combines proven mechanical drive technology with precision pneumatic clutch control — delivering fast cycle speeds, reliable engagement, and long service life across blanking, forming, piercing, and drawing operations.
Whether you're producing automotive components, hardware fasteners, electrical enclosures, or consumer appliance parts, the J21 series provides the power-to-footprint efficiency your production floor needs.
Built for Global Production Standards
BESCO Machine Tool Limited is a China-based manufacturer specializing in metal stamping production equipment, with products exported to North America, Europe, South America, the Middle East, Southeast Asia, and beyond. Every J21 press leaves the factory test-run commissioned and inspected — so you receive a production-ready machine.
Key Competitive Advantages:
✅ Siemens Drive System — Industry-trusted motor and electrical components for reliable long-term operation
✅ Pneumatic Clutch & Brake System — Smooth engagement/disengagement at speed, reduced mechanical shock, operator safety
✅ Safety Light Curtain (Standard) — Meets international operator-safety requirements out of the box
✅ Frequency Converter (VFD) — Energy efficiency + speed adjustment without motor replacement
✅ Rectangular Hexahedral Guide Rails — High-precision slide guidance for consistent stroke accuracy
✅ Double-Hand Operation Panel — Anti-tie-down safety compliance
✅ Crack-Down Protective Device — Overload protection to prevent tooling and press damage
✅ CE-Ready Configuration — Designed to meet international safety standards
Parameter | J21-63T | J21-125T | J21-160T | J21-200T |
|---|---|---|---|---|
Nominal Capacity | 630 kN | 1,250 kN | 1,600 kN | 2,000 kN |
Nominal Stroke | 6 mm | 7 mm | 8 mm | — |
Slide Stroke | 110 mm | 150 mm | 160 mm | — |
Strokes Per Minute | 45 SPM | 38 SPM | 28 SPM | — |
Max Die Set Height | 360 mm | 500 mm | 400 mm | — |
Die Height Adjustment | 80 mm | 100 mm | 120 mm | — |
Throat Depth | 260 mm | 390 mm | 390 mm | — |
Distance Between Uprights | 350 mm | 550 mm | 580 mm | — |
Bolster Area | 760×480 mm | 1,090×720 mm | 1,140×740 mm | — |
Blanking Hole Diameter | 180 mm | 240 mm | 250 mm | — |
Machine Dimensions (L×W×H) | 1810×1350×2740 mm | 2300×1500×3000 mm | 2100×1700×3400 mm | — |
Motor Power | 5.5 kW | 11 kW | 15 kW | — |
Electrical & Control:
Siemens Motor
Siemens / Omron Electrical Parts Cabinet
Double-Hand Operation Panel
Frequency Converter (VFD)
Safety:
Safety Light Curtain
Crack-Down Type Protective Device
Pneumatic Clutch & Brake System
Mechanical:
Rectangular Hexahedral Guide Rails
Turn-Key Type Rigid/Pneumatic Clutch (model-specific)
Optional Upgrades:
Slide Block Balance Device
Die Electric Adjustment Device
Auto-Feeder Integration (coil feeder / NC servo feeder)
Pneumatic Die Cushion
The J21 C-frame mechanical press is used across a wide range of industries and stamping operations:
Blanking & Punching — Sheet metal cutouts, washers, brackets
Drawing & Forming — Automotive stampings, enclosure shells, hardware bodies
Piercing — Hole punching in steel, aluminum, and stainless coils
Bending & Coining — Precision forming of clips, terminals, and connectors
Progressive Die Stamping — High-volume continuous production when paired with NC servo feeders
Industries Served: Automotive | Home Appliances | Electronics | Construction Hardware | Agricultural Equipment | Fastener Manufacturing
BESCO Machine Tool Limited is headquartered in Dongying, Shandong Province, with a branch factory in Zibo City. The company integrates R&D, manufacturing, and global sales of forging and stamping equipment.
Global Export Footprint: Products reach North America, Europe, South America, the Middle East, South Asia, Southeast Asia, and Central Asia
ODM Capability: Custom press configurations available based on your drawings or sample parts
After-Sales Support: Engineers available for overseas on-site installation; fault response within 4–6 hours of notification
Warranty: Manufacturer warranty on mechanical parts; lifelong paid maintenance support after warranty period
CE-Oriented Design: Built to international safety standards for global deployment
What is the difference between a rigid clutch and a pneumatic clutch on a mechanical press?
A rigid clutch engages the flywheel and crankshaft mechanically, completing one full stroke per engagement. A pneumatic clutch uses compressed air to engage and disengage at any point in the stroke cycle — enabling mid-stroke stopping and faster safety response. Required for two-hand anti-tie-down systems and higher-stroke-rate applications.
What materials can the J21 press stamp?
The J21 series handles mild steel, high-strength steel, stainless steel, aluminum, copper, and non-ferrous alloys — subject to material thickness and tonnage selection.
Can the J21 press be integrated with an automatic feeder?
Yes. The J21 is compatible with NC servo feeders, decoilers, and straighteners. BESCO offers integrated stamping production line solutions including coil feeding, leveling, and finished-part stacking.
What power supply is required?
Standard configuration: 380V, 50Hz, 3-phase. Other voltages (220V, 415V, 460V) available on request for export markets.
What is the delivery time?
Contact BESCO directly for the current production schedule. Standard export packaging for sea transport is included.
