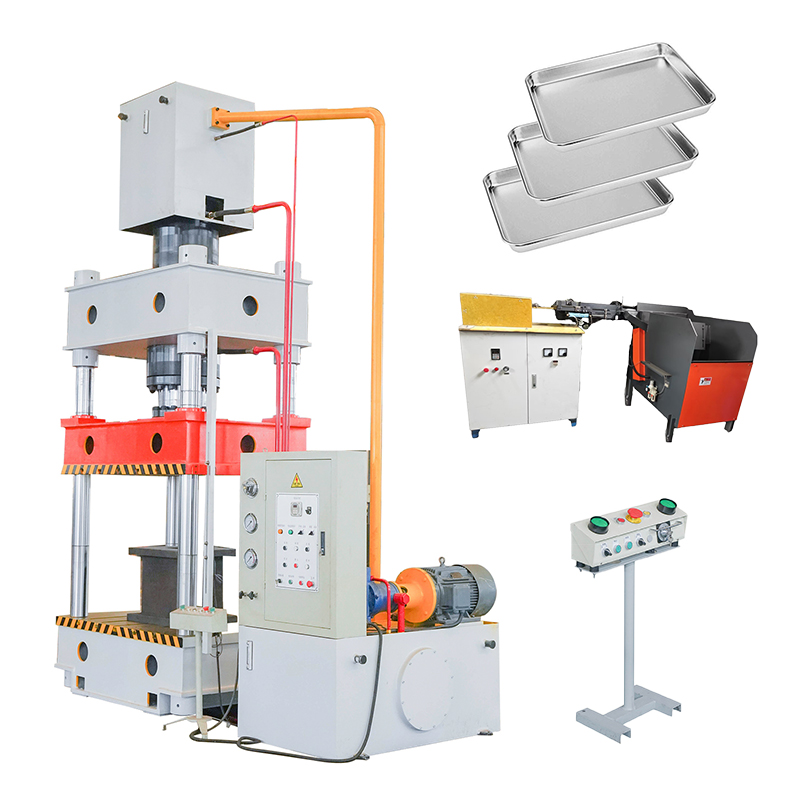

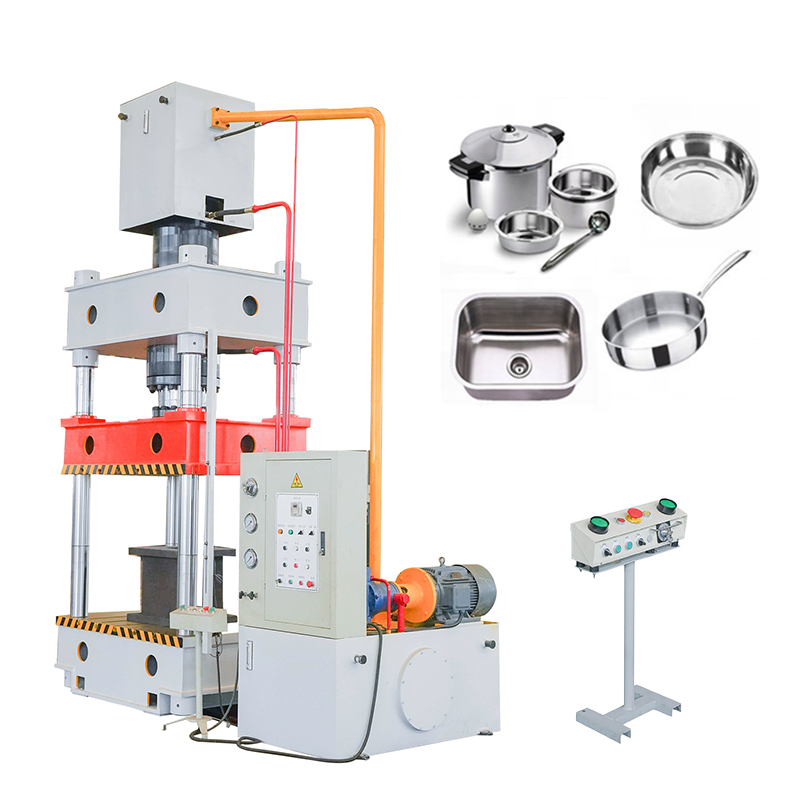

·The four-column structure is fabricated from high-strength round steel. The columns undergo surface hardening via high-frequency quenching, followed by precision grinding and electroplating, ensuring superior wear resistance.

·It features high production efficiency, facilitated by the rapid descent speed of the moving crossbeam.

·Key parameters including pressure, stroke, and dwell time are adjustable to meet specific processing requirements.

·The press is equipped with a PLC-based control system and a user-friendly touchscreen interface, ensuring straightforward and convenient operation.

·Available optional accessories include a safety guard, LED work lights, and an infrared safety light curtain.

PRODUCT FEATURES

·The series hydraulic machine adopts PLC electrical control system, with three operation modes of automatic adjustment, manual adjustment, and semi-automatic adjustment, which can achieve two process modes: constant pressure and constant stroke. When forming a base with constant pressure, there are pressure holding delay and automatic return actions during pressing. An ejection device is installed in the middle of the workbench, whichd can also be used as a hydraulic pad for the molding process of stretching parts, in addition to ejecting products. Its working pressure and stroke can be determined according to process requirements, It can be adjusted within the specified range.

·This series of hydraulic presses have a wide range of versatility and are suitable for stretching, bending, flanging, cold extrusion, blanking, and other processes of various metal materials. They are also suitable for correction, press mounting, powder products, abrasive products, grinding wheels, bakelite, numerical thermosetting product molding, and the pressing and molding of plastic products and insulating materials.
