Selecting the wrong press frame architecture carries hidden penalties for your manufacturing floor. Plant managers often face accelerated die wear, rejected parts due to angular deflection, and severe production bottlenecks when machinery mismatches the application. You must balance tooling accessibility and a compact footprint against the demand for high rigidity and automated progressive stamping. Choosing between a C-frame vs H-frame press requires strict evaluation of your specific production parameters. You have to analyze tonnage requirements, off-center loading conditions, die complexity, and safety protocols before making a capital investment. This guide breaks down the structural differences, mechanical behaviors, and application suitability of both press types. You will learn how to evaluate deflection risks, match frame styles to production volumes, and specify the exact machinery needed to optimize your stamping operations.
Structural Integrity: H-frame presses (closed type) offer superior rigidity and eliminate angular deflection, making them mandatory for high-precision and progressive die operations.
Operational Accessibility: C-frame presses (open type) provide three-sided access, ideal for manual feeding, frequent die changeovers, and secondary operations.
Tooling Lifespan: The symmetrical load distribution of an H-frame significantly extends die life compared to a C-frame operating near its maximum tonnage.
Safety and Footprint: While C-frames require less floor space, their open design demands rigorous point-of-operation guarding (like light curtains), whereas H-frames are easier to fully enclose for noise and safety compliance.
Cost-to-Performance Ratio: While C-frames have a lower initial procurement cost, H-frames often yield a better long-term ROI in high-volume production due to reduced maintenance and lower scrap rates.

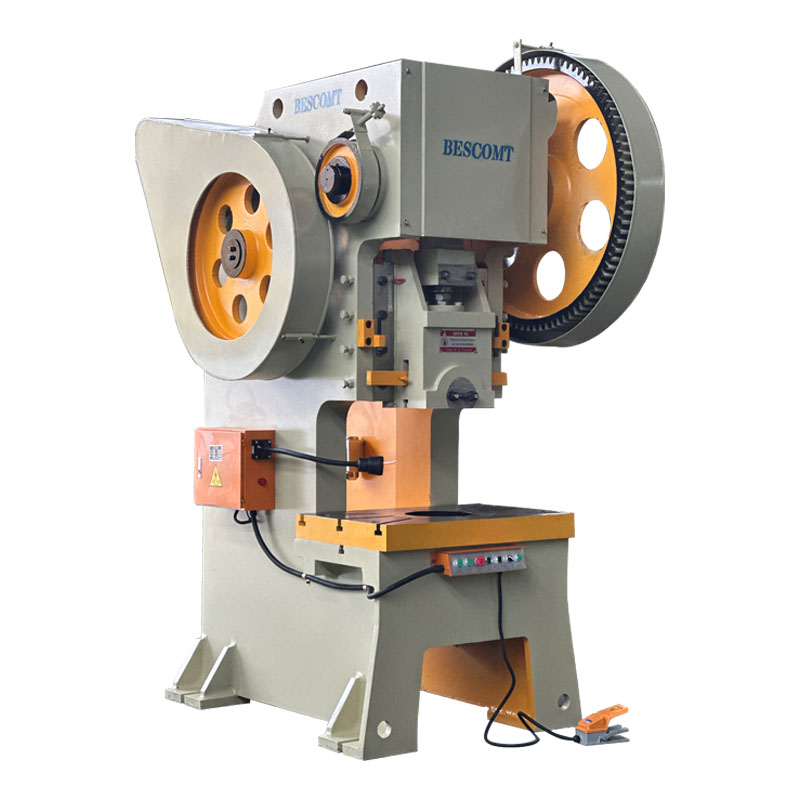

The gap-frame architecture defines the traditional C-frame punch press. Manufacturers cast or weld the main body into a distinct "C" shape. This design leaves the front and both sides of the die space completely open. Operators gain unobstructed access to the tooling area. This open geometry dictates how the machine handles mechanical stress. When the ram strikes the workpiece, the stamping force travels through the frame. Because the front remains unsupported, the upper section of the "C" naturally wants to bend backward. Engineers refer to this phenomenon as yaw or spring-back.
An open type mechanical press remains highly vulnerable to this angular deflection under heavy loads. Standard tonnage ranges for these machines typically fall between 20 and 300 tons. Drive mechanisms vary based on application speed and force requirements. Flywheel drives suit high-speed, lighter-tonnage blanking. Geared drives provide slower, more powerful strokes for drawing or heavy piercing. These presses require a relatively small shop-floor footprint. You can place them close together in secondary operation lines. The inherent structural limits restrict their use in ultra-high precision stamping.
The throat depth of the C-frame acts as a lever arm during the stamping stroke. The deeper the throat, the more pronounced the angular deflection becomes under peak tonnage. When stamping thick materials, this deflection alters the punch-to-die clearance dynamically. A clearance designed for 10% of material thickness can shift to 5% on one side and 15% on the other, causing severe burring and rapid tooling degradation.
The straight-side architecture forms the foundation of the H-frame punch press. This design features four vertical pillars or columns that completely enclose the die space. The crown, bed, and side uprights create a continuous, closed-loop structure. When the ram engages the material, the four pillars absorb the vertical forces symmetrically. This symmetrical absorption prevents the angular deflection that plagues open frames. The ram travels strictly up and down, maintaining perfect parallelism with the bolster plate throughout the entire stroke.
A closed type precision press comes in several structural variations. Mono-block frames consist of a single, massive welded or cast structure. They offer extreme rigidity for mid-range tonnages. Multi-piece tie-rod frames dominate the heavy-duty sector. These designs use massive steel tie-rods to pre-tension the crown, uprights, and bed together. Builders heat the tie-rods, tighten the nuts, and let the steel cool and shrink, clamping the frame components under immense pressure. This pre-tensioning allows the frame to withstand massive snap-through forces during heavy blanking.
The closed design makes these presses mandatory for complex, multi-station progressive dies where tooling alignment remains critical. The wide bed accommodates long dies, and the multi-point suspension systems ensure the ram does not tip or twist when forces shift off-center during the progressive stamping sequence.
Frame rigidity directly dictates part precision. You must evaluate how each frame behaves under peak load. A C-frame experiences angular deflection. The gap physically opens up by fractions of a millimeter during the stamping stroke. This gaping causes the punch to enter the die at a slight angle. Misalignment creates uneven clearance between the cutting edges. You will see burrs on the stamped parts. Accelerated tool wear follows rapidly. Out-of-tolerance parts increase your scrap rate.
An H-frame delivers strictly vertical, minimal deflection. The four-pillar design resists lateral movement and angular shifting. The punch enters the die perfectly straight. This parallelism ensures uniform clearance around the entire perimeter of the cut. Tooling stays sharp much longer. You achieve tighter tolerances and cleaner edges. For components requiring strict dimensional accuracy, the rigidity of a closed frame remains non-negotiable.
Consider a real-world scenario punching a 50mm hole in 10-gauge stainless steel. The high shear strength of the stainless steel demands perfect punch entry. If a C-frame deflects even 0.05mm, the carbide punch will chip against the die matrix. The H-frame maintains the strict vertical path, preserving the expensive carbide tooling and ensuring a clean sheared edge on the stainless part.
Operational access heavily influences production efficiency. The C-frame provides unmatched three-sided access. Operators can easily manipulate bulky workpieces by hand. Frequent die changes happen quickly because technicians can slide tooling in from the front or sides. This open layout supports manual feeding operations and secondary forming tasks perfectly. Die setters can use standard forklifts to position tooling without navigating around massive steel uprights.
The H-frame restricts access to the front and rear windows between the uprights. Manual part manipulation becomes difficult and often unsafe. You must rely on automated coil feeding systems. Transfer mechanisms and standardized die-handling equipment become necessary. While this setup requires more initial engineering, it enables continuous, unattended production runs. You trade manual accessibility for automated throughput. Die changes on large straight-side presses often require specialized die carts or rolling bolster plates to move the heavy tooling into the enclosed envelope.
Progressive dies inherently create off-center loads. As the material moves through different stations, the cutting and forming forces shift away from the center of the ram. Station one might pierce a small pilot hole, while station four blanks the entire perimeter. A C-frame degrades rapidly under severe off-center loading. The unbalanced forces twist the ram, causing the gibs to wear prematurely. The frame cannot distribute these asymmetrical loads effectively.
An H-frame handles off-center loads safely. Multi-point suspension systems distribute the forces across a wide bed. Two-point or four-point connections between the drive mechanism and the ram ensure the slide remains parallel to the bed even when the load shifts to one side. The massive uprights and long gib guides resist the twisting motion. This structural capacity allows you to run long, complex progressive dies without destroying the press or the tooling.
Floor space costs money. C-frames offer a compact footprint. You can angle them, line them up, or move them easily as cell layouts change. Their open design creates significant safety challenges. You must install advanced light curtains, physical barrier guards, and two-hand controls to protect operators from the point of operation. The open sides invite accidental reach-ins if not properly guarded.
H-frames demand a larger, taller footprint. They often require specialized foundations or pits. Despite their size, they simplify safety compliance. You can easily integrate full acoustic and safety enclosures around the straight-side structure. Interlocked doors prevent access during operation. The closed design inherently restricts accidental reach-in, improving overall shop floor safety. Operators monitor the automated process through impact-resistant viewing windows rather than standing directly in the hazard zone.
High-speed blanking generates severe vibration and noise. The massive, symmetrical structure of an H-frame dampens operational vibration effectively. The heavy cast or fabricated components absorb the shock of snap-through forces. Snap-through occurs when the punch breaks through the material, instantly releasing the built-up tonnage. This dampening protects adjacent sensitive machinery and prevents the press from walking across the floor.
C-frames struggle with vibration control during heavy blanking. The open structure acts somewhat like a tuning fork, amplifying the shock. Acoustic differences become obvious on the shop floor. H-frames run quieter, especially when fitted with full enclosures. Frame choice directly impacts your facility's ambient noise levels and occupational health compliance. High vibration in open frames also loosens fasteners and degrades electrical components faster than in heavily dampened straight-side presses.
Technical Parameter | C-Frame Architecture | H-Frame Architecture |
|---|---|---|
Structural Design | Open front, gap-frame (C-shape) | Closed loop, straight-side (4 pillars) |
Deflection Profile | High risk of angular deflection (yaw) | Strictly vertical, minimal deflection |
Tooling Accessibility | Excellent (3-sided open access) | Restricted (front/rear windows only) |
Off-Center Load Handling | Poor; causes rapid gib and ram wear | Excellent; supported by wide bed and multi-point suspension |
Primary Feeding Method | Manual feeding, simple robotics | Automated coil lines, servo roll feeds, transfer systems |
Vibration & Shock Absorption | Low; amplifies snap-through shock | High; massive structure dampens heavy blanking shock |
Die Life Expectancy | Shorter due to dynamic misalignment | Significantly longer due to strict parallelism |
Floor Space Requirement | Compact, easy to relocate | Large, tall, often requires specialized foundations |
You should specify a C-frame when operational flexibility outranks absolute precision. These machines thrive in low-to-medium volume production environments. If your schedule requires frequent tooling changeovers, the open access saves hours of setup time. They handle single-station dies perfectly. Typical applications include basic blanking, piercing, bending, and shallow drawing operations where minor angular deflection does not compromise the final part.
Job shops and prototype development facilities rely heavily on these machines. Secondary operation lines often utilize banks of C-frames for sequential manual processing. If your parts have wide tolerances and your budget demands a lower initial investment, this architecture provides the necessary capability without over-engineering the solution. Appliance panels, simple brackets, and low-volume hardware components run efficiently on open-back presses.
You must specify an H-frame when running high-volume continuous production. Progressive die stamping demands this level of structural integrity. Deep drawing, heavy coining, and operations requiring strict parallelism will destroy a C-frame over time. The closed architecture ensures the punch and die remain perfectly aligned through millions of cycles. You protect your expensive tooling investment by eliminating angular deflection.
Automotive tier suppliers, aerospace component manufacturers, and high-speed motor lamination producers depend on straight-side presses. Any application utilizing a punch press machine for high-speed, automated coil feeding requires the stability of an H-frame. When part tolerances are tight and production runs are long, the closed frame architecture becomes the only viable engineering choice. Stamping dual-phase steel or high-strength aluminum alloys requires the massive rigidity only a four-pillar design provides.
Production Scenario | Recommended Press Type | Engineering Justification |
|---|---|---|
Single-station manual blanking of 2mm mild steel | C-Frame | Requires frequent operator access; low off-center load risk. |
12-station progressive die for electrical connectors | H-Frame | Demands strict parallelism and handles severe off-center loads. |
Deep drawing of stainless steel enclosures | H-Frame | Requires long, guided strokes and high tonnage throughout the draw. |
Secondary bending and piercing of pre-cut blanks | C-Frame | Open sides allow easy manipulation of bulky, pre-formed parts. |
High-speed stamping of motor stator laminations | H-Frame | Requires massive vibration dampening and zero angular deflection. |
Procurement decisions often hinge on budget constraints. C-frames present a significantly lower initial capital expenditure. They cost less to manufacture, ship, and rig into place. You can drop them onto a standard shop floor and start producing parts immediately. H-frames require a larger upfront investment. Shipping massive straight-side components and preparing specialized foundations add to the initial installation costs.
You must model the long-term financial impact of die maintenance. The rigidity of a closed type precision press drastically reduces tooling repair costs over a 5-10 year lifecycle. Symmetrical load distribution prevents the micro-chipping and premature wear of carbide punches. You spend less time sharpening dies and more time running parts. While routine maintenance on an H-frame might take slightly longer due to enclosed drive components, the massive reduction in scrap rates and tooling fatigue typically yields a superior long-term ROI for high-volume manufacturers. A $50,000 carbide progressive die will last exponentially longer in a rigid straight-side press, easily offsetting the higher initial machine cost.
Standard catalog models do not always fit specialized production needs. You can invest in a custom power press machine to bridge the gap between standard frame types. Engineers can reinforce C-frames with heavy-duty tie-rods across the open gap. This modification reduces angular deflection while maintaining some accessibility. For H-frames, you can specify custom stroke lengths, specialized bed sizes, or extended shut heights to accommodate massive transfer dies.
Evaluate the cost-benefit of retrofitting automation. Adding servo feeders and robotics onto an existing C-frame improves throughput but does not fix the underlying structural limitations. Buying a turnkey automated H-frame system provides a cohesive, highly rigid production cell. Both frame types now integrate modern servo-drive technology. Servo presses allow for programmable stroke profiles, variable slide velocities, and significant energy efficiency improvements. Matching advanced drive technology with the correct frame architecture maximizes your operational efficiency. You can program a servo press to slow down right at the point of impact, reducing snap-through shock and further extending die life.
Plant engineers frequently fall into the tonnage trap. They size a C-frame based purely on the peak tonnage required to cut the part. They fail to account for reverse tonnage (snap-through) or severe off-center loading. When a heavy blanking operation breaks through the material, the sudden release of energy sends a massive shockwave through the open frame. Over time, this repeated stress causes catastrophic frame failure, cracked castings, or shattered gibs. High-strength low-alloy (HSLA) steels exacerbate this problem by generating massive reverse tonnage upon breakthrough.
You must mitigate this risk through conservative engineering. Apply a strict 20-30% safety margin on tonnage when specifying a C-frame. If the part requires 80 tons of force, specify a 100-ton or 110-ton press. Utilize advanced tonnage monitors to track per-stroke loads. Ensure the machine includes fast-acting hydraulic overload protection to instantly dump pressure if a misfeed occurs. Monitor the tonnage curve to ensure you are not demanding peak force too high up in the stroke, where the press has less mechanical advantage.
Installing a large straight-side press involves significant facility preparation. A major risk is failing to prepare the shop floor for the height, weight, and vibration profile of the machine. Placing a 400-ton H-frame on a standard 6-inch concrete slab will crack the floor and cause the machine to settle unevenly. Uneven settling destroys the parallelism you paid for, twisting the frame and binding the gibs.
Conduct thorough pre-installation engineering studies. You will likely need to excavate and pour isolated foundation pits with deep concrete pads. Install heavy-duty vibration isolation pads to decouple the press from the surrounding floor. Verify overhead crane clearance. You need sufficient height to lift the crown during installation and enough capacity to handle massive progressive dies during daily operations. Take soil core samples to ensure the ground beneath your facility can support the dynamic loads generated during continuous high-speed stamping.
Excavate the designated installation area and pour an isolated inertia block foundation.
Install heavy-duty vibration isolation mounts to prevent shockwaves from traveling through the shop floor.
Verify overhead crane hook height and weight capacity for both press assembly and future die loading.
Route dedicated pneumatic and electrical lines to the foundation pit prior to machine delivery.
Audit your current die inventory to identify off-center loading profiles before selecting a frame style.
Calculate the required safety margin for reverse tonnage if you plan to blank high-tensile materials.
Measure your facility's concrete slab thickness and overhead crane capacity to verify straight-side press compatibility.
Consult with a tooling engineer to determine the maximum allowable angular deflection for your specific part tolerances.
Map out your material feeding strategy to ensure the chosen frame accommodates your required automation equipment.
A: While you can run very light-duty, short progressive dies in a C-frame, engineers advise against it. Progressive dies create off-center loads as the material moves through multiple stations. The open architecture struggles to distribute these asymmetrical forces. This leads to angular deflection, ram twisting, and premature die wear. For complex progressive stamping, an H-frame is required.
A: Angular deflection occurs because the front of the press frame is unsupported. When the ram applies tonnage to the workpiece, the stamping force travels through the "C" shaped body. The pressure causes the gap to stretch open slightly. This stretching bends the upper frame backward, altering the strict parallelism between the ram and the bolster plate.
A: The initial capital cost is higher for an H-frame of equivalent tonnage due to the massive closed structure and complex manufacturing process. However, the long-term return on investment can be superior. The extreme rigidity extends die life, reduces maintenance downtime, lowers scrap rates, and enables high-speed automation, offsetting the initial purchase price over time.
A: You calculate basic blanking tonnage by multiplying the material's shear strength by the material thickness and the total cutting perimeter. Always apply a 20% safety factor to this baseline number. You must also account for reverse tonnage (snap-through shock) and the energy required for drawing or forming operations occurring simultaneously in the die.
A: These terms are largely synonymous in the metal stamping industry. Both refer to a closed type precision press featuring four structural pillars (uprights) that enclose the die space. The term "straight-side" describes the vertical columns, while "H-frame" describes the overall geometric shape of the closed-loop structure.
A: Yes, you can integrate C-frames with robotic arms, pick-and-place units, or small servo-driven coil feeders. However, they lack the high-speed continuous automation capabilities of H-frames. The structural flexibility and vibration levels of an open frame limit the maximum safe operating speeds when paired with automated feeding equipment.
