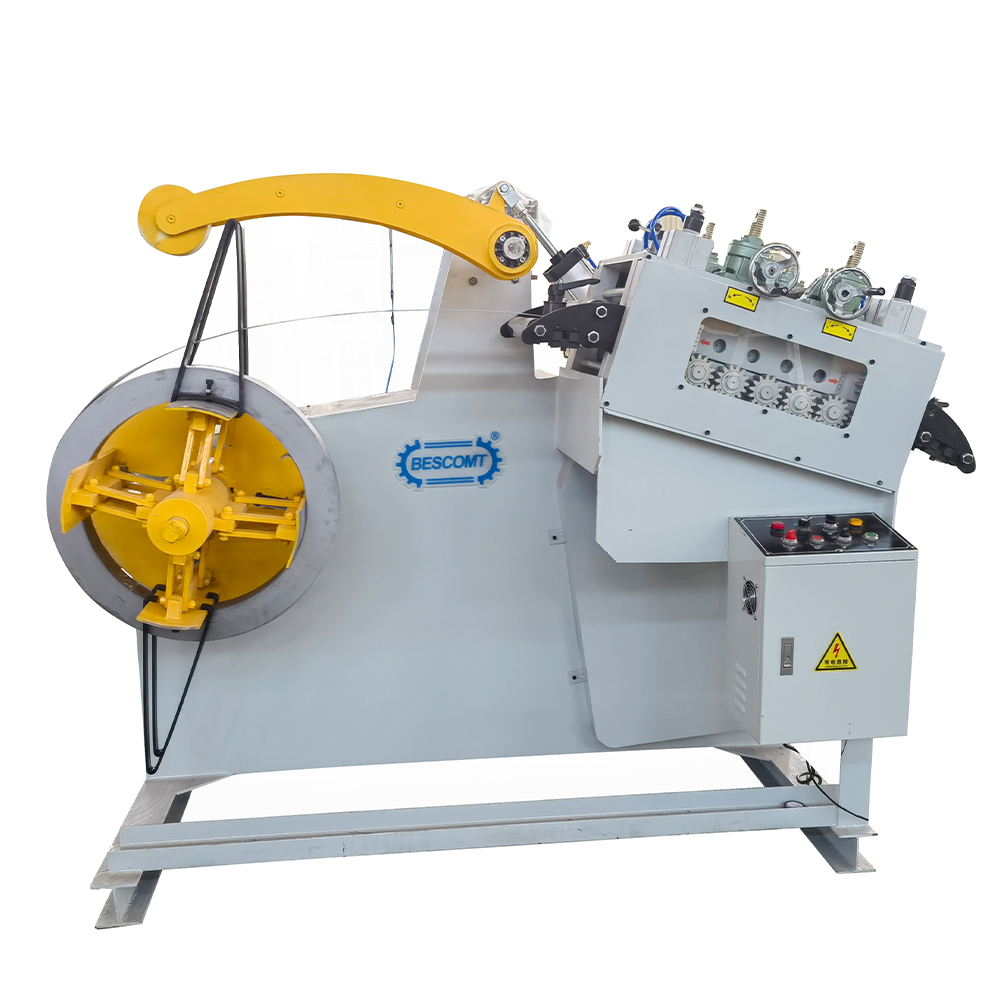

The fully automatic two-in-one uncoiling and leveling production line for thick plates and heavy steel coils is specially designed for handling thick plates and heavy steel coils. It perfectly integrates the uncoiling and leveling processes into one. This equipment adopts a heavy-duty structural design and a high-precision servo control system, aiming to significantly improve the efficiency and flatness of medium and thick plate processing. It is an ideal solution for shipbuilding, construction machinery, steel structure production and other fields.
Detailed Description of Technical Advantages and Characteristics：
1.Roller leveling machine with feeder places on the same stage can reduce feeding and overall demand for the usual error to the accuracy easy for installation and does not occupy space.
2.It use of solid roller bearing steel, heat treatment, hard chrome plating and then grind, good hardness, good abrasive resistance, long lifetime.
3.Maintenance and management are simplified, security, and low usage cost.
4.Control box electronic components are made in Japan, fewer failures, and long lifetime.
5.The machine can work with frequency converter with better results.
6.The machine can work with pressing device, has better effect.

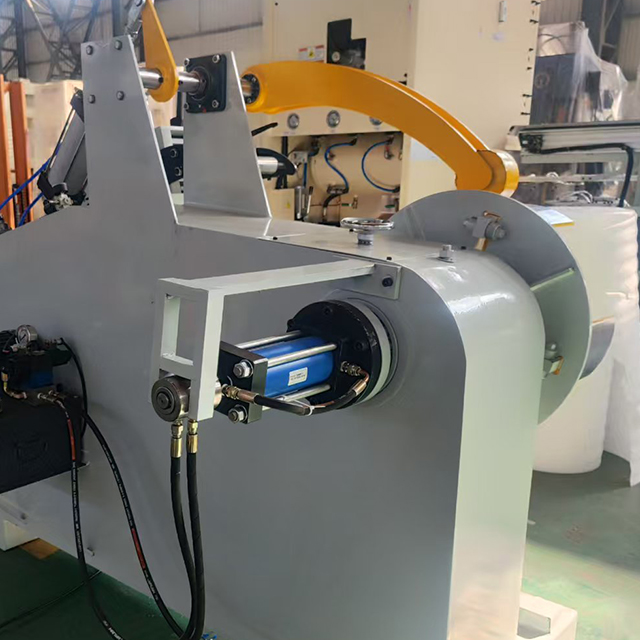

Hydraulic expansion

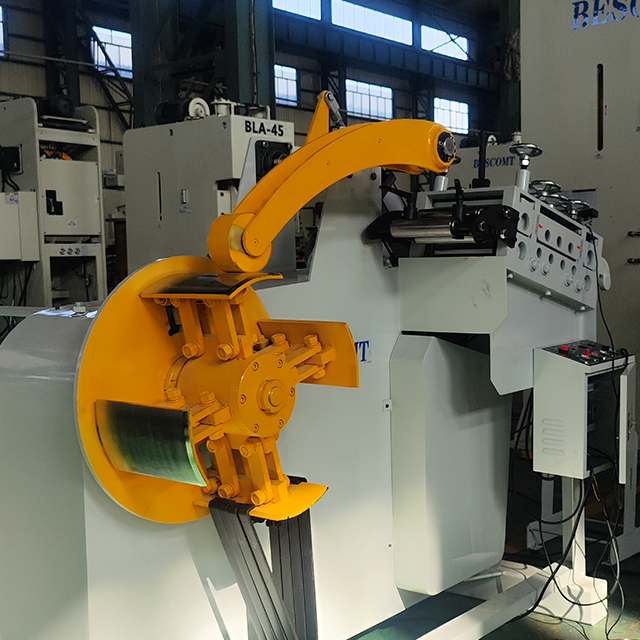

Press arm device

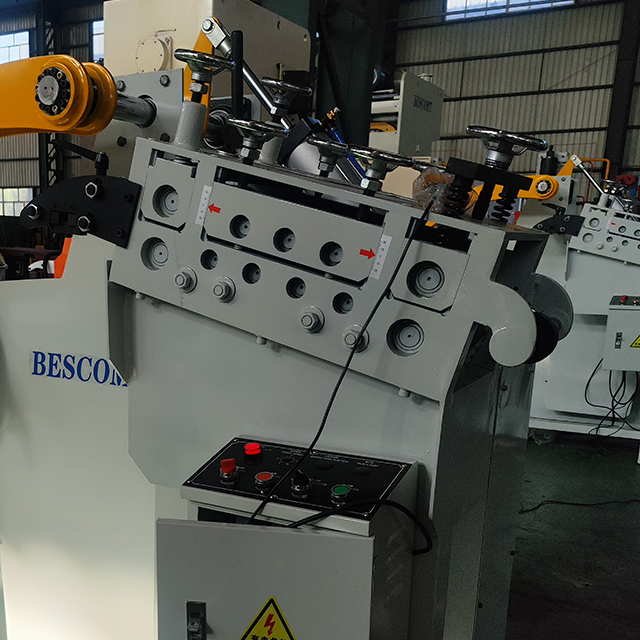

Leveling roller assembly
Technical parameter specifications
Model | GO-200A | GO-300A | GO-400A | GO-500A | GO-600A |
Material width(mm) | 200 | 300 | 400 | 500 | 600 |
Material thickness(mm) | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
Speed Reducer | 1/30 | 1/30 | 1/30 | 1/30 | 1/30 |
Power (AC) | AC three-phase 380V 3Phase AC 380V | ||||
Feeding roller | Φ80 x4 | ||||
Leveling Roller | φ72 x7 | ||||
Coil I.D. | Φ 450-530 | ||||
Coil O.D. | Φ 1200 | ||||
Material weight(T) | 1T | 1T | 2T | 2T | 2T |
2 in 1 Decoiler Straightener | 2 in 1 Heavy Duty Coil Processing Line |
Hand-operated expansion | Hydraulic expansion |
/ | Press arm device |
Roll diameter is relatively small | Large roller diameter |
Application Industry and Value
This production line is widely used in:
·Marine and Ocean Engineering: Pre-treatment of Shipbuilding Steel Plates.
·Heavy machinery equipment: Processing of structural component plates such as frames and chassis.
·Building steel structure: Alignment of the flanges and webs of H-shaped steel and box-shaped beams.
·Pressure vessels and storage tanks: The flattening treatment of the cylinder plates.
Create value for customers:Improve the consistency of the sheet material quality, reduce the reliance on skilled workers, minimize the occupation of production space, and achieve large-scale and stable production.
