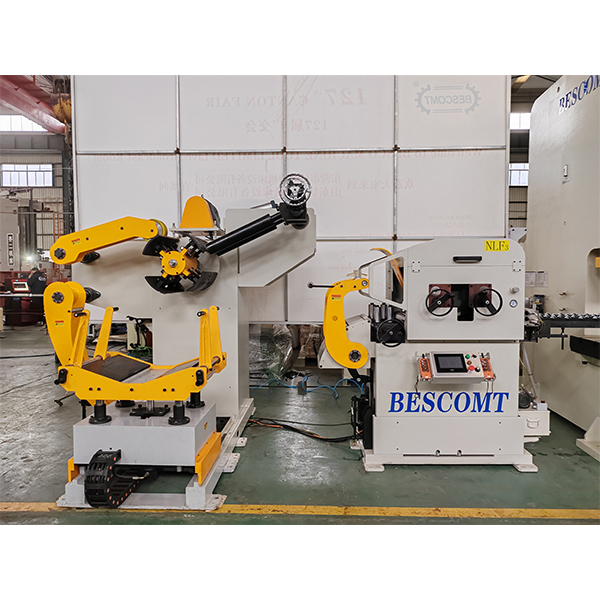

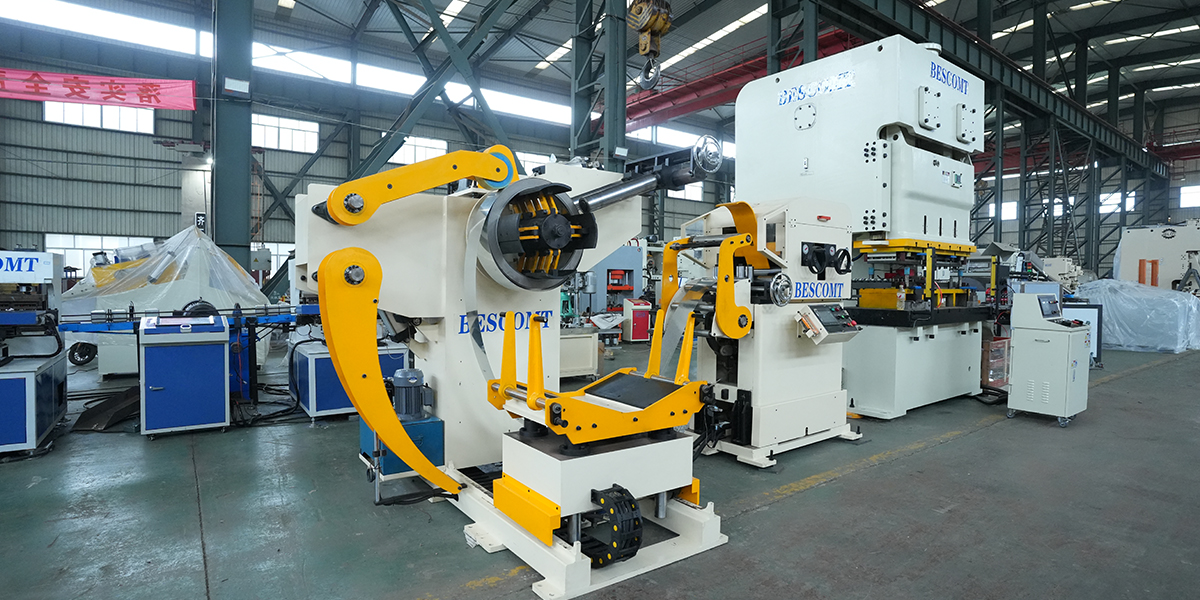

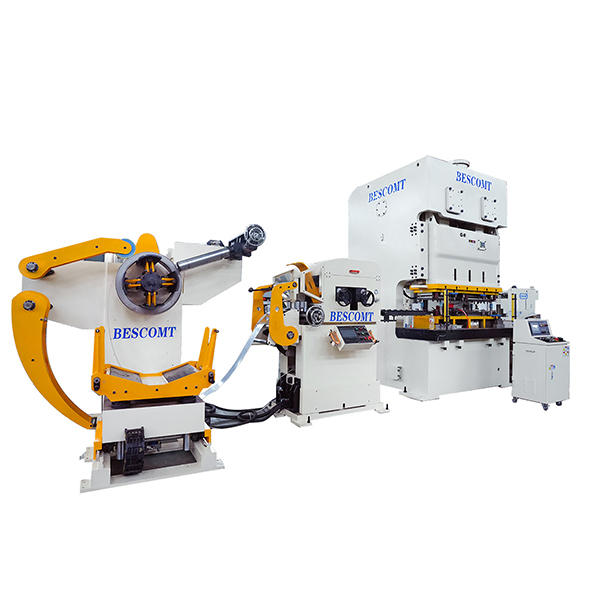

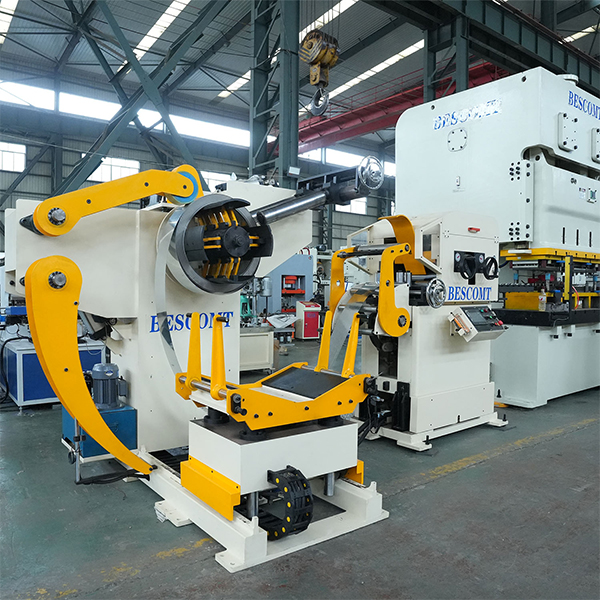

This is a compact feeding line, with decoiler, straightener and feeder machine in one combination unit.
It used to uncoiling metal strip from coil stock, straightening it to required flatness and feed it to press machine for stamping process.
Thanks to a well-knit body and advanced mechanical structure, it can easily handle coil stock up to 10tons.
With YASKAWA servo drive, YASKAWA servo motor and MITSUBISHI PLC, the feeding line can achieve the very accurate feeding ±0.15mm.

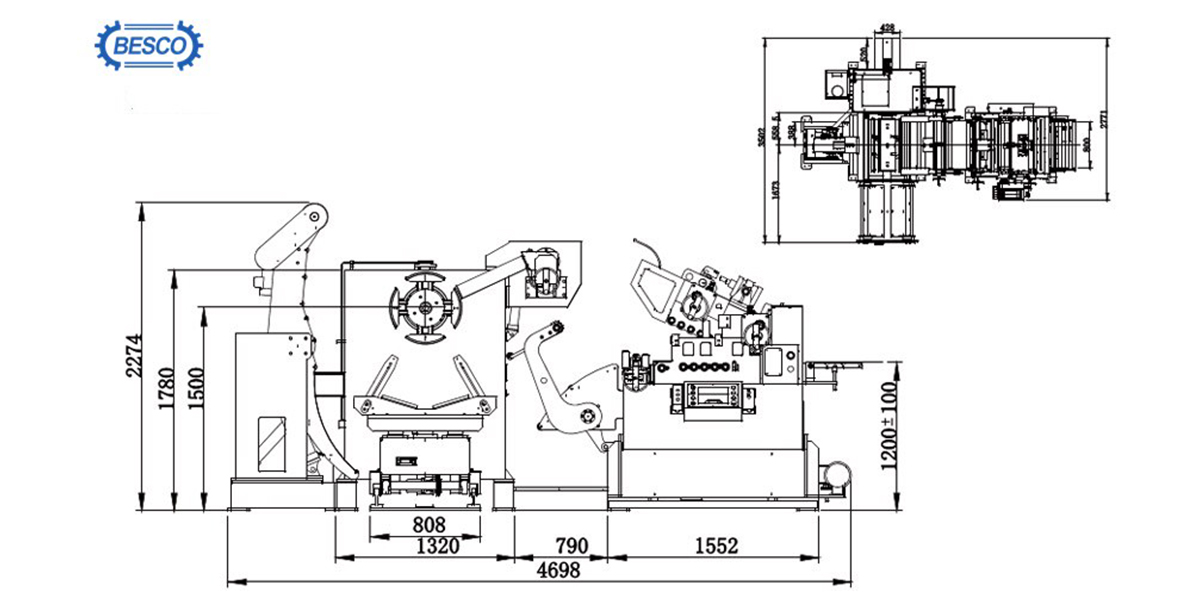

Moreover, the whole compact feeding system is only 4.5m length, which will save a lot of workspace for your press workshop.
Less Space Occupying: The whole line is only 4.5m long, a truly compact design ideal for metal junction box manufacturers with limited workshop space.
High Feeding Accuracy ±0.15mm: Driven by YASKAWA servo drive and servo motor, and MITSUBISHI PLC, it ensures every feed is precise, resulting in consistent dimensions and minimal burrs on stamped junction box shells.
Higher Production Efficiency: Uncoiling, straightening, and feeding are completed in one continuous process, minimizing idle time between stages and significantly boosting press output.
Less Human Work: Fully automatic PLC control with easy operation allows one worker to monitor multiple units, effectively reducing labor costs.
Low Malfunction: Heavy-duty welded frame and precision-machined components offer exceptional durability with minimal daily maintenance, ensuring uninterrupted production.
Servo Drive System: YASKAWA servo drive and servo motor for fast response and high precision.

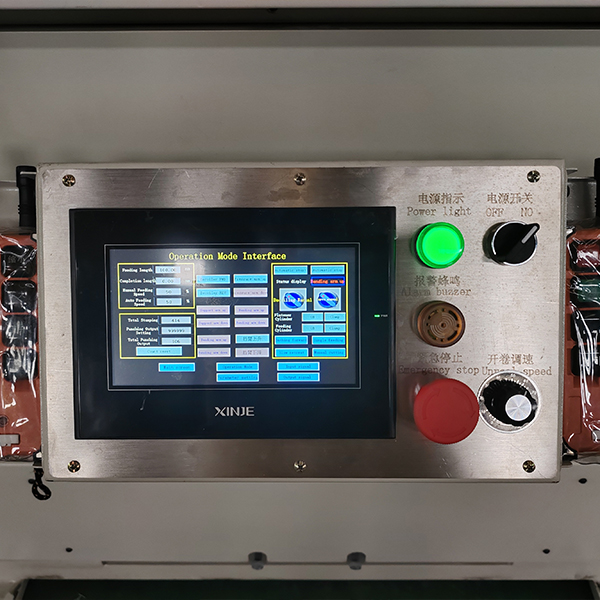

Control System: MITSUBISHI PLC with stable logic and strong anti-interference.
Straightening Rollers: Precision ground rollers effectively remove coil internal stress and ensure material flatness.
Load Capacity: Up to 10-ton coil stock, reducing coil change frequency.
Safety Design: Full perimeter safety guarding with emergency stop, CE compliant.
Suitable for cold-rolled steel, hot-dip galvanized steel, stainless steel, aluminum, and other metal coils with thickness from 0.3mm to 3.2mm and width from 70mm to 600mm (wider customization available). Besides metal junction boxes, it is also widely used for stamping parts like switch socket boxes, distribution box enclosures, and lighting fixture brackets.
