American Standard Electric Stretching Junction Box Making Machine

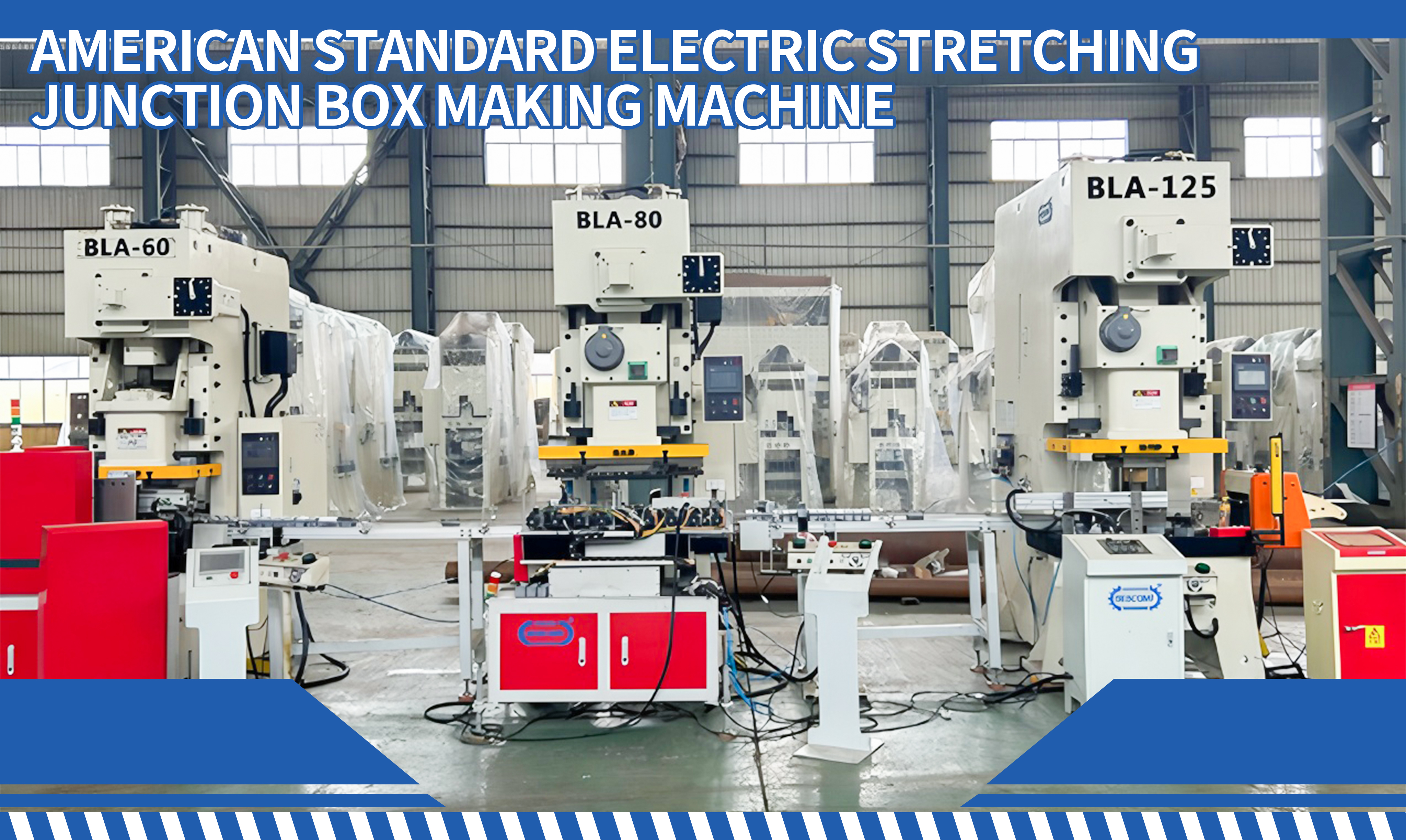

The production process of the electrical metal junction box production line：The coil is automatically fed to the punch press by the servo feeder---the punch press is stretched in combination with the mold---the coil is fed to the punch press through the robot to punch holes---the stretched junction box is obtained.

Availability:

Quantity:



Inquire Add to Basket

1. Product Introduction

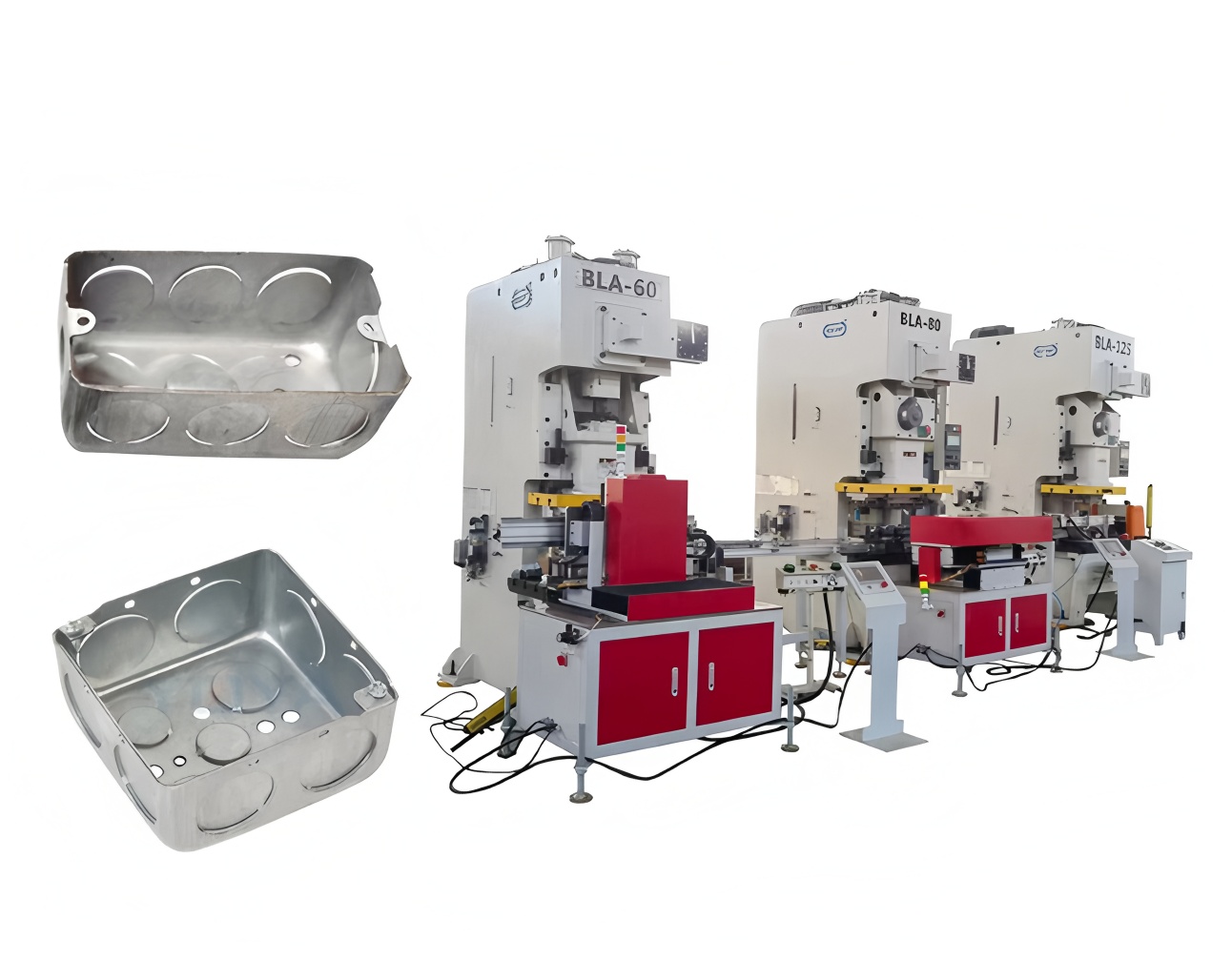

The production process of the electrical metal junction box production line：The coil is automatically fed to the punch press by the servo feeder---the punch press is stretched in combination with the mold---the coil is fed to the punch press through the robot to punch holes---the stretched junction box is obtained.

2.Technical Parameters

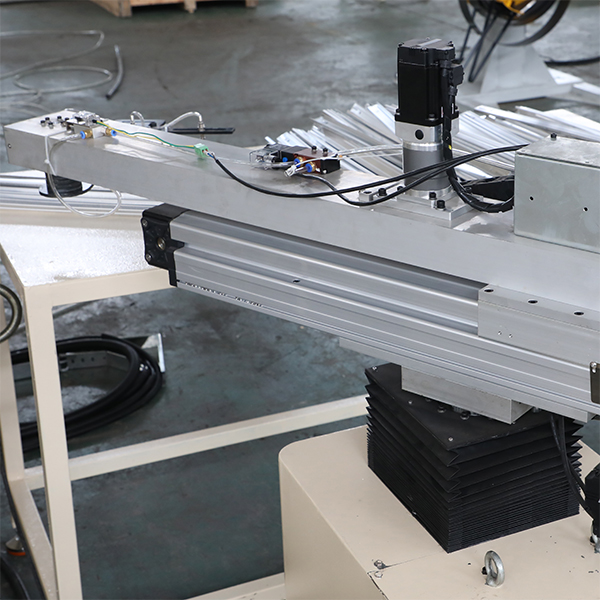

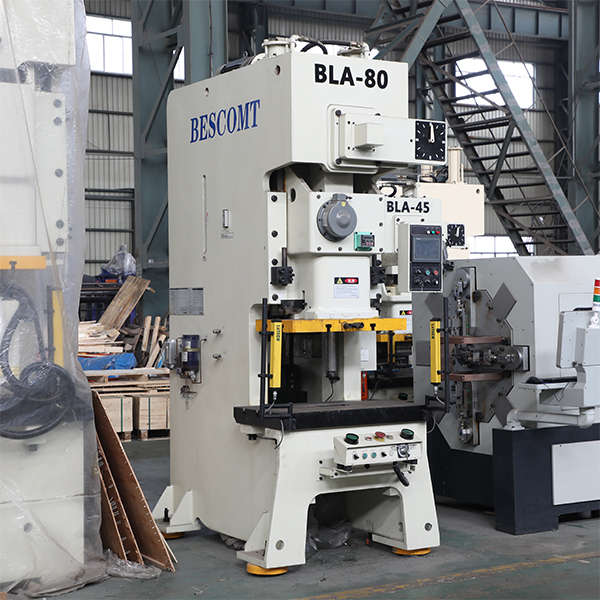

Robot arm	Power press machine

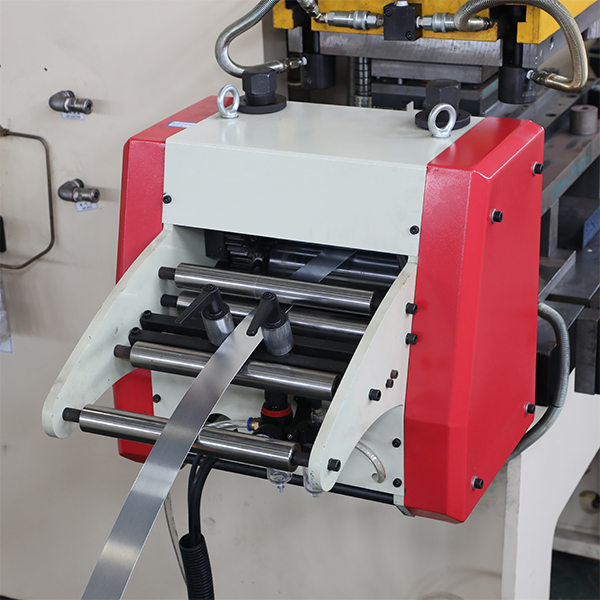

Servo feeder	Mould

3.Product Advantage

High degree of automation: The production line is highly automated, reducing manual intervention and improving production efficiency.

Precision machining: Adopting precise machining technology to ensure the dimensional accuracy and appearance quality of the product.

Quality control: Strict quality control process ensures that each product meets high standards of quality requirements.

Customization: Designed for metal stretch junction boxes, but the production line can manufacture junction boxes of different models and sizes by changing the mold.

High efficiency: Automated production lines can significantly improve production efficiency and reduce unit costs.

4.Product Uses

Metal stretch junction boxes are widely used in:

Building electrical systems.

Industrial automation and control systems.

Power distribution and control.

Lighting systems.

Communication equipment installation.

New energy systems, such as solar photovoltaic junction boxes.

The automation and precision processing capabilities of metal stretch junction box production lines make them an indispensable part of modern industrial production, especially in areas with extremely high requirements for electrical connection safety and reliability.

5.Product Video

6.Customer Reviews

Junction box making machine Junction box machine Stretching junction box making machine Stretching junction box production line American standard electric stretching junction box making machine Stretching junction box machine Stretching junction box punching machine Automatic junction box making machine

Related Products

content is empty!

Specifications	Unit	BLA-25		BLA-35		BLA-45		BLA-60		BLA-80		BLA-110		BLA-160		BLA-200		BLA-260		BLA-315		BLA-400
Model		V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H
Capacity	Ton	25		35		45		60		80		110		160		200		260		315		400
Rate tonnage point	mm	3.2	1.6	3.2	1.6	3.2	1.6	4	2	4	2	6	3	6	3	6	3	7	3.5	8	4	8	4
Speed changing	s.p.m	60-140	130-200	40-120	110-180	40-100	110-150	35-90	80-120	35-80	80-120	30-60	60-90	20-50	40-70	20-50	50-70	20-40	40-50	20-40	30-50	20-40	30-50
Stable speed	s.p.m		110		85	75		65		65		50		35		35		30		30		30
Storke	mm	70	30	70	40	80	50	120	60	150	70	180	80	200	90	200	100	250	150	250	150	250	150
Die height	mm	195	215	220	235	250	265	310	340	340	380	360	410	460	510	460	510	500	550	500	550	550	600
Slide adjustment	mm	50		55		60		70		80		80		100		110		120		120		120
Slide area	mm	470x230x50		520x285x50		560x340x60		700x410x70		770x420x70		910x470x80		990x550x90		1130x630x90		1250x700x100		1250x750x100		1350x800x100
Bolster area	mm	680x300x70		800x400x70		850x440x80		900x500x80		1000x550x90		1150x600x110		1250x800x140		1400x820x160		1500x840x180		1600x860x190		1650x900x200
Main motor	kwxp	3.7x4		3.7x4		5.5x4		5.5x4		7.5x4		11x4		15x4		18.5x4		22x4		30x4		37x4
Slide adjust device	HP	manual operation								electrial operation
Air pressure	kg/cm2	6		6		6		6		6		6		6		6		6		6		6
Presses precision		GB/JIS 1class 一级
Presses dimension	mm	1280x850x2200		1380x900x2400		1600x950x2500		1600x1000x2800		1800x1180x2800		1900x1300x3200		2300x1400x3800		2615x1690x4075		2780x1850x4470		2910x1950x4500		3180x2150x5025
Presses weight	Ton	2.1		3		3.8		5.6		6.5		9.6		16		23		32		35		40

Specifications	Unit	BLA-25		BLA-35		BLA-45		BLA-60		BLA-80		BLA-110		BLA-160		BLA-200		BLA-260		BLA-315		BLA-400
Model		V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H
Capacity	Ton	25		35		45		60		80		110		160		200		260		315		400
Rate tonnage point	mm	3.2	1.6	3.2	1.6	3.2	1.6	4	2	4	2	6	3	6	3	6	3	7	3.5	8	4	8	4
Speed changing	s.p.m	60-140	130-200	40-120	110-180	40-100	110-150	35-90	80-120	35-80	80-120	30-60	60-90	20-50	40-70	20-50	50-70	20-40	40-50	20-40	30-50	20-40	30-50
Stable speed	s.p.m		110		85	75		65		65		50		35		35		30		30		30
Storke	mm	70	30	70	40	80	50	120	60	150	70	180	80	200	90	200	100	250	150	250	150	250	150
Die height	mm	195	215	220	235	250	265	310	340	340	380	360	410	460	510	460	510	500	550	500	550	550	600
Slide adjustment	mm	50		55		60		70		80		80		100		110		120		120		120
Slide area	mm	470x230x50		520x285x50		560x340x60		700x410x70		770x420x70		910x470x80		990x550x90		1130x630x90		1250x700x100		1250x750x100		1350x800x100
Bolster area	mm	680x300x70		800x400x70		850x440x80		900x500x80		1000x550x90		1150x600x110		1250x800x140		1400x820x160		1500x840x180		1600x860x190		1650x900x200
Main motor	kwxp	3.7x4		3.7x4		5.5x4		5.5x4		7.5x4		11x4		15x4		18.5x4		22x4		30x4		37x4
Slide adjust device	HP	manual operation								electrial operation
Air pressure	kg/cm2	6		6		6		6		6		6		6		6		6		6		6
Presses precision		GB/JIS 1class 一级
Presses dimension	mm	1280x850x2200		1380x900x2400		1600x950x2500		1600x1000x2800		1800x1180x2800		1900x1300x3200		2300x1400x3800		2615x1690x4075		2780x1850x4470		2910x1950x4500		3180x2150x5025
Presses weight	Ton	2.1		3		3.8		5.6		6.5		9.6		16		23		32		35		40
