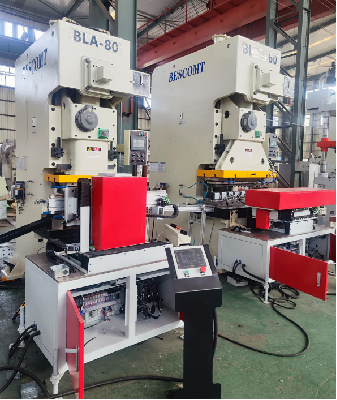

The Model BLA-80 High Precision Pneumatic Power Press Machine is a efficient and high-precision solution for diverse industrial stamping and punching requirements.

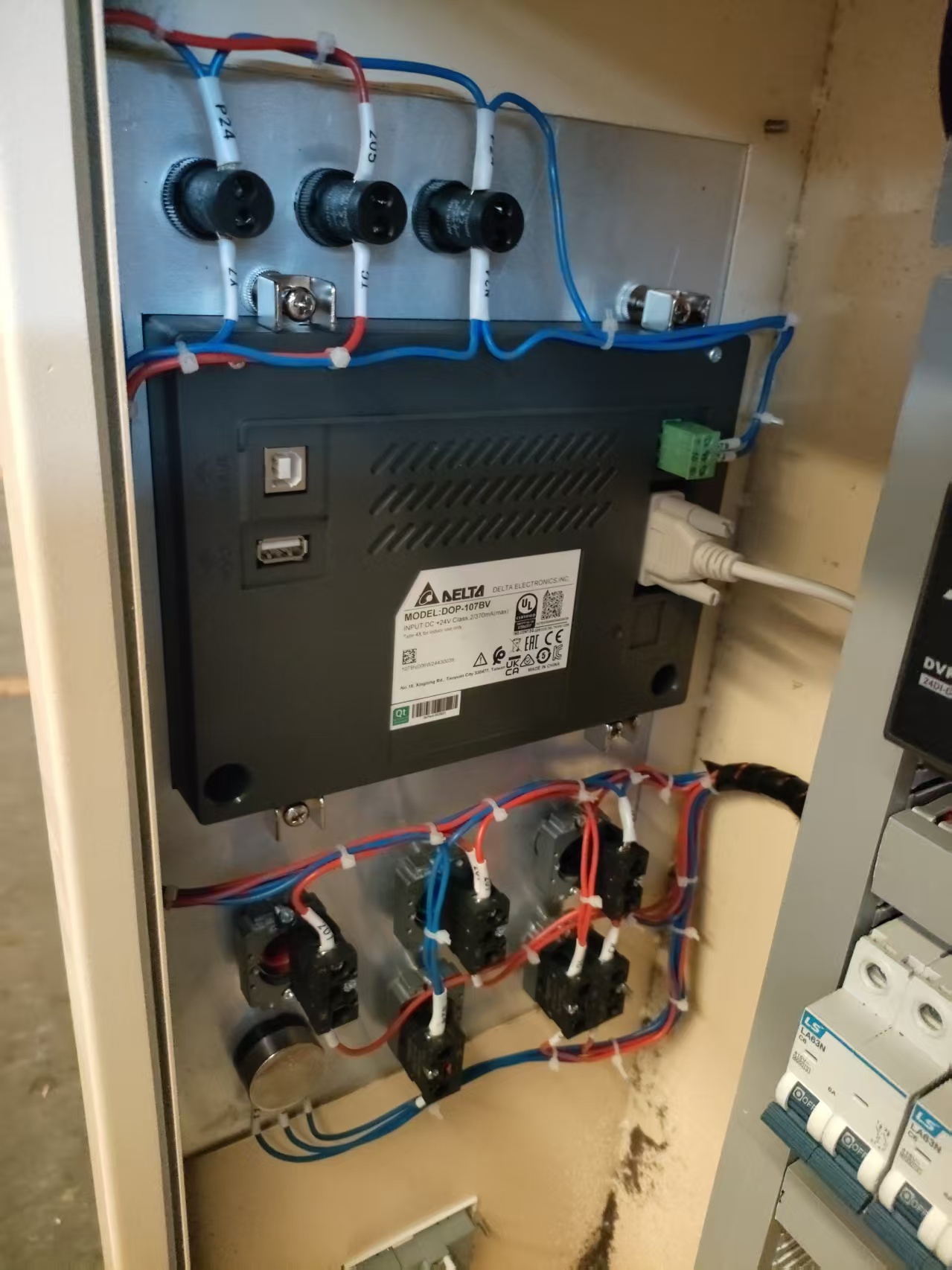

This machine uses high-end brand accessories, such as Delta,
 |
 |
 |

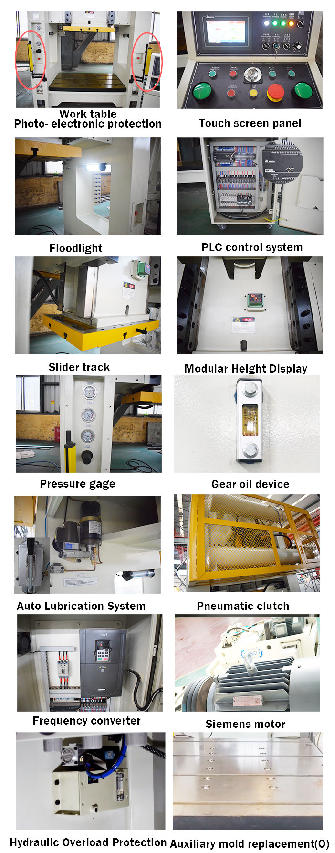

Part Of Detailed Configuration Details:
 |
The overload pressure is set at 110% of the press capacity and can be automatically relieved. The automatic recovery time is less than 60 s and the protection stroke is within 10 mm. |
| The lubrication device is a circulating oil supply mode, and the lubrication part is a transmission part, a guide rail, a balancer, and the like. The oil tank has oil level monitoring and alarm. The tank oil level is automatically detected, with the highest oil level display and the lowest oil level alarm. The oil return device has an oil temperature cooling mechanism. It has a double-loop filtration system with two filters, and the filter can be replaced normally . |
|

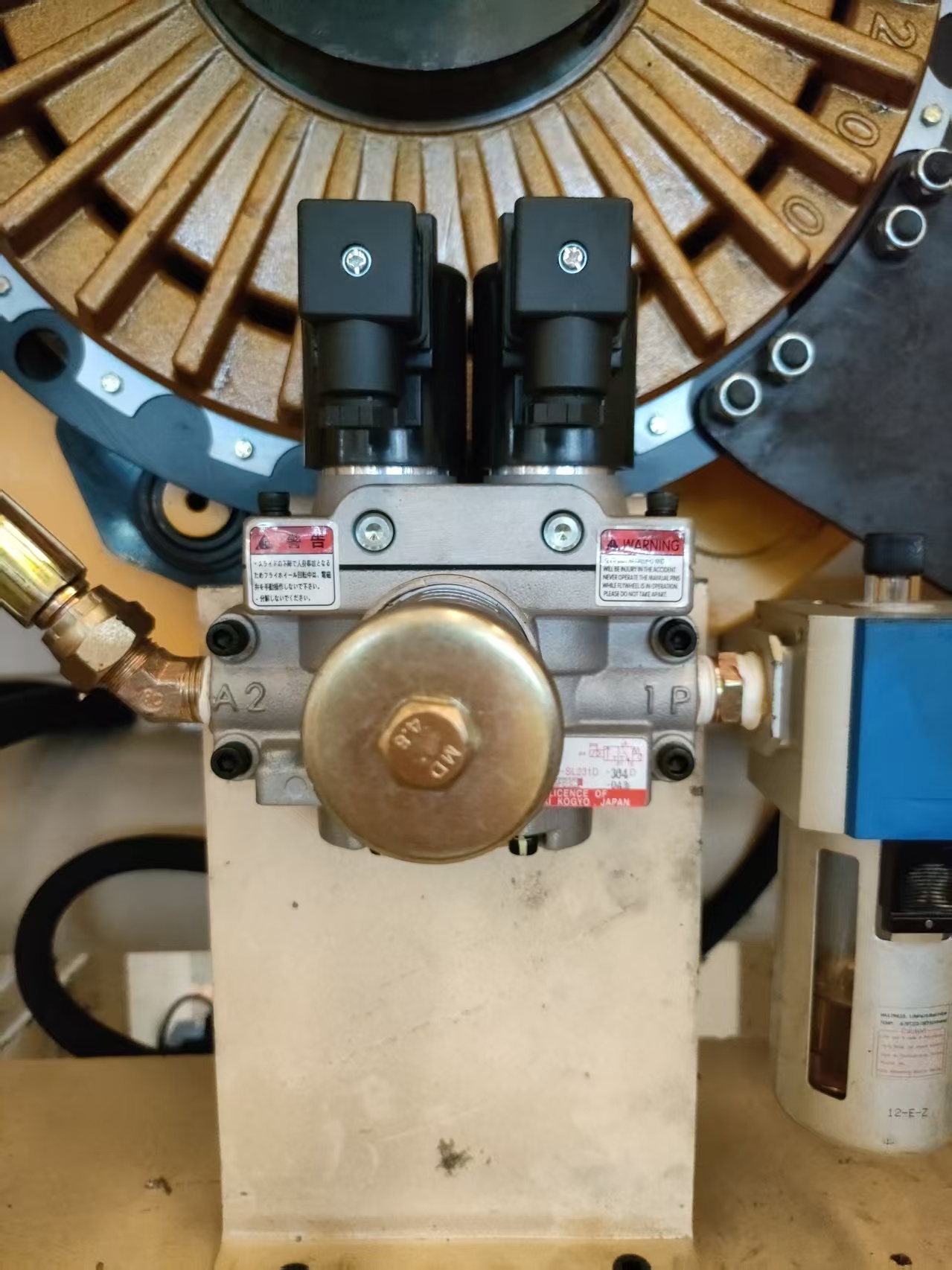

Two spare air sources. The gas pressure fluctuation of the gas storage tank is in the range of 15% to 20%, and a safety valve is arranged on the gas tank. The main air source of the press has pneumatic triplex, and the important parts such as clutch, brake and balance cylinder have oil mister. Seals and solenoid valves used in hydraulic and pneumatic systems are well-known brands. The hydraulic and pneumatic systems are fully marked in accordance with the hydro-pneumatic diagram. All blower connectors are available with connectors. |
|
|
unit |
BLA -80T |
Nominal force |
KN |
800 |
Occurrence position [capacity occurrence point] |
Mm |
4 |
Long stroke [slider stroke] |
Mm |
150 |
Maximum closed working height [maximum mode height] |
Mm |
340 |
Slider strokes |
Spm |
35-80 |
Slider adjustment amount [mounting height adjustment amount] |
Mm |
80 |
Upper table size [slider surface size] |
LRXFB |
770×420×70 |
Lower table size [Workbench size] |
LRXFB |
1000×550×90 |
Main motor |
KWXP |
7.5×4 |
Using air pressure |
Kg/cm2 |
5-6 |
Overall dimensions (length × width × height) |
Mm |
1800×1180×2800 |
Total Weight |
Ton |
6.5 |
