BLA/BLC/BLM Pneumatic Punching Machines Series Comparison: Selection Guide And Beginner's

If we compare BLA, BLC, and BLM to three brothers, each has its own character and strengths:

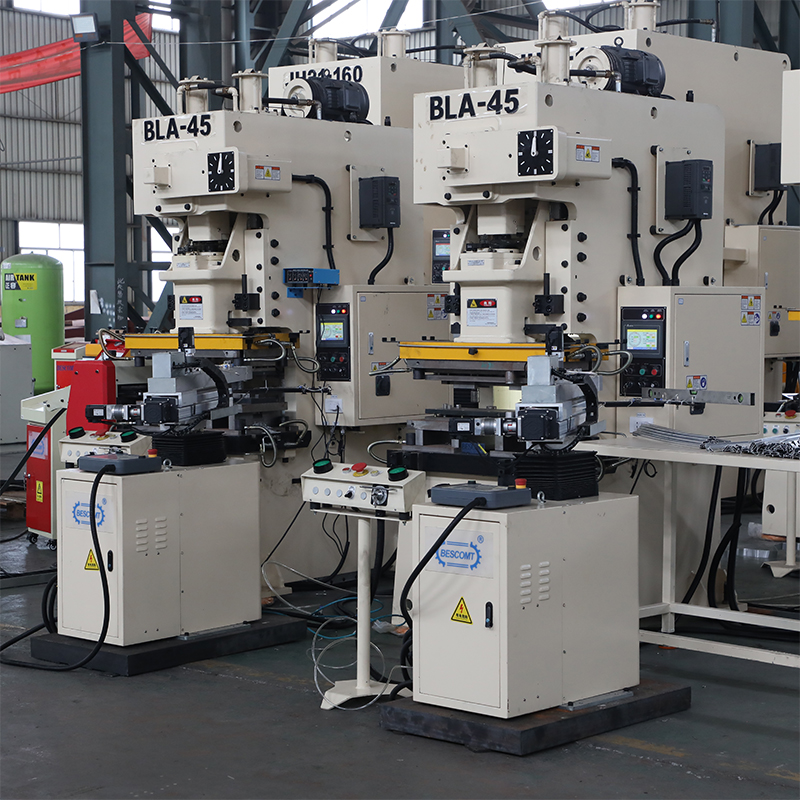

·The BLA series adopts an open C-frame structure, tempered to ensure good precision retention and high machine rigidity.

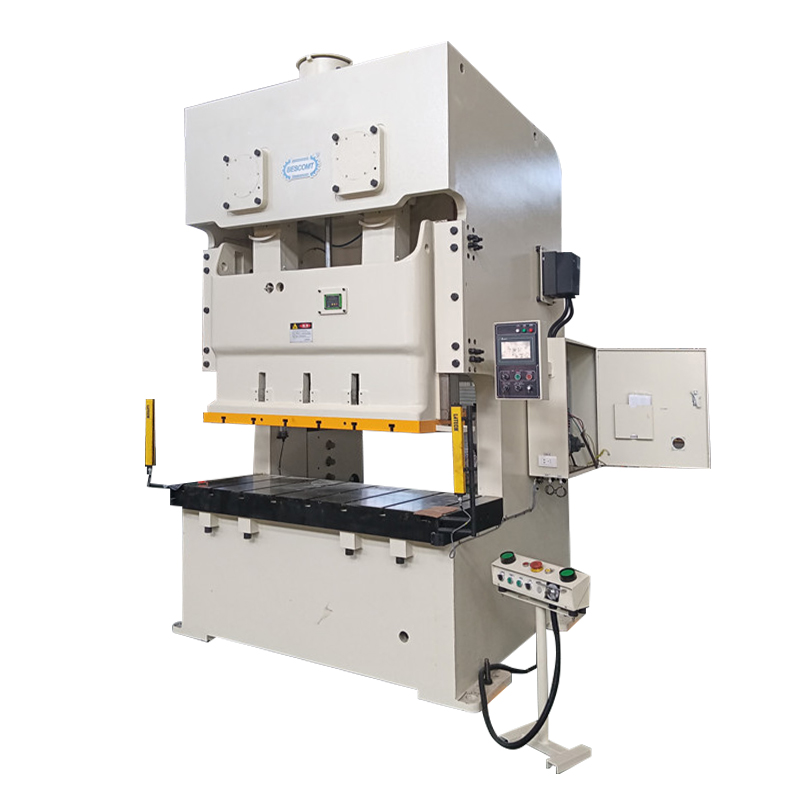

·The BLC series also uses an open C-frame, but goes further in structural rigidity and precision retention.

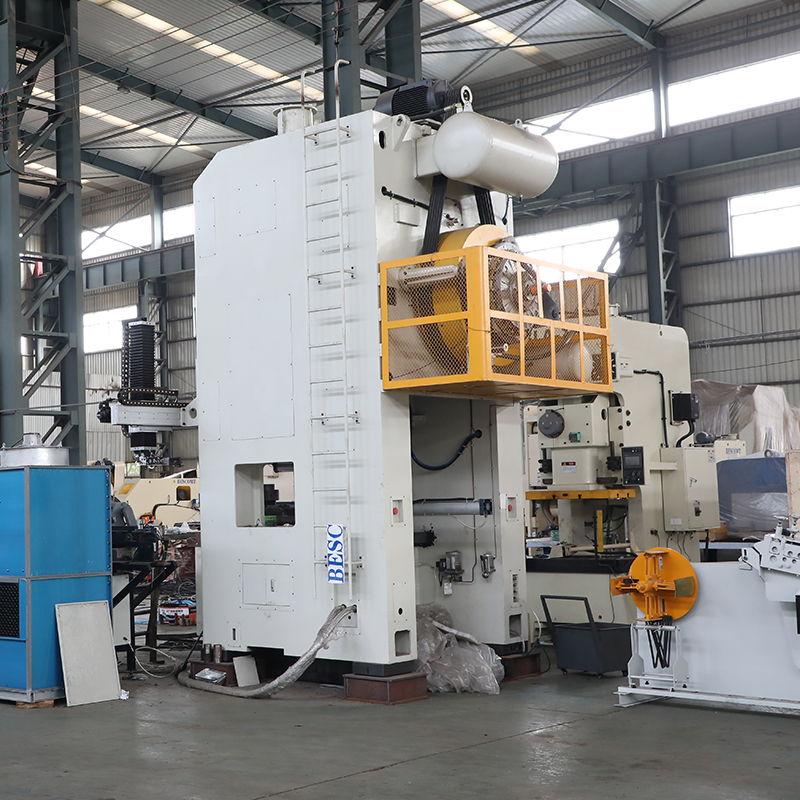

·The BLM series is heavy-duty equipment designed for large-scale, automated production. Its frame is more robust, usually adopting steel plate welding structure and vibration aging treatment, offering extremely high rigidity and deformation resistance.

Core Parameter Comparison：

Specifications	Unit	BLA-110		BLC-110		BLM-110
Model		V	H	V	H	V	H
Storke	mm	180	80	180	110	180	110
Die height	mm	360	410	400	435	400	350
Slide area	mm	910*470*80		1400*500*700		1400*550
Bolster area	mm	1150*600*110		1800*650*130		1550*750
Presses dimension	mm	1900*1300*3200		1745*2000*3059		2155*2280*3180
Presses precision		GB/IS 1class		GB/JIS 1class		GB/JIS 1class

How to Choose the Right Series and Model?

Step 1: Clarify Your Processing Requirements

1、What materials do you mainly process?

·Thin sheet (0.5-3mm): All three are suitable, BLA offers high cost performance.

·Medium-thick plate (3-8mm): BLC or BLM recommended.

·Thick plate (>8mm): BLM series recommended.

2、What is your daily output?

·Small batch (hundreds per day): BLA is sufficient, flexible die change.

·Medium batch (thousands per day): BLC is more suitable, stable precision.

·Large batch (tens of thousands per day): BLM with automation, highest efficiency.

3、Do you have plans for automation in the future?

·No automation plan in near future: BLA is economical.

·Plan to add feeder within six months: BLC has reserved interface.

·Plan for fully automated line: BLM is the foundation.

Step 2: Calculate Required Tonnage

Bring your products and samples to us, and our sales representative will help you calculate the required specifications and provide selection recommendations based on your products.

Step 3: Confirm Key Dimension Matching

·Die size: Bed size must be larger than die base.

·Part height: Slide stroke and die height must accommodate part ejection.

·Sheet width: Throat depth must be greater than half the sheet width.

Stop Immediately If You Notice These Conditions

·Slide free-falling or continuous stamping

·Abnormal noise or vibration from the equipment

·Slide movement not smooth, with jamming

We have a dedicated engineering team. If you encounter any equipment issues after purchase, feel free to reach out to us. We will provide prompt technical support and solutions via video call, phone, or other means.

Three Key Advantages of Choosing Us

✅ Common Advantages: Stability and Reliability Built on Details

The BLA, BLC, and BLM series correspond to entry-level, advanced, and professional needs respectively. There is no best equipment, only the most suitable choice for you. We hope that through this article, you can have a clear understanding of these three products and find the one that best fits your workshop.

If you have any further questions or need selection suggestions for your specific products, please feel free to contact us. After all, choosing the right equipment is the first step to efficient production, and we are willing to accompany you on this step.
