Common Punch Press Problems and How to Prevent Them

Unplanned downtime and high scrap rates in metal stamping eat directly into manufacturing margins. Every halted stroke strips away profitability and wastes valuable materials. Many facilities treat these pressing issues reactively. They address frustrating symptoms like burred edges or torn material rather than confronting the underlying mechanical failures. Often, the real culprits are structural press deflection or improper punch-to-die clearance.

This comprehensive guide details how you can accurately diagnose common mechanical and tooling failures. We show you how to implement standardized preventative routines to protect your equipment daily. You will also learn practical steps to evaluate your shop floor dynamics effectively. Finally, we help you determine exactly when chronic issues require equipment upgrades instead of endless, costly repairs. Managing these distinct variables keeps your production running smoothly. By the end, you will have a clear roadmap to boost operational efficiency and maintain tight part tolerances across every production run.

Key Takeaways

• Most edge defects and premature tool wear stem from improper punch-to-die clearance or tooling misalignment, not material flaws.

• Implementing a structured punch press maintenance schedule reduces catastrophic breakdowns and extends die life.

• Systematic troubleshooting requires isolating three variables: the tooling setup, machine integrity (deflection/wear), and operator handling.

• Evaluating the long-term ROI of a new precision stamping machine becomes necessary when structural press wear limits part tolerance.

The Business Impact of Unresolved Punch Press Problems

Frequent mechanical disruptions do more than just irritate operators. They fundamentally damage your operational profitability. Many shops ignore minor equipment quirks. However, these small deviations compound rapidly over thousands of strokes.

You must understand the difference between gross uptime and Overall Equipment Effectiveness (OEE). Gross uptime only measures if the machine is running. OEE measures true manufacturing productivity. Frequent micro-stoppages artificially lower your OEE score. Operators might pause the machine briefly to clear a slug jam. They might stop to make quick die adjustments. These tiny delays ruin production flow. They prevent you from hitting your daily quota. We often see facilities lose up to twenty percent of their capacity this way.

Poor edge quality creates a cascading series of hidden costs. You pay for these defects multiple times. First, you waste expensive raw material. Second, you spend extra money on downstream deburring labor. Third, you accelerate tooling degradation. Dull tools require frequent sharpening. This further reduces your active stamping time. Addressing these punch press problems early prevents massive profit leaks.

Finally, we must address the safety and compliance risks. Mechanical neglect often precedes serious safety incidents. A degraded brake system might fail during a critical stop. Worn clutches pose immense danger to operators. Frustrated workers sometimes bypass safety guarding to clear frequent jams. Maintaining machine integrity is a strict safety imperative. Ignoring basic maintenance violates safety compliance standards and puts your workforce at risk.

Top 4 Common Punch Press Problems and Root Causes

Punched Edge Defects (Burrs, Tearing, and Flaking)

You can read a punched edge like a diagnostic report. A healthy punched edge shows distinct zones. You will see a smooth rollover zone at the top. Below it lies a shiny shear zone. The bottom features a rougher fracture zone. When defects occur, these zones look distorted. Heavy burrs form along the bottom edge. The material might tear unevenly instead of snapping cleanly. Flaking leaves debris scattered across your die block.

Incorrect punch-to-die clearance represents the primary root cause. Clearance must match the specific material thickness. It must also match the material tensile strength. Using too much clearance causes the material to bend and tear. Using too little clearance causes secondary shearing. This generates excessive heat and large burrs. Always calculate clearance based on exact material specifications, not just guesswork.

Premature Tooling Wear and Galling

Operators often notice a sudden drop in part quality. They pull the punch tool and discover severe damage. Galling occurs when sheet metal physically cold-welds to the punch tool. It leaves a sticky, rough residue on the tooling surface. This drastically increases stripping friction. The punch struggles to retract from the material. This intense friction causes premature tooling wear.

Several factors drive this rapid degradation. Insufficient lubrication is the most common culprit. The tool lacks a protective barrier against the sheet metal. Improper tool steel selection also causes galling. Stamping hard materials requires premium tool steels or specialized coatings. High stripping friction generates immense heat. This heat accelerates the cold welding process. Proper lubricant application easily resolves this specific issue.

Slug Pulling (Slugs Returning to the Die Surface)

Slug pulling is a terrifying event for any stamping operator. The punch pierces the material and creates a scrap slug. Instead of falling through the die block, the slug pulls back up. It rests on the die surface during the stripping stroke. When the press cycles again, it smashes into the rogue slug. This causes catastrophic damage to the tooling setup.

Vacuum effects often cause slug pulling. The retracting punch creates suction. This suction lifts the light slug upward. Dull punches also contribute to this dangerous phenomenon. A dull punch fails to break the slug free cleanly. Excessive die clearance makes the problem worse. The loose fit allows the slug to shift and travel back up the matrix.

Press Misalignment and Deflection (Off-Center Loading)

You might notice inconsistent part tolerances across the press bed. One side of the die wears out much faster than the other. These symptoms indicate press misalignment or deflection. The machine frame physically bends under immense pressure. The ram no longer descends parallel to the bolster plate. This uneven loading damages expensive progressive dies.

Gib wear frequently causes ram misalignment. Loose gibs allow the ram to shift laterally during the stroke. Exceeding the reverse tonnage limits also causes severe deflection. When the punch breaks through the material, energy releases violently. This shockwave travels back into the press frame. Over time, this repeated stress causes permanent structural deformation. You must monitor off-center loading to protect machine geometry.

Troubleshooting Framework: Isolating the Variable

Diagnosing erratic stamping behavior requires a logical approach. You cannot simply guess what is wrong. You must systematically eliminate possibilities. This prevents you from making unnecessary adjustments. It also stops you from tearing down a perfectly good die.

We use the Triad of Failure to deduce the root cause. Every defect originates from one of three variables. You must isolate them sequentially:

• The Material: Check the raw coil. Has the tensile strength changed? Is the material thickness out of spec? Are there variations in the surface coating?

• The Tooling: Inspect the die setup. Is the punch-to-die clearance correct? Are the tools sharp? Is the die properly aligned and shimmed?

• The Machine: Evaluate machine integrity. Are the gibs loose? Is the ram parallel? Are you exceeding the tonnage limits?

Data-driven diagnosis prevents costly mistakes. We recommend tracking specific metrics before tearing down the die. Monitor your tonnage data closely. Spikes in tonnage indicate dull tooling or lubrication failures. Listen for acoustic changes. A louder snapping sound indicates excessive reverse tonnage. Track edge quality variations over a production run. These data points guide your troubleshooting efforts accurately.

Never ignore operator input. The Voice of the Customer (VOC) on the shop floor is invaluable. Operators know the machine intimately. Small changes in machine vibration are early warning signs. Changes in press sound often precede catastrophic failure. Train your operators to report these leading indicators immediately. Their daily experience forms your best defense against unplanned downtime.

Implementing Proactive Punch Press Maintenance

Transitioning away from reactive repairs changes your entire operational dynamic. The old "run-to-fail" mentality destroys equipment and wastes money. Proactive care eliminates eighty percent of routine failures. Implementing a structured punch press maintenance schedule keeps your machinery running optimally. It protects your tooling investments and ensures consistent part quality.

Operators must perform daily and weekly checks without exception. These baseline requirements prevent minor issues from escalating. Operators should verify lubrication systems at the start of every shift. They must check pneumatic pressures to ensure proper counterbalance function. Inspecting safety light curtains guarantees operator protection. These quick visual checks require minimal time but deliver maximum reliability.

Maintenance technicians must conduct rigorous monthly and annual audits. These OEM-level checks address structural wear. Technicians should measure gib clearance using feeler gauges. They must inspect the clutch and brake linings for excessive wear. Checking ram parallelism ensures the press frame remains true. These deep inspections catch degradation before it impacts your part tolerance.

Documentation holds this entire process together. You must stress the importance of detailed maintenance logs. Record every adjustment, repair, and parts replacement. These logs help you identify historical wear trends. They show exactly how much money you spend keeping an old press alive. You will need this hard data to justify future capital expenditures.

Repair, Rebuild, or Replace: Evaluating Your Precision Stamping Machine

Eventually, preventative care is no longer enough. Every press reaches a structural tipping point. You must decide whether to repair, rebuild, or replace the aging equipment. We use a clear decision matrix for this evaluation. If bed deflection becomes permanent, repairs are useless. A bent frame cannot hold tight tolerances. If rebuild costs exceed forty percent of the replacement value, buying new makes financial sense.

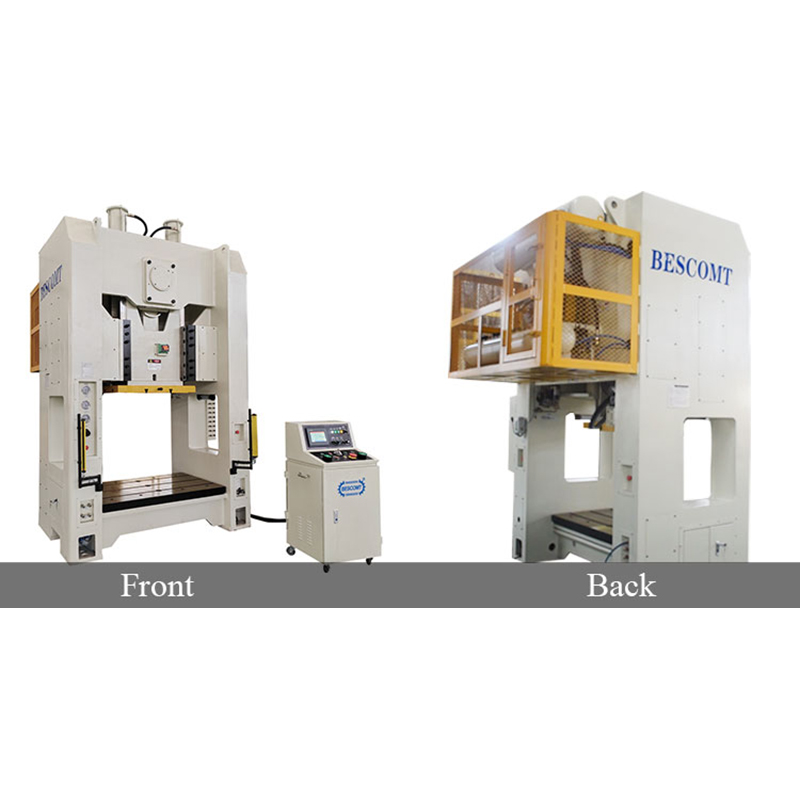

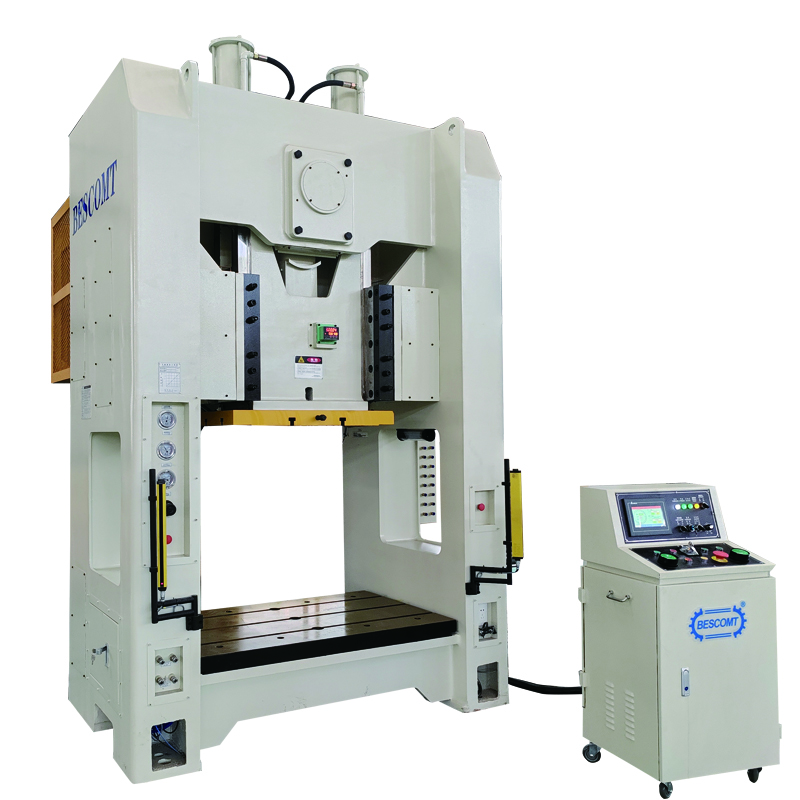

Evaluating new equipment requires strict criteria. When sourcing a modern precision stamping machine, focus on structural rigidity. Look for heavy, cast-iron or heavily welded steel frames. High rigidity prevents deflection during high-tonnage jobs. Demand advanced tonnage monitoring systems built into the controls. Automated slide adjustment features also save immense setup time. These modern features drastically improve your OEE.

Choosing the right partner is just as critical as choosing the machine. You must vet a reliable metal stamping equipment supplier carefully. Look beyond the initial purchase price. Focus heavily on their post-sale support infrastructure. Ask about their domestic spare parts availability. A great supplier acts as an engineering partner. They demonstrate a willingness to consult on specific tooling-to-machine matching. This partnership ensures your new investment performs flawlessly from day one.

Conclusion

Effective prevention relies on strict tooling protocols and rigorous preventative maintenance. You cannot stamp high-quality parts on a degraded machine. Addressing clearance issues, mitigating stripping friction, and stopping slug pulling will drastically improve your edge quality. Monitoring your press geometry prevents uneven tool wear. Shifting from reactive repairs to proactive maintenance secures your profitability.

We advise you to conduct a comprehensive audit of your most frequent press failures immediately. Track your downtime causes for the next thirty days. Review your current lubrication and clearance standards. If you suspect structural machine wear is ruining your progressive dies, consult with equipment engineers. Taking these action-oriented next steps will solidify your production reliability and protect your margins.

FAQ

Q: What is the ideal punch-to-die clearance to prevent edge problems?

A: The ideal clearance typically ranges from 10% to 20% of the material thickness. However, this varies heavily based on material hardness. Softer metals like aluminum require tighter clearances. Harder metals like stainless steel require looser clearances. Always consult engineering charts for exact specifications.

Q: How often should a punch press undergo preventative maintenance?

A: You should differentiate between operational and mechanical checks. Operators must perform daily checks on lubrication and safety systems. Certified technicians should perform thorough mechanical inspections annually, or every 1,000 operating hours. This comprehensive audit checks structural geometry, clutch wear, and brake integrity.

Q: What causes a punch press to exceed its tonnage rating?

A: Several variables push a machine past its limits. Using severely dull tooling drastically increases required force. Setting an incorrect shut height bottoms out the die abruptly. Doubling up on material or attempting to punch too much shear area at once also triggers dangerous tonnage spikes.

Q: How can I stop slug pulling in my stamping dies?

A: You can implement several practical fixes to eliminate slug pulling. Adding a shear angle to the punch face reduces vacuum suction. Installing spring-loaded urethane ejectors pushes the slug down forcefully. You can also utilize specialized die buttons featuring internal slug retention geometry.
