Selecting a punch press requires high-stakes engineering and financial decisions. You must carefully balance immediate capital expenditure against long-term production constraints. Tooling wear and cycle times depend heavily on this initial choice. A miscalculation creates costly bottlenecks across the entire shop floor. The right equipment must align perfectly. You need to match it to your specific material thickness, part complexity, and facility integration requirements. Poorly matched machinery inevitably causes frequent downtime and forces expensive retrofits down the line.
This guide directly addresses these critical challenges. We provide an engineering-aligned, vendor-neutral framework to evaluate equipment specifications. You will learn how to systematically verify supplier reliability. We will explore essential tonnage calculations, compare modern drive technologies, and assess workflow integration. You will walk away ready to confidently select the ideal punch press for metal stamping.
Tonnage requirements must account for off-center loading and snap-through shock, not just theoretical baseline force.
Drive type selection (mechanical, hydraulic, or servo) dictates the balance between strokes per minute (SPM), precision, and energy consumption.
Seamless integration into an existing metal stamping production line requires verifiable automation, feed, and die compatibility.
Evaluating a punch press manufacturer extends beyond the machine to parts availability, safety compliance, and aftermarket service level agreements (SLAs).
You cannot select machinery based on guesswork. Engineers must determine the exact force required to pierce or form material. You calculate this required force using three distinct variables. Multiply the material shear strength by the material thickness. Then, multiply this result by the total perimeter of the cut.
Follow these steps to determine a safe baseline:
Determine the ultimate tensile strength of your specific metal alloy.
Measure the maximum material thickness you plan to run.
Calculate the total linear cutting perimeter for the most complex part.
Multiply these three figures to find the theoretical tonnage.
Theoretical calculations only provide a starting point. We strongly recommend adding a 20% safety margin. Tool dulling increases the required cutting force significantly over time. Material variations add unpredictable resistance. This safety buffer prevents overloading the motor and protects the internal gearing.
Physical dimensions dictate what tooling you can utilize. You must match the press bed dimensions to your existing progressive die sets. Future die expansions require adequate space as well. A small bed severely limits your ability to add future stamping stations. Shut height represents another critical measurement. It defines the distance from the ram to the bed. You measure this when the stroke reaches the bottom. Inadequate shut height prevents die installation entirely. Excessive shut height requires expensive bolster plates to bridge the gap.
Stroke length fundamentally changes machine capabilities. Evaluating this trade-off requires careful part analysis. Deep drawing applications demand longer strokes. The ram needs sufficient travel to pull material into complex shapes. Blanking operations behave differently. They require rapid, short strokes. High strokes per minute (SPM) maximize your daily output. You must define your primary application first. A long-stroke machine usually sacrifices maximum speed. Conversely, high-speed machines often lack the necessary clearance for deep forming.

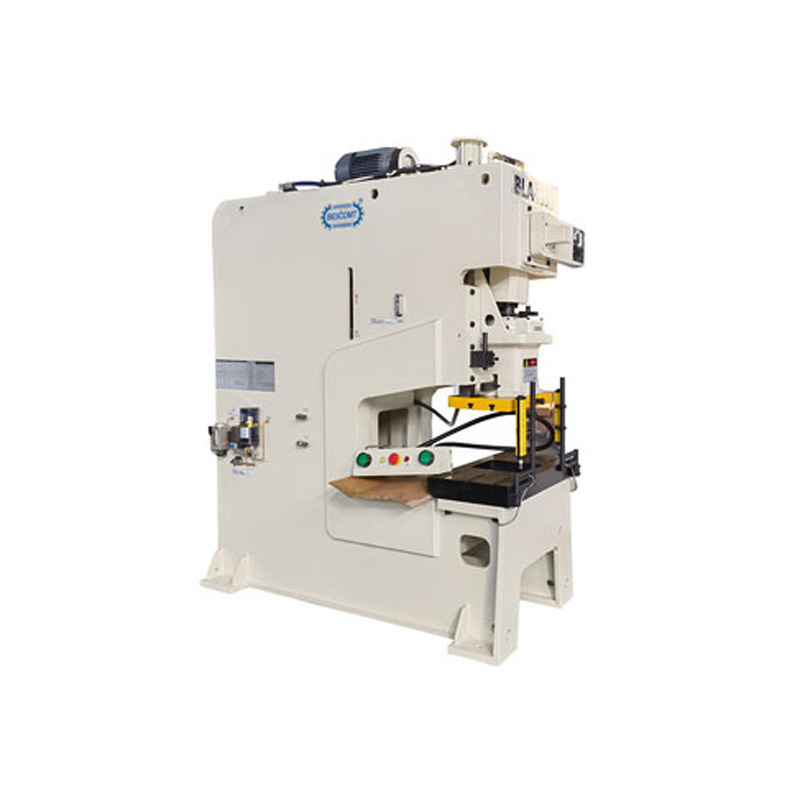

Part geometry directly impacts machine longevity. Asymmetrical parts cause uneven force distribution during operation. We call this off-center loading. It severely stresses the entire structural frame. You must specify adequate frame rigidity to prevent ram deflection. C-frame designs offer excellent three-sided accessibility. However, they lack structural rigidity under heavy loads. Straight-side presses solve this problem. They feature four solid pillars supporting the crown. This enclosed design resists deflection effectively. We recommend straight-side models for all high-tonnage progressive die applications.
Manufacturers have relied on mechanical systems for decades. A massive flywheel stores kinetic energy continuously. A clutch engages to transfer this energy to the ram. They represent the best choice for high-speed blanking. High-volume shallow forming also benefits from this technology.
You must understand their limitations. Energy delivers strictly at the bottom of the stroke. The ram cannot generate maximum force higher up. This mechanism creates a higher potential for tool impact wear. The sudden impact shock degrades sensitive carbide tooling faster.
Fluid power fundamentally changes the force curve. Hydraulic cylinders push the ram downward steadily. They offer the best solution for deep drawing. You gain consistent force throughout the entire stroke. Operators can also adjust stroke lengths easily. Variable stroke needs strongly favor this design.
However, trade-offs exist. Hydraulic systems generally produce slower SPM. They cannot match mechanical speeds for simple blanking. Furthermore, they require vigilant fluid maintenance. Operators must actively monitor seals to prevent leaks. Temperature fluctuations can also affect oil viscosity and performance.
Servo motors represent the peak of modern engineering. High-torque motors connect directly to the drive shaft. This design eliminates the traditional flywheel entirely. They excel at producing complex parts. You can program highly specific stroke profiles. Operators program exact dwell times and variable speeds easily.
These models carry the highest initial capital expenditure. However, they offer significant operational advantages. They extend die life dramatically through controlled impact speeds. They reduce energy consumption because motors only draw power during movement. Finally, they provide maximum flexibility for diverse product runs.
Drive Technology Comparison Chart
Feature |
Mechanical |
Hydraulic |
Servo |
|---|---|---|---|
Force Delivery |
Bottom of stroke only |
Full stroke length |
Fully programmable |
Typical Speed (SPM) |
Very High |
Low to Medium |
Medium to High |
Primary Application |
High-speed blanking |
Deep drawing |
Complex progressive dies |
Maintenance Needs |
Clutch and brake wear |
Fluid and seal checks |
Minimal mechanical wear |
A bare machine cannot operate efficiently alone. It requires peripheral equipment to sustain output. You must integrate coil feeders smoothly. Straighteners remove memory from heavy metal coils. Scrap conveyors remove waste automatically. These components combine to form a cohesive metal stamping production line. Verifying compatibility matters immensely. The feeder speed must match the maximum SPM perfectly. Misalignment here causes catastrophic material jams. Communication between these separate units must remain instantaneous.
Changeover downtime destroys profitability. Single Minute Exchange of Dies (SMED) principles dictate rapid transitions. You must assess the tooling clamping systems. Hydraulic clamps secure massive dies in seconds. Mechanical bolting takes far too long. Evaluate die lifters carefully. Pneumatic rollers allow operators to slide heavy tools effortlessly. Bolster extensions provide a staging area outside the frame. These features drastically reduce labor hours during product switches.
The brain of your punch press machine matters. Programmable logic controllers (PLCs) handle all automation timing. You must evaluate the PLC architecture thoroughly. Modern factory floors rely on data. The controller must offer compatibility with your ERP or MES software systems. Preventative maintenance sensors provide crucial data streams. They monitor bearing temperatures and vibration levels. This connectivity allows engineers to predict failures before they happen. Closed-loop networks keep operations secure and efficient.
Physical installation requires extreme care. Heavy machinery demands a robust concrete foundation. You must address the exact physical footprint early. Compare the machine dimensions against your floor plan. Ceiling height presents another common oversight. Maintenance crews need overhead clearance for ram removal. Crane access remains mandatory for heavy die loading. Finally, address vibration isolation requirements. Massive impacts send shockwaves through the facility floor. Isolation pads protect surrounding precision equipment from these disruptive tremors.
Off-the-shelf solutions rarely fit complex applications perfectly. You need a partner capable of advanced engineering. Assess whether the manufacturer can modify standard designs. Sometimes you need enhanced frame rigidity for specialized alloys. Custom control systems may be necessary for unique safety protocols. Evaluate their ability to integrate custom safety light curtains. A competent punch press manufacturer welcomes specific operational limits. They should propose engineering solutions, not just sell inventory.
A broken machine halts all downstream assembly. After-sales support defines the true value of your supplier. You must investigate their spare parts inventory. Domestic parts stocking prevents disastrous downtime. International lead times can stretch into weeks or months. Verify their service level agreements strictly.
Ask about guaranteed technician response times.
Confirm the availability of local field service engineers.
Check if they offer remote diagnostic troubleshooting.
Request a list of recommended spare parts to keep on-site.
Operator safety supersedes all production metrics. Equipment must meet strict regional safety protocols natively. Look for OSHA compliance in North America. Check for ANSI B11.1 adherence. European facilities require precise CE marking. Third-party retrofits often cause integration headaches. They can also void original warranties. Ensure the manufacturer integrates redundant safety valves. Dual-valve systems prevent accidental ram drops. Robust safety features should come standard straight from the factory.
Marketing brochures highlight theoretical maximums. Reference checking reveals operational realities. You must verify the manufacturer's track record independently. Request detailed case studies from similar industries. Focus specifically on machine uptime data. Ask references about their mean time between failures (MTBF). Similar production environments provide the best comparison. Ask references how the supplier handles unexpected breakdowns. A reliable supplier maintains strong relationships years after the initial installation.
Selecting the optimal equipment demands rigorous engineering analysis. You must match the drive technology precisely to your part complexity. Mechanical setups dominate high-speed blanking. Hydraulic systems excel at deep drawing. Servo motors provide unmatched programmability. Always size your tonnage requirements carefully. Include a mandatory safety buffer to accommodate material variation. Prioritize manufacturer support just as highly as technical specifications. A brilliant design fails without accessible spare parts.
Take immediate action to formalize your procurement process. Compile a comprehensive part portfolio first. Include the most difficult-to-stamp parts in this document. Share these specific geometries with shortlisted vendors. Request actual run-off tests using your proprietary materials. Demand finite element analysis (FEA) reports verifying frame rigidity. Taking these structured steps guarantees a successful integration into your facility.
A: Punching represents a specific shearing operation. It removes material to create holes or cutouts. Stamping serves as a much broader category. It encompasses various processes including forming, drawing, bending, coining, and punching. Every punch is a stamp, but not every stamp is a punch.

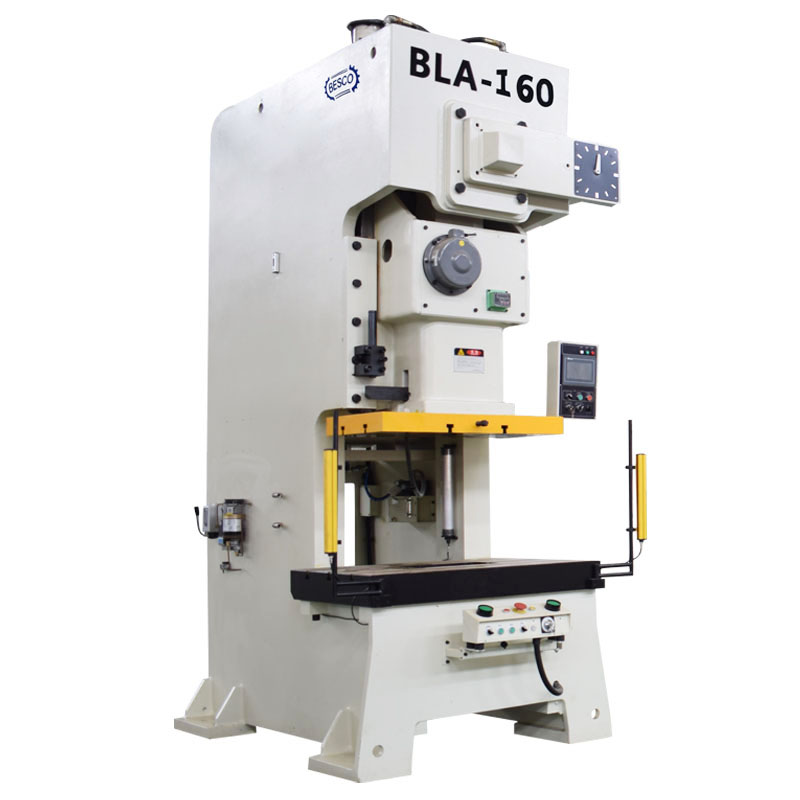

A: Gap-frames offer excellent three-sided tooling access. They suit smaller, single-station operations well. However, they flex under heavy loads. Straight-side models enclose the tooling entirely. They offer maximum rigidity. They suit progressive dies and high-tonnage applications perfectly.
A: Yes, retrofitting is highly common. However, integration requires careful engineering. You must sync legacy feed systems precisely. Older straighteners and mechanical uncoilers often struggle to match the highly responsive acceleration of modern servo controls.
A: Standard inventory machines usually ship within a few months. Complex requirements change this timeline drastically. Highly customized, high-tonnage equipment typically requires 9 to 18 months. This accounts for engineering design, casting, assembly, and rigorous run-off testing.
