Hydraulic press machines operate on Pascal's Law: pressure applied at any point in a closed fluid system is transmitted equally throughout. A hydraulic pump pressurizes hydraulic fluid to drive a piston, generating enormous linear mechanical force that acts through tooling to form the workpiece.
Core Hydraulic System Components:
Hydraulic Pump: Converts mechanical energy into hydraulic energy to circulate fluid
Hydraulic Cylinder: Converts hydraulic energy into piston linear motion (the pressing stroke)
Control Valve Assembly: Precisely regulates pressure, flow, and direction
Hydraulic Reservoir: Stores and cools hydraulic fluid
Electrical Control System: PLC programming controls pressure curves, stroke, speed, and dwell time
Core Advantages of Hydraulic Presses:
Full-Stroke Constant Pressure: Delivers maximum rated pressure throughout the entire downstroke — unlike mechanical presses that reach peak force only near bottom dead center
Stepless Speed/Pressure Adjustment: Speed and pressure are infinitely adjustable, suited for precision forming
Built-In Overload Protection: Safety relief valve activates when system pressure exceeds limits, protecting dies and equipment
Ideal for Deep Drawing and Thick Plate: The full-stroke force characteristic makes it irreplaceable for operations requiring sustained pressure that mechanical presses cannot match
Type | Structure | Tonnage Range | Typical Applications |
|---|---|---|---|
C-Frame (Open-Side) | C-shaped frame; three-sided open access | 10–200 ton | Small part stamping, press fitting, correction |
H-Frame (Closed Four-Post) | Four-post guiding; high rigidity; large bed | 50–5,000 ton | Automotive sheet forming, large structural parts |
Single-Column Hydraulic | Compact structure; small footprint | 5–100 ton | Small workshops, toolrooms, press-fit operations |

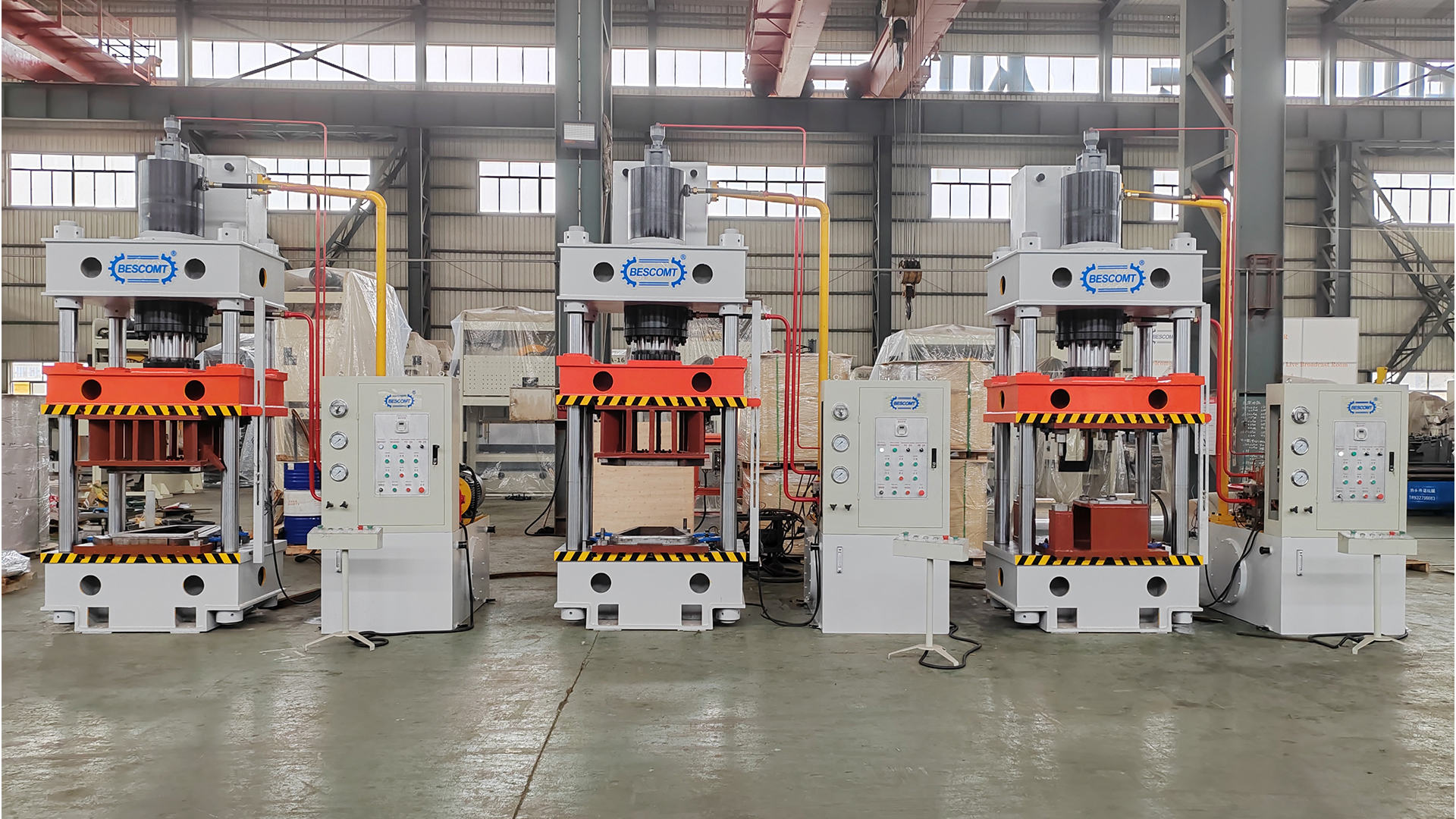

Four-Column Hydraulic | Balanced four-post guiding; large working area | 100–2,000 ton | Sheet deep drawing, rubber/powder compaction |
Servo Hydraulic | Servo motor drives hydraulic pump; energy-efficient and precise | 50–1,000 ton | Precision forming, EV components |
Hot Press / Isothermal Press | Integrated heating system for elevated-temperature forming | Custom per requirements | Composite materials, aerospace parts |
Selection Guidance:
Small press-fit or correction operations → C-frame or single-column (low cost, easy operation)
Large sheet deep drawing → Four-column hydraulic (large bed, high guiding precision)
Precision electronics or automotive parts → Servo hydraulic (high precision, 30–50% energy savings)
① Rated Pressure (Tonnage) The most fundamental parameter, determining maximum forming force. Selection principle: calculate the required process force, then select equipment with at least 1.3–1.5x safety margin to protect dies and extend equipment life.
Common tonnage reference points:
100 ton: Small-to-medium sheet drawing, press-fit operations
200–500 ton: Automotive components, large deep-drawn parts
500+ ton: Heavy industry components, powder metallurgy
② Working Stroke The piston travel distance from top dead center to bottom dead center. Stroke determines the maximum depth of formable parts; deep-drawn components require sufficient stroke length.
③ Bed Size (Table Size) The length × width dimensions of the working table, determining the maximum die footprint that can be mounted. Bed size should exceed the die outer dimension by at least 50–100mm on each side for mounting and adjustment clearance.
④ Daylight (Open Height) The distance from the slide bottom face to the working table when the slide is at top dead center. Determines the die shut height range that can be accommodated.
⑤ Working Speed Divided into rapid advance speed (air stroke), working speed (forming), and return speed — affects production cycle time. Precision forming requires slower working speeds; high-volume output requires fast-acting hydraulic systems.
Question 1: What is the maximum forming force requirement for your workpiece? Must be calculated by engineers from product drawings — never estimated from experience alone. Basis: tensile strength × forming area (deep drawing) or blanking force = perimeter × thickness × shear strength.
Question 2: What is the maximum workpiece depth (drawing depth)? Depth determines stroke requirement; ensure the selected hydraulic press has at least 50–100mm more stroke than the maximum forming depth.
Question 3: What is your production volume target (parts/hour)? Hydraulic press speed typically ranges 10–50 SPM. If output requirements are high (>1,000 parts/hour), consider a fast-acting hydraulic press or evaluate whether a mechanical punch press is more appropriate.
Question 4: Do you need precise pressure monitoring and pressure hold (dwell) capability? Powder compaction, rubber forming, and composite material pressing require precise dwell time and pressure accuracy. Select proportional valves, servo systems, or dedicated pressure sensors accordingly.
Question 5: What are the spatial constraints of your working environment? Confirm workshop clear height (press + die loading clearance), floor load capacity, and installation footprint before finalizing equipment specifications.
Q1: How much maintenance does a hydraulic press require?
Key maintenance items: regular hydraulic oil change (approximately every 2,000 hours or annually), hydraulic seal inspection (leak prevention), hydraulic filter element cleaning, and guide column lubrication checks. Daily maintenance is relatively straightforward — request English-language maintenance manuals and a starter pack of common seal spare parts from the manufacturer.
Q2: Does hydraulic oil need to be drained before shipping?
Yes — for international shipping (especially sea freight), hydraulic oil is typically drained to reduce shipping weight and leak risk. The manufacturer should drain the oil before packaging and provide hydraulic oil specifications and recommended brands in the installation and commissioning instructions.
Q3: How to detect internal leakage in a hydraulic press?
Detection method: Pressurize the cylinder to rated pressure, shut off the hydraulic pump, and hold for 5–10 minutes while observing the pressure gauge. Significant pressure drop (>5% of rated pressure per minute) indicates internal leakage — inspect seals and hydraulic valves.
