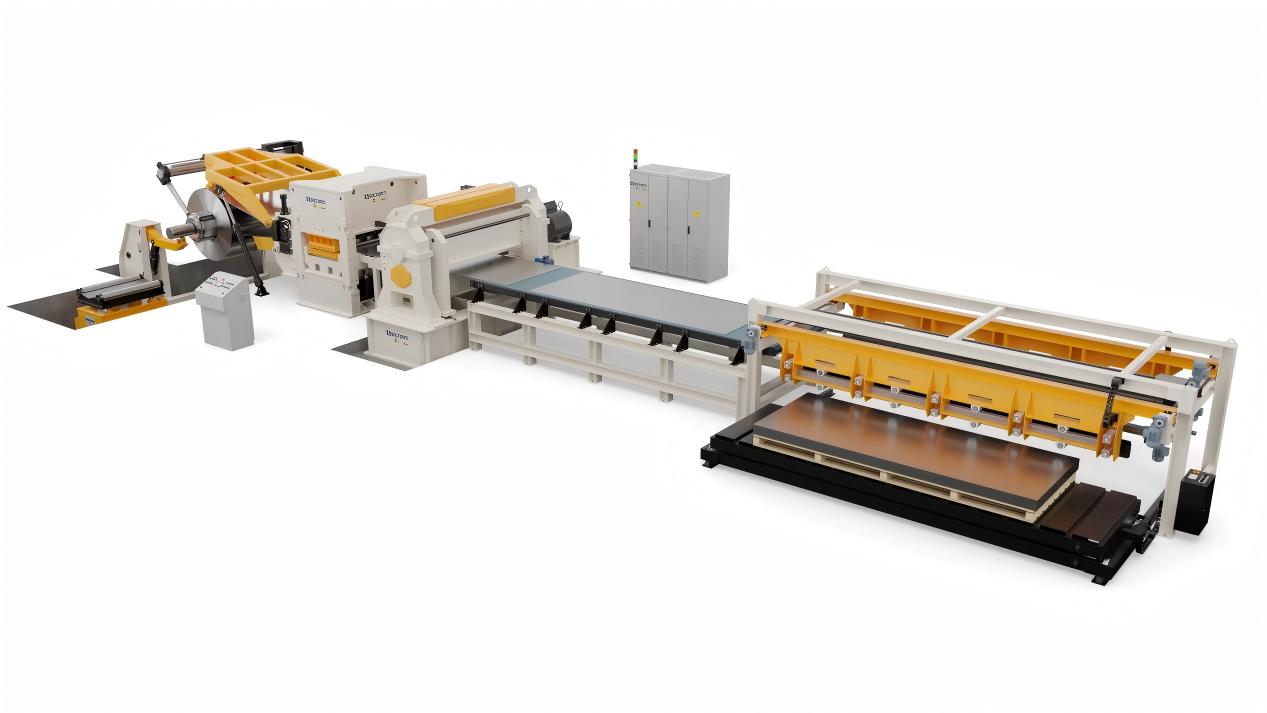

A cut-to-length line is used to uncoil, level, measure, and shear metal coils into flat sheets of required lengths, followed by automatic stacking. This line is suitable for cold-rolled steel, hot-rolled steel, silicon steel, tinplate, stainless steel, and various coated metal materials.
Main Components
A typical cut-to-length line consists of:
Loading car、Uncoiler、Leveler、Feeding mechanism、Shear、Conveyor、Stacker
An optional slitting unit can be integrated to slit the sheet into narrower widths before cutting to length. The entire line is a high-performance electro-hydraulic integrated system.
Key Advantages
High Automation: PLC-controlled, easy and reliable operation, minimal manual intervention.
Precision Cutting: Shearing accuracy up to ±0.3mm, excellent flatness.
Neat Stacking: Automatic stacker ensures well-aligned piles for easy handling.
High Speed: Maximum feed speed up to 70m/min, up to 100 strokes per minute.
Selected Technical Parameters
Model | Thickness(mm) | Width(mm) | Accuracy(mm) | Max Speed(m/min) | Max SPM | Coil Weight(ton) |
2x650 | 0.3-2.0 | 100-650 | ±0.3 | 70 | 100 | 7 |
2x1600 | 0.2-2.0 | 500-1600 | ±0.3 | 60 | 50 | 7/15 |
3x2000 | 0.5-3.0 | 900-2000 | ±0.3 | 45 | 40 | 30 |
8x2000 | 2.0-8.0 | 900-2000 | ±1.0 | 20 | 20 | 30 |
16x2000 | 4.0-16.0 | 900-2000 | ±2.0 | 15 | 8 | 30 |
Contact Besco sales team for a complete model list and detailed specifications. | ||||||
A slitting line is designed to uncoil, slitting (longitudinally shear), and rewind metal coils into narrower strips. It is suitable for cold/hot rolled carbon steel, silicon steel, tinplate, stainless steel, and coated metals.
Main Components
The line includes: loading car, uncoiler, pinch leveler, shear, slitter, scrap winder, tension unit, recoiler, and unloading device.
Key Features
Interchangeable Slitter Head: Quick tool change, reduces downtime.
Self-Synchronizing Speed: All sections automatically match speeds for stable operation.
Optional EPC System: EPC edge/center guiding for easy loading and higher shearing accuracy; EPC edge control ensures neat rewinding, especially for wide coils.
Selected Technical Parameters
Model | Thickness(mm) | Width(mm) | No. of Strips | Speed(m/min) | Coil Weight(ton) |
1x350 | 0.1-1.0 | 80-350 | 8-30 | 50-100 | 3 |
2x800 | 0.2-2.0 | 80-800 | 6-30 | 50-150 | 7 |
2x1600 | 0.3-2.0 | 500-1600 | 12-30 | 50-200 | 7/15 |
6x1600 | 1.0-6.0 | 900-1600 | 6-30 | 30-80 | 30 |
12x1600 | 2.0-12.0 | 900-1600 | 5-30 | 20-50 | 30 |
Extensive Experience: Years of design and manufacturing in metal coil processing equipment.
Global Service Network: Installation, commissioning, training, and remote technical support.
