Shovel Production Line & Slitting Machine — Full Equipment Walkthrough

Kazakhstan Clients Visit Besco — Shovel Production Line & Slitting Machine: A Full Factory Walkthrough

Not a Brochure — A Running Factory

When international buyers decide to fly thousands of kilometers to Zibo, Shandong, that decision alone says everything: they are not looking for a PDF. They want to see machines run. Recently, business partners from Kazakhstan visited Bescomt for an in-depth factory inspection. The focus: our Shovel Production Line and Slitting Machine.

1. Why Kazakhstan Needs a Shovel Production Line
The Central Asian market has its own distinct demand profile. As the largest economy in Central Asia, Kazakhstan is aggressively building local manufacturing capacity. Shovels are in steady demand across agricultural land development, construction sites, and infrastructure projects. Local mass production reduces procurement costs while creating a regional competitive advantage.
Based on regional product standards, Russia and Central Asia requires:

This means a production line configured for Central Asia must handle thicker, harder material — placing higher demands on press tonnage and die durability.

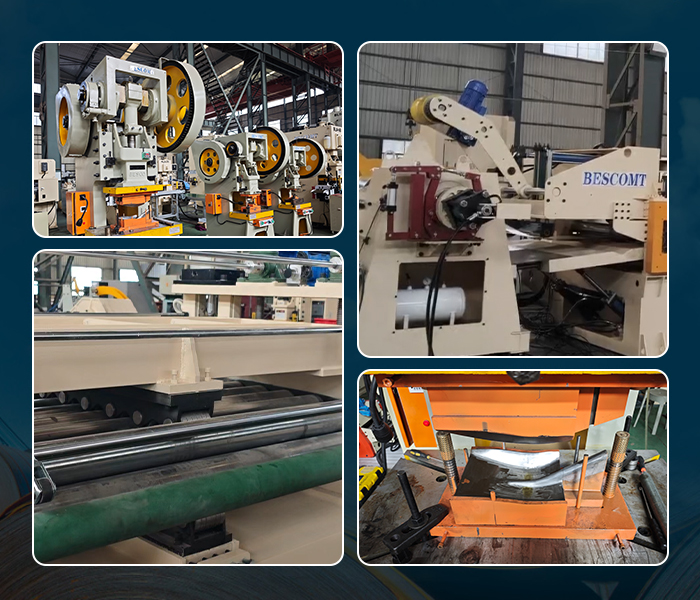

2. Shovel Production Line: Coil to Finished Head in Five Steps
Clients spent significant time walking through the complete line. Here is the full process, step by step:

Step 1 — Blanking + Punching
Cut and punch the steel coil into the basic T-shaped blank of the shovel head. Equipment options:
125–200 ton mechanical press — high efficiency, ideal for stable batch production
125–200 ton hydraulic press — consistent pressure, preferred for manganese steel
Laser cutting machine — flexible production for multiple shovel specifications

Step 2 — Heating (Optional)
If manganese steel is used, an electric or gas-fired furnace is required to pre-soften the material before forming. If Q235 standard plate is used — no heating is needed. This step and its associated equipment investment can be eliminated.

Step 3 — Shovel Head Forming
Press the pre-cut blank into the exact shape and back-angle of the shovel head. The rear-face curvature is the technical centerpiece of this step. The demonstration unit — our 160-ton four-column hydraulic forming press — delivered consistent geometry with fast die changeovers.

Step 4 — Rounding (Tube Forming)
A smaller-tonnage press bends the rear of the formed shovel head into a cylindrical socket for handle connection — compatible with wooden, fiberglass, or full-steel handles.

Recommended equipment:
Preferred: 80-ton mechanical press
Minimum viable: 63-ton mechanical press

Step 5 — Logo Stamping
A 40-ton punch press stamps the brand logo onto the shovel head surface or end. OEM custom mold design is available for clients requiring proprietary brand marks or unique shovel shapes.

3. Shovel Handles: Types and Assembly
Handle selection directly affects the product's market positioning. Three handle types are standard across international markets:

Grip types:
D-Grip — single-hand control, non-slip, compact for storage. Ideal for short-handle shovels.
Triangle Grip — stable force transfer, better directional control. Preferred for heavy-duty adult use.

4. Slitting Machine: The Upstream Link in Shovel Production
A slitting machine longitudinally cuts wide metal coil into narrow strips at precise widths. In the shovel production chain, the slitting machine handles the critical first-pass processing of bulk steel coil — converting it into ready-to-stamp strip stock. Its precision directly determines blanking efficiency and downstream yield rates.

5. Quality Assurance & After-Sales Support
For industrial buyers, after-sales infrastructure often matters as much as the machine itself. Our standard support package includes:
·1-year full machine warranty — critical wear parts kept in permanent stock

·Installation videos + trilingual operation manuals (Chinese / English / Russian)

·Optional on-site engineer commissioning and operator training

·OEM mold design available for custom shovel shapes and brand logos
·Remote diagnostics system online 24/7 — 72-hour technical response guarantee

Contact us today for a free production line design based on your target market (North America, Europe, Russia, Central Asia, Southeast Asia, or Africa) — and receive a detailed shovel production line cost breakdown within 24 hours.
