The Complete Guide To Metal Stamping Production Lines: Types, Processes & Buying Criteria

What Is a Metal Stamping Production Line?

A metal stamping production line is an integrated automated manufacturing system combining a stamping press (punch press or hydraulic press), a feeding system, stamping dies, a collection unit, and a control system. The fundamental principle is to apply controlled directional force through tooling to plastically deform flat metal sheets or coils into the required component shapes.

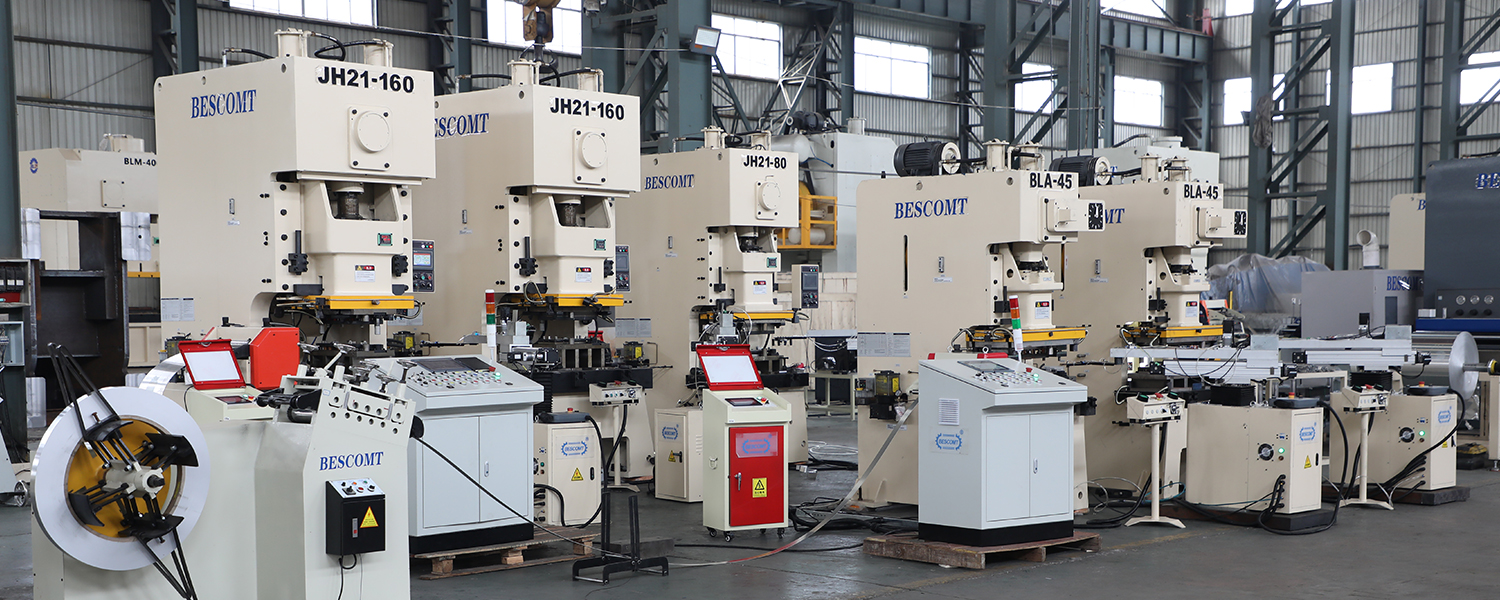

Unlike a standalone press, a "production line" emphasizes continuous, automated high-volume output. A complete stamping production line automates the full workflow — from raw material loading, leveling, feeding, and stamping to part sorting and collection — dramatically reducing labor costs and improving part-to-part consistency.

Typical metal stamping production line workflow:

Raw material (coil/blank) → Decoiler → Straightener → Auto Feeder → Stamping Press (with die) → Sorting/Collection → Finished parts

The core advantages of a stamping production line are high speed, high precision, high consistency, and extremely low unit cost at scale.

4 Major Types: A Comparative Overview

Selection Logic: Small parts + high volume → Progressive die line. Large parts requiring individual transfer → Transfer die line. Deep drawing or thick material → Hydraulic line. Single-product end-to-end automation → Custom compound line.

Core Process Steps in Metal Stamping

Regardless of production line type, the core stamping workflow encompasses these fundamental operations:

① Blanking: Shearing the required external contour from a sheet or coil, producing a blank (the starting workpiece for forming).

② Punching / Piercing: Creating holes in the material; the removed portion is scrap and the remaining part is the workpiece.

③ Bending: Applying force along a straight axis to deform the sheet, producing brackets, channels, and profiles.

④ Drawing / Deep Drawing: Pressing a flat blank into a die cavity to form a hollow cup, cylinder, or box shape — depth can exceed the diameter.

⑤ Flanging: Forming upright flanges at hole edges or sheet edges to increase stiffness or enable assembly connection.

⑥ Sizing / Coining: Applying high pressure to a formed part to improve dimensional accuracy and eliminate springback.

In a fully automated production line, these operations are linked in sequence through a progressive die or multi-station press, capable of producing tens to hundreds of parts per minute within a single stroke cycle.

Key Equipment Components of a Complete Line

BESCOMT supplies all of the above production line equipment and provides complete stamping line solutions tailored to customer product drawings — covering equipment selection, die design, and line layout in a single-source delivery.

Typical Industry Applications

Automotive: Stamping lines are the backbone of automotive manufacturing. Body outer panels (doors, hoods), chassis structural parts (crossbeams, brackets), and oil filter shells all rely on high-precision stamping production lines. BESCOMT supplies a fully automatic Automobile Oil Filter Metal Shell Making Machine — a hydraulic press combined with 5 single-stage dies — delivering end-to-end automation from feeding to forming.

Construction Hardware: Hinges, lock hardware, and junction boxes demand extremely high dimensional consistency. Progressive die lines deliver near-zero defect rates through their closed-loop forming sequence. BESCOMT's CE-certified European/American Standard Junction Box Stamping Production Lines are exported in volume to European and North American markets.

Food Packaging: Thin-material products such as aluminum foil containers and lids require high-speed lines paired with specialized aluminum foil dies. BESCOMT's Aluminum Foil Food Container (Lid) Making Machine complies with national food hygiene standards and supports customized hole patterns and dimensions.

Fasteners: Cold forging plus thread rolling for bolts and nuts is a classic compound stamping line application. BESCOMT's High-Productivity Bolt and Nut Making Machine integrates multi-station forming and thread rolling into one continuous system — ideal for fastener manufacturers scaling production capacity.

Agriculture / Grain Processing: Grain screen plates require high-density hole punching in metal sheet, relying on dedicated punching production lines. BESCOMT's Corn Screen Plate Punching Line supports customization of hole shape, size, and distribution pattern.

6 Evaluation Dimensions When Buying a Stamping Line

① Product Specification Alignment Core line parameters — tonnage, bed size, feed pitch, and die shut height — must precisely match the target product's material thickness, blank dimensions, and geometry complexity. Provide product drawings or samples at the inquiry stage so the manufacturer's engineers can confirm parameter compatibility.

② Automation Level and Output Capacity Assess target production volume (parts/day) and labor costs to choose between fully automatic and semi-automatic. Fully automatic lines carry higher upfront investment but drive unit costs down rapidly as volume scales; semi-automatic lines suit factories with high product mix and relatively smaller batch sizes.

③ Die Design and Delivery Capability Integrated "machine + die" delivery is the lowest-risk procurement model. Confirm whether the manufacturer has an in-house die design and machining team or relies on external die sourcing. BESCOMT maintains its own die design and fabrication capability, ensuring machine-die compatibility precision.

④ Certifications and Quality Systems CE certification is the market entry passport for Europe; ISO quality management systems are a key indicator of manufacturing consistency. Request original certificates before contract signing.

⑤ After-Sales Service Infrastructure Evaluate warranty period, spare parts delivery lead time, remote technical support response speed, and on-site service terms. Every day of machine downtime is a real financial loss — the after-sales service model directly determines Total Cost of Ownership (TCO).

⑥ Reference Cases and Factory Verification Request actual operation videos or customer case studies for similar equipment, and arrange a factory visit where possible. If in-person visits are not feasible, commission independent audits from third-party agencies such as SGS or Bureau Veritas.

Fully Automatic vs Semi-Automatic: Matching to Your Output

Decision Guidance:

·Single product type, high daily output → Fully automatic line; typical ROI period 3–5 years

· High product mix, flexible orders → Semi-automatic line with quick-change die system to lower the entry threshold

New/startup factory → Start with semi-automatic, validate the market, then upgrade; select equipment with expansion interfaces
