Micro-misalignments carry massive hidden costs in high-speed sheet metal fabrication. Even a 0.05mm deviation triggers rejected batches, accelerated tool wear, and catastrophic tool breakage. Modern fabrication facilities demand continuous, high-tolerance output. Reactive maintenance strategies inevitably degrade punching accuracy, accelerate mechanical wear, and increase unplanned downtime. Waiting for a machine to break guarantees production bottlenecks and compromised part quality.

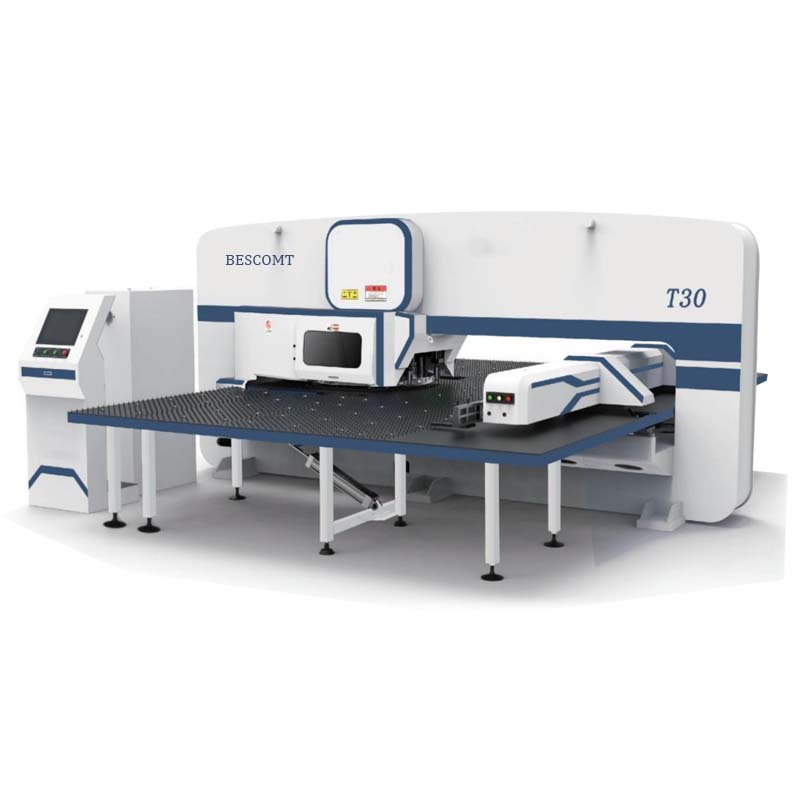

A systematic, preventative approach to turret punch press maintenance shifts the focus from fixing breakdowns to preserving geometric precision, extending tooling life, and maximizing the total return on investment for your turret punch press machine. By implementing rigorous upkeep protocols, fabrication shops ensure every punched hole meets exact dimensional tolerances while significantly reducing the frequency of consumable replacements.
Precision Requires Proactivity: Stable punching accuracy relies on strict adherence to daily, weekly, and monthly calibration schedules, specifically focusing on turret alignment, auto-index station synchronization, and die clearances.
Technology Dictates Upkeep: A servo CNC turret punch press requires fundamentally different diagnostic, electrical, and mechanical maintenance routines compared to traditional hydraulic systems, impacting long-term operational efficiency.
Tooling is the Vanguard: Over 50% of accuracy issues stem from neglected tooling maintenance rather than structural machine failure; regular sharpening, demagnetization, and proper guide lubrication are non-negotiable.
Supplier Support is Critical: Evaluating a CNC punch press machine supplier must include a thorough audit of their after-sales service, OEM parts availability, and preventative maintenance training programs.
Establishing baseline metrics is the first step in evaluating the health of a turret sheet punching machine. A well-maintained system consistently produces parts with zero burrs, uniform hole dimensions, and optimal sheet flatness. Precise angular orientation must be maintained across all auto-index stations. When these criteria are met, secondary operations like deburring and leveling are minimized, directly improving production throughput and part quality. Operators should monitor edge quality closely. A clean, straight shear zone followed by a uniform break indicates proper alignment and clearance. Any deviation from this profile signals an immediate need for mechanical inspection.
Shop floor managers must track scrap rates directly tied to dimensional inaccuracies. If a batch of electrical enclosures fails quality control due to hole locations drifting by 0.1mm, the root cause usually traces back to skipped maintenance routines. Documenting these failures provides the data needed to justify the time spent on preventative care. You cannot manage what you do not measure, and punching accuracy is the ultimate metric of machine health.

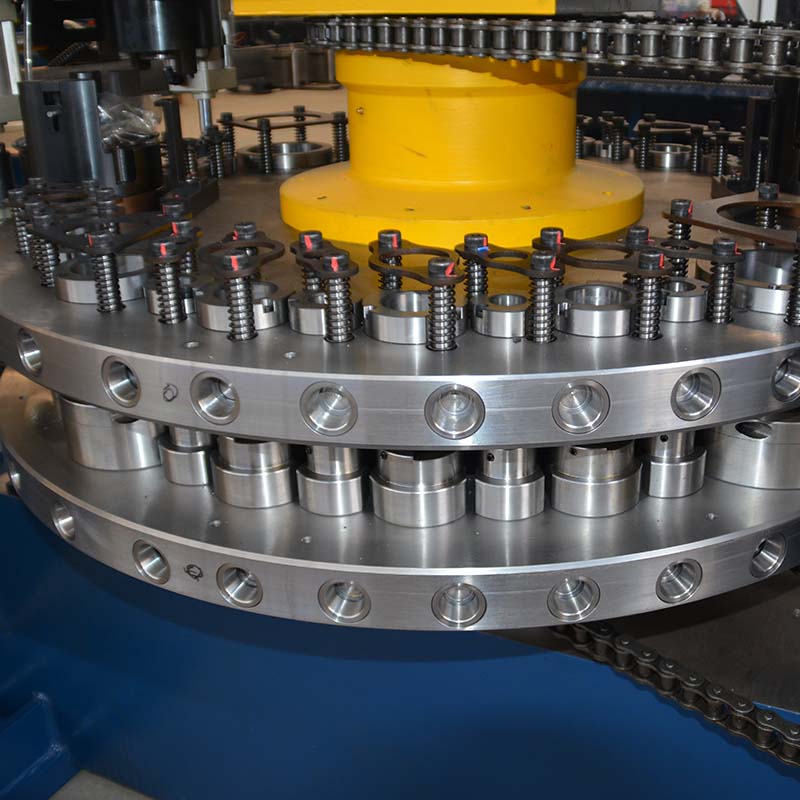

Neglected maintenance directly causes concentricity errors between the punch and the die. When the upper and lower turrets lose alignment, the punch enters the die off-center. This uneven clearance creates excessive scrap rates and forces costly part rework. Over time, this misalignment damages the turret bores themselves. Repairing or sleeving damaged turret bores requires significant machine downtime and expensive specialized labor, far exceeding the cost of routine alignment checks.
Tolerance degradation also impacts downstream assembly. If punched holes are out of position, hardware insertion machines jam, and press brake operators struggle to gauge parts accurately. The compounding effect of a misaligned punch press ripples through the entire fabrication shop. Maintaining strict concentricity ensures that the punch enters the center of the die every single stroke, preserving both the tooling and the machine frame.
There is an exponential relationship between machine alignment and tooling wear. Misaligned turrets force the punch to shear metal unevenly, creating lateral stress on the tool body. This condition can reduce tool life by up to 40%, driving up consumable costs dramatically. Frequent tool replacements not only inflate operational budgets but also introduce constant micro-interruptions into the production schedule as operators stop to swap out dulled punches and dies.
Consider the cost of a standard thick turret punch and die set. If poor alignment forces you to replace that set twice as often, the annual tooling budget inflates rapidly. Furthermore, lateral deflection during the punching stroke causes the punch tip to rub against the die matrix, generating excessive heat and micro-welding material onto the tool edge. This galling further degrades hole quality and requires aggressive polishing to correct.
Slug pulling occurs when waste material is drawn back up through the die and onto the sheet surface. If the next punch strikes this loose slug, it ruins the part, damages the tool, and can severely impact the machine's striker. Poor maintenance of slug-retention systems, incorrect die clearances, and magnetized tooling are the primary culprits. Keeping vacuum systems clear and ensuring dies have proper slug-control geometry prevents this highly destructive phenomenon.
Operators often try to solve slug pulling by applying excessive lubrication, which only creates a sticky mess that traps more debris. The correct approach involves verifying die clearance, ensuring the die has a proper slug-retention profile (like a rooftop shear or constriction point), and confirming the tool is fully demagnetized. A single pulled slug can destroy a $500 tool and scrap a $50 sheet of material in a fraction of a second.
Operators are the first line of defense against machine degradation. End-of-shift tasks must be standardized and strictly enforced to maintain baseline reliability. A visual inspection takes less than ten minutes but prevents hours of downtime.
Clear metal slugs, abrasive dust, and debris from the die base and turret table using a dedicated industrial vacuum. Never use compressed air, as it drives metal dust into the linear guides and bearings.
Check auto-lubrication reservoirs and refill with OEM-specified fluids. Verify that the oil lines are not crimped or leaking.
Inspect slug-suction (vacuum) systems to ensure proper draw pressure is maintained. Empty the slug bins before they overflow and back up into the chute.
Visually inspect the striker for abnormal wear, galling, or mushrooming. A damaged striker transfers uneven force to the tool canister.
Verify workholder clamps for proper grip pressure, check jaw wear, and test clamp sensors for responsiveness. Clean the clamp faces to prevent sheet slippage.
Deeper mechanical inspections prevent creeping inaccuracies. Weekly and monthly routines focus on the drive mechanisms and synchronization systems that dictate part precision. These tasks require a trained maintenance technician working alongside the operator.
Frequency | Component | Maintenance Action | Expected Outcome |
|---|---|---|---|
Weekly | Index Drive Mechanisms | Clean and inspect gears, remove grease mixed with metal dust. | Prevents binding and angular errors. |
Weekly | Timing Belts | Check tension and inspect for fraying or missing teeth. | Ensures accurate X/Y table positioning. |
Monthly | Pneumatic Systems | Verify pressures, drain moisture traps, check for air leaks. | Maintains consistent clamp and pin actuation. |
Monthly | Auto-Index Stations | Check backlash in drive gears, synchronize upper/lower stations. | Eliminates rotational drift on shaped tools. |
Monthly | Turret Alignment | Verify upper/lower concentricity using specialized alignment pins. | Prevents tool wear and die chipping. |
Auto-Index Station Synchronization is particularly demanding. You must check for backlash in the auto-index drive gears. Ensure the upper and lower index stations rotate in perfect alignment to prevent angular errors on punched features. Even a one-degree rotational error on a rectangular punch will create a noticeable step mark on a nibbled edge.
Long-term structural integrity requires comprehensive audits. Ground vibrations generated during high-tonnage punching naturally cause machines to shift over time. A machine that was perfectly level at installation will settle after millions of punching cycles.
Perform structural leveling checks quarterly. Adjust anchor bolts and inspect vibration-isolation pads to ensure the machine frame remains perfectly level. Bring in certified OEM technicians annually for laser alignment checks to verify the geometry of the entire X/Y table. Execute ball screw backlash adjustments to maintain precise sheet positioning. Finally, calibrate the ram-stroke mechanism to ensure consistent penetration depth and stripping force.
The underlying technology of the machine dictates its maintenance profile. Traditional hydraulic systems carry an intensive upkeep burden. They require regular hydraulic fluid changes, strict oil temperature control, frequent filter replacements, and continuous seal inspections to prevent leaks. Additionally, nitrogen accumulator precharge testing is necessary to maintain ram speed and force. Hydraulic oil degrades over time, losing its viscosity and accumulating micro-contaminants that score valve spools.
Conversely, a servo CNC turret punch press eliminates hydraulic fluids entirely. This shifts the maintenance focus toward electrical and mechanical precision. Upkeep involves inspecting electrical servo drives, monitoring regenerative braking systems, replacing electrical cabinet cooling filters, and lubricating linear motor pathways. Modern servo systems increasingly rely on software-based diagnostics, utilizing vibration sensors and motor torque monitoring to predict failures before they occur. If a servo motor draws higher amperage than normal to execute a standard punch, the software flags a potential mechanical bind in the ram assembly.
Understanding component lifecycles allows for accurate budgeting and scheduling. High-wear parts have predictable lifespans based on operating hours and the thickness of the material being processed. Strike cylinders and index pins may require replacement every 10,000 to 15,000 hours, while linear guides and ball screws can last significantly longer if kept clean and lubricated.
Workholder clamp jaws often need quarterly replacement in high-volume environments. Facilities must evaluate the trade-offs between running machines to failure versus adopting scheduled component replacement through predictive maintenance. Replacing a $50 clamp jaw on schedule prevents a $500 sheet of material from slipping and scrapping an entire nest of parts.
A rigid sharpening framework is mandatory. Tools should be sharpened based on hit counts, material types, and visual punch radius degradation. Punching stainless steel dulls tools much faster than aluminum, requiring more frequent grinding. Waiting until a tool sounds loud or pulls a slug means you have waited too long. Establish a baseline hit count for each material and pull the tools for inspection before they fail.
Post-grinding best practices dictate the success of the sharpened tool. After sharpening on a surface grinder, tools must be demagnetized to prevent slug pulling. Operators must also apply the correct shim thickness to compensate for the removed material, maintaining the proper shut height. Furthermore, maintaining precise die clearance prevents galling, reduces the required stripping force, and protects the machine's ram from excessive strain.
Material Type | Recommended Die Clearance (% of Material Thickness) | Notes |
|---|---|---|
Aluminum (Soft) | 15% - 20% | Prone to galling; requires sharp tools and lubrication. |
Mild Steel (Cold Rolled) | 20% - 25% | Standard baseline for most fabrication shops. |
Stainless Steel | 25% - 30% | High shear strength requires larger clearance to prevent tool breakage. |
Tool canisters and guides require regular disassembly, cleaning, and lubrication. Metal dust mixed with oil creates a sticky residue that causes tools to bind, preventing smooth vertical travel. Guides should be cleaned with specialized solvents and lubricated according to manufacturer specifications. A binding tool canister forces the stripper spring to work harder, eventually leading to spring failure and jammed turrets.
When using specialty-coated tooling, such as TiCN or ZrN, operators must adjust their maintenance routines. These coatings reduce friction and extend tool life but may require different lubrication intervals or specific dry-film lubricants to perform optimally. Never use heavy grease on coated tools, as it traps abrasive particles against the hard coating, accelerating wear on the softer turret bores.
Inconsistent maintenance practices between shifts rapidly degrade machine reliability. When Operator A cleans the turret thoroughly but Operator B skips the routine, abrasive debris accumulates, leading to premature wear. High turnover exacerbates this issue, as institutional knowledge is lost. New operators often inherit bad habits from departing staff, creating a downward spiral of machine care.
To mitigate this risk, facilities must develop highly visual standard operating procedures (SOPs). Laminate these guides and attach them directly to the machine. Mandate digital maintenance logs integrated into the facility's Computerized Maintenance Management System (CMMS). This ensures accountability and creates a permanent record of machine care. Require supervisors to sign off on weekly maintenance checklists to enforce compliance.
More lubrication is not always better. Applying too much grease or using the wrong viscosity attracts abrasive metal dust generated during punching. This combination creates a highly destructive grinding paste that destroys bearings, linear guides, and turret bores. Over-greased auto-index gears will pack with debris until the teeth skip, ruining station alignment.
Mitigate this by specifying exact lubricant types, distinguishing between lithium-based greases and synthetic oils, as well as precise volumes and application intervals dictated by the manufacturer. Train operators to wipe away excess grease immediately and to keep lubrication points sealed against environmental contaminants. Use dedicated grease guns for different lubricant types to prevent cross-contamination.
When procuring new equipment, the initial purchase is only the beginning. Buyers must audit potential suppliers on their regional after-sales infrastructure. A reliable CNC punch press machine supplier should offer guaranteed response times and maintain a robust local spare parts inventory. Immediate access to critical components, such as servo motors, index gears, and specialized sensors, is vital to minimizing unplanned downtime. Ask for references from local shops to verify the supplier's actual response times versus their sales promises.
Proprietary tooling systems lock facilities into expensive, single-source ecosystems. Ensure the supplier supports standardized tooling styles, such as Thick Turret or Thin Turret configurations. Standardized tooling guarantees readily available replacements, fosters competitive pricing among tooling manufacturers, and ensures broad aftermarket support for specialty shapes and forming tools. A machine that accepts standard tooling allows you to leverage your existing tooling inventory, reducing the initial setup costs.
The best suppliers act as long-term operational partners. Evaluate suppliers based on the comprehensiveness of their hands-on maintenance training provided during machine commissioning. Operators must understand both mechanical adjustments and software diagnostics. Prioritize suppliers offering proprietary predictive maintenance software with IoT integration. These systems monitor real-time torque loads, vibration levels, and temperature metrics, alerting operators to mechanical anomalies long before they manifest as punching inaccuracies.
Turret punch press maintenance is a direct driver of product quality, operational stability, and overall factory profitability. Neglecting routine calibration and tooling care leads directly to rejected parts and expensive mechanical failures. When upgrading equipment, buyers must weigh the lower maintenance burden of modern servo-driven systems against initial capital expenditures, always prioritizing suppliers with robust local service ecosystems and comprehensive training programs.
Audit your current maintenance logs to identify gaps in daily and weekly operator routines.
Download and implement a standardized preventative maintenance checklist tailored to your specific machine model.
Schedule a comprehensive machine capability assessment and laser alignment check with a certified OEM technician.
Establish a strict tooling sharpening and demagnetization schedule based on hit counts and material types.
A: Operators should perform monthly visual and mechanical alignment checks on high-use stations using specialized alignment tools. Additionally, annual laser calibrations by certified technicians are required to verify the overall geometry and structural leveling of the machine.
A: Excessive burrs are typically caused by dull tooling or using an incorrect die clearance for the specific material thickness. Nibbling marks often indicate upper and lower turret station misalignment or excessive backlash in the auto-index drive gears.
A: A servo CNC system eliminates hydraulic fluid, filters, and valves. Maintenance focuses instead on electrical diagnostics, monitoring servo motor health, cleaning electrical cabinet filters, and ensuring precise mechanical lubrication of linear pathways.
A: Avoid heavy greases that attract abrasive metal dust. Use light, OEM-specified machine oils or dry-film lubricants depending on the specific punching application and material to ensure smooth vertical travel without creating a grinding paste.
A: With rigorous preventative maintenance, a high-quality machine can last 15 to 20+ years. However, the electrical control systems and software may require retrofitting or upgrading before the heavy mechanical frame degrades.
A: Galling is caused by a breakdown in lubrication, insufficient die clearance, or punching highly adhesive materials like aluminum without proper tool coatings. Ensure tools are properly lubricated and consider using TiCN or ZrN coated punches.
A: Worn clamp jaws lose their grip pressure, allowing the sheet metal to slip during rapid X/Y table acceleration and deceleration. This slippage results in severe registration errors and dimensional inaccuracies across the entire punched part.
