Specifying the correct press tonnage is the most critical engineering decision when investing in an aluminum foil container making machine. This single parameter directly dictates production capacity, tooling lifespan, product quality, and capital expenditure. Miscalculating tonnage requirements leads to two costly extremes. Under-sizing causes incomplete forming, premature machine wear, and stalled production runs. Over-sizing results in wasted capital, excessive energy consumption, and inefficient floor space utilization. To build a profitable and scalable production line, manufacturers must evaluate tonnage not as a standalone metric, but as a dynamic calculation based on mold cavities, foil thickness, container dimensions, material yield strength, and long-term scaling goals. We will break down exactly how to calculate these forces and match them to your specific manufacturing requirements.

  • Cavity Count Dictates Baseline Tonnage: As a general rule, shaping a single container requires 2 to 5 tons of localized force. Industry benchmarks typically require 45 tons for double-cavity molds, 80 tons for four-cavity molds, and 130+ tons for five-to-six cavity configurations.

  • Material Specifications Matter: Foil thickness (ranging from 0.03 mm for wrinkle-wall to 0.20 mm for smooth-wall) and alloy grade fundamentally alter the required blanking and drawing forces.

  • System Synergy is Required: The press tonnage must align perfectly with the aluminum foil container mold dimensions and the speed of the stamping press feeder to ensure continuous, jam-free operation.

  • The 20% Rule: Engineers standardly apply a 20% safety margin above the calculated maximum force requirement to prevent mechanical fatigue and accommodate future tooling variations.

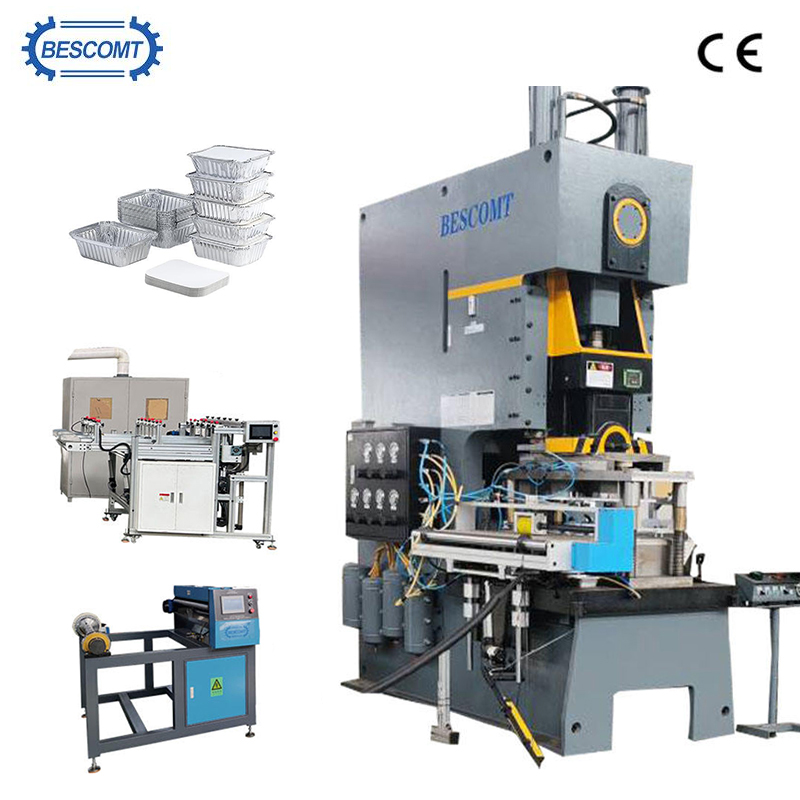

The Physics of Foil Stamping: Why Tonnage Matters in an Aluminum Foil Container Press Machine

Defining tonnage in foil packaging requires understanding the mechanical realities of the stamping process on the shop floor. Tonnage represents the maximum rated force the press can exert during the bottom of its stroke without deflecting. This rigidity ensures precision manufacturing and strict quality control. When an aluminum foil container press machine cycles, it executes a complex sequence of shearing and drawing within fractions of a second. If the frame deflects under peak load—often called "yawning" in C-frame presses—the tooling misaligns. This leads to immediate product defects, uneven rims, and rapid die wear.

Every stroke involves two distinct forces acting in rapid succession. First, the blanking force cuts the flat foil profile from the continuous web. This shearing action requires immense, instantaneous pressure to punch through the aluminum alloy cleanly. Second, the drawing force shapes that flat blank into a three-dimensional container. The press must handle peak mechanical loads when these two actions overlap in progressive or compound tooling. If the machine lacks the necessary tonnage, the ram will stall at bottom dead center (BDC). Freeing a stuck press at BDC requires dumping the clutch air, reversing the main motor, or sometimes using hydraulic tie-rod nuts to release the pressure, costing hours of production downtime.

The type of container being manufactured drastically alters these force requirements. Standard wrinkle-wall trays rely on controlled folding of the material. They typically use thinner foils around 0.03 mm to 0.08 mm. The tooling allows the metal to buckle slightly in a controlled manner to form the rigid walls. Smooth-wall containers demand a completely different physical process. They require material flow rather than folding. This necessitates significantly higher holding and drawing forces to prevent micro-tears during the draw.

Force Type

Mechanical Action

Tooling Component

Impact on Tonnage

Blanking Force

Shearing the flat profile from the web

Cutting Punch and Die Block

High instantaneous peak load; scales with perimeter and thickness.

Blank Holder Force

Preventing wrinkles during material flow

Pressure Pad / Die Cushion

Sustained load; significantly higher for smooth-wall containers.

Drawing Force

Stretching the metal into the final shape

Draw Punch and Cavity

Continuous load through the stroke; dictates required flywheel energy.

Thicker foils, sometimes reaching up to 0.20 mm, are mandatory for smooth-wall applications. Pushing thicker material through a tight die clearance exponentially increases the total tonnage required to maintain final rim integrity. The press must exert enough downward force to overcome the upward resistance of the pneumatic die cushions, which hold the foil flat while the draw punch pushes it into the cavity.

Calculating Tonnage for an Aluminum Foil Container Production Line

Establishing the mathematical framework for sizing equipment ensures you deploy an optimized aluminum foil container production line. Tonnage is a calculated output based on specific input variables. You cannot guess this number. You must calculate the shear strength, the drawing pressure, and the off-center loading dynamics.

The first major factor is the number of mold cavities. This acts as a direct multiplier. Total cutting perimeter and forming area scale linearly with the addition of each cavity. Starting from a baseline of 2 to 5 tons of force per individual container, a multi-cavity setup quickly escalates the required machine capacity. Furthermore, the cavity layout impacts force distribution. A staggered layout balances the load better than a linear layout, reducing off-center loading on the press ram and preserving the gib guides. If you run a four-cavity mold in a straight line, the outer cavities exert leverage against the ram, requiring a press with wide-spaced connections and massive structural rigidity.

Foil thickness and material yield strength represent the second calculation factor. Different aluminum alloys exhibit different mechanical properties. Standard high-grade alloys like 3003, 8011, and 8006 have distinct shear strengths. A shift from 15-micron household-grade foil to 30-micron heavy-duty industrial foil fundamentally changes the tonnage equation. Thicker, higher-yield materials resist shearing and drawing, forcing the press to exert more energy per stroke to achieve a clean cut and proper form.

To calculate the baseline blanking force, engineers use a standard formula. You must follow these exact steps to determine your minimum requirements:

  1. Measure the total cutting perimeter of a single container in millimeters.

  2. Multiply the perimeter by the material thickness in millimeters.

  3. Multiply that result by the shear strength of your specific aluminum alloy (typically measured in kilograms per square millimeter).

  4. Convert the final kilogram figure into metric tons.

  5. Multiply the single-cavity tonnage by your total number of cavities.

  6. Add the required blank holder force (usually 20% to 30% of the drawing force).

  7. Apply a strict 20% safety margin to the final total to account for tool dulling and material variations.

The third variable involves container perimeter and draw depth. Larger containers require a longer cutting perimeter, directly increasing the blanking force. Deeper draws, such as roasting pans compared to shallow pie plates, require sustained force over a longer stroke. This specific requirement impacts the necessary energy rating, often referred to as flywheel energy, rather than just the raw tonnage capacity at the bottom of the stroke. A press might have the rated tonnage, but if it lacks the flywheel energy to sustain that force through a deep draw, the motor will bog down, RPMs will drop, and the stroke will fail.

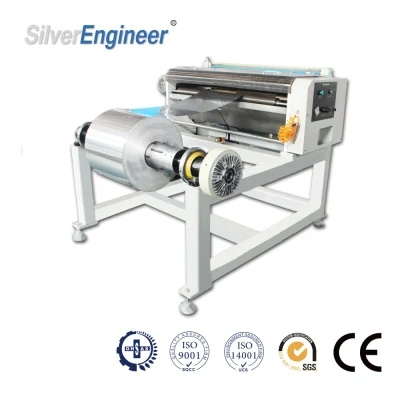

Aluminum foil container press machine in operation

Standard Tonnage Benchmarks for Equipment Selection

Categorizing press machines by industry-standard capacities helps align equipment selection with business scale and production goals. Standardized benchmarks prevent under-equipping a high-volume facility or over-capitalizing a startup operation. You must match the physical frame style—C-frame versus Straight-side (H-frame)—to the tonnage and tooling size.

Press Tonnage

Frame Style

Typical Cavity Count

Best Suited For

45-Ton to 60-Ton

C-Frame

1 to 2 Cavities

Standard takeaway containers, shallow draws, wrinkle-wall products.

80-Ton to 110-Ton

H-Frame (Straight-side)

3 to 4 Cavities

Medium-sized food trays, airline catering containers, standard smooth-wall.

130-Ton and Above

H-Frame (Straight-side)

5 to 6+ Cavities

Large roasting pans, heavy-gauge smooth-wall, massive volume runs.

Presses in the 45-ton to 60-ton range serve as the entry point for foil packaging manufacturing. They are best suited for single or double-cavity molds. These machines fit perfectly into localized production strategies focusing on standard takeaway containers and smaller minimum order quantities. They require less floor space, consume less power, and allow operators to master the fundamentals of foil stamping without managing massive, complex tooling. C-frame designs are common here, offering easy access to the die area for rapid changeovers.

Moving up to the 80-ton to 110-ton category introduces the industry workhorse. These presses typically run four-cavity molds, balancing physical footprint, energy consumption, and high-speed output. Operating often at 40 to 60 strokes per minute, this tonnage range provides the necessary structural rigidity to maintain tight tolerances across multiple cavities simultaneously. At this capacity, manufacturers shift to H-frame (straight-side) presses. The closed-frame design eliminates the yawning effect found in C-frames, ensuring the punch and die remain perfectly parallel even under maximum load.

The 130-ton and above category is reserved for heavy industrial applications. These massive machines are required for five-to-six cavity setups or large-format single-cavity products like full-size catering pans. They provide the extreme force necessary for heavy-gauge smooth-wall products. Deploying a press of this size requires specialized foundation work, often involving vibration isolation pads or reinforced concrete pits. The massive flywheel and heavy ram dictate a slower maximum stroke rate, but the high cavity count yields massive overall production numbers.

Evaluating the Complete Punch Press for Metal Forming Ecosystem

Tonnage does not operate in a vacuum. It interacts continuously with peripheral equipment to determine overall line efficiency from the uncoiler to the final stacker. A high-tonnage punch press for metal forming demands equally robust supporting machinery. The entire ecosystem must synchronize to prevent bottlenecks. If the press can stamp 60 cycles per minute but the material handling system can only feed 40, the extra tonnage capacity is wasted.

Matching the stamping press feeder is a primary concern. High-tonnage presses usually run wider, heavier foil webs to feed multi-cavity molds. The servo feeder must accurately deliver this wide material at high speeds without stretching, wrinkling, or tearing the foil. Precision feeding ensures the blanking punch hits the exact right spot every time. If the feeder over-pitches, you waste expensive aluminum. If it under-pitches, the punch cuts a half-container, creating a massive scrap jam inside the die that can shatter the cutting edges.

Mold compatibility and bed size are directly tied to press capacity. High-tonnage machines feature larger bolster plates and expanded bed areas to accommodate massive multi-cavity tooling. When utilizing a complex aluminum foil container mold, the press must also incorporate pneumatic die cushions in the bed. These cushions provide the necessary upward counter-pressure for proper part ejection and wrinkle control during the draw. The air pressure in these cushions must be highly regulated; too much pressure tears the foil, while too little allows wrinkles to form on the container walls.

Scrap collection and ejection systems must scale alongside tonnage. An 80-ton press running a four-cavity mold at 50 strokes per minute generates a massive volume of aluminum webbing scrap. The ecosystem must include synchronized air ejection systems to blow the finished containers out of the die area instantly. Simultaneously, heavy-duty scrap choppers or vacuum extraction systems must remove the waste web continuously. The scrap chopper must be mechanically or electronically timed to the press stroke. Failure to clear scrap leads to die damage and catastrophic tooling crashes.

Implementation Risks: The Cost of Miscalculating Press Capacity

The operational realities of poor tonnage specification become apparent immediately upon commissioning the line. Miscalculations carry severe financial and mechanical penalties. Operating a press at 95% to 100% of its rated capacity induces mechanical fatigue. This under-sizing leads to frame deflection, where the physical structure of the press bends microscopically under load. Deflection causes premature bearing failure, rapid dulling of the cutting edges on the mold, and eventual structural cracking in the press crown or bed.

Product quality degradation is another direct result of inconsistent or inadequate force. When a press lacks the necessary tonnage, it cannot distribute pressure evenly across a multi-cavity mold. This results in uneven rim rolling, micro-tears in the foil walls, and compromised sealing surfaces. Defective rims prevent lids from sealing correctly, rendering the product useless for food service applications. You will see this on the shop floor as containers from cavity one and two look perfect, while containers from cavity three and four have torn flanges.

Conversely, over-sizing the equipment creates capital inefficiency and energy waste. Purchasing a 130-ton press to run a simple two-cavity operation ties up crucial operational capital. It increases electrical overhead because you are powering a massive motor to do light work. Furthermore, larger presses have heavier moving masses, which slows down maximum cycle times compared to a nimble 45-ton machine. Aligning press procurement strictly with a 3-to-5 year production scaling roadmap ensures you build an efficient custom aluminum foil container line without overextending resources.

Conclusion

  1. Measure your exact container draw depth and cutting perimeter to establish the baseline blanking and drawing forces required for your specific product.

  2. Multiply your baseline force by your target cavity count and add a strict 20% safety margin to determine your minimum press tonnage.

  3. Verify your facility's electrical infrastructure and compressed air systems can support the motor and clutch requirements of your calculated press size.

  4. Match your servo feeder width and speed capabilities to the bolster plate dimensions and stroke rate of your selected press.

  5. Request a physical test run from the equipment manufacturer using your specific foil alloy and thickness before finalizing the machine sign-off.

FAQ

Q: Can a 45-ton aluminum foil container press machine run a 4-cavity mold?

A: Generally, no. A 45-ton press is limited to one or two cavities depending on the specific container size. Pushing it to handle four cavities risks stalling the press at bottom dead center, damaging the mold, and producing highly defective containers due to insufficient blanking and drawing force.

Q: Does foil thickness change the required press tonnage?

A: Yes. Thicker foils require exponentially more force to shear during the blanking phase and more holding pressure during the drawing phase. Moving from a standard 0.04 mm wrinkle-wall foil to a 0.15 mm smooth-wall foil drastically increases the total tonnage required per cavity.

Q: What happens if I operate a press at its maximum rated tonnage?

A: Operating continuously at 100% capacity causes severe mechanical fatigue. It leads to frame deflection, which misaligns the tooling and accelerates wear on the die cutting edges. It also strains the motor and bearings, significantly reducing the overall lifespan of the machine.

Q: How does draw depth affect press selection?

A: Deeper draws require sustained force over a longer distance. The press must have sufficient flywheel energy to maintain pressure throughout the entire stroke, not just raw tonnage at the very bottom. Deep containers like roasting pans demand presses with higher energy ratings.

Q: Why do smooth-wall containers require higher tonnage than wrinkle-wall containers?

A: Wrinkle-wall containers are formed by folding the foil, requiring relatively low force. Smooth-wall containers require the metal to flow and stretch into shape without tearing. This demands significantly higher blank-holder pressure and drawing force to maintain structural integrity.

Q: What role does the stamping press feeder play in tonnage utilization?

A: The feeder must supply material fast enough to match the press stroke rate. If you have a high-tonnage press capable of 60 strokes per minute, but the feeder slips or cannot position the heavy foil web accurately at that speed, your effective production rate drops.
