Ultimate Guide to Hot Forging Production Line: Equipment, Process, Capacity & Press Tonnage Calculation

1. What is a Hot Forging Production Line?

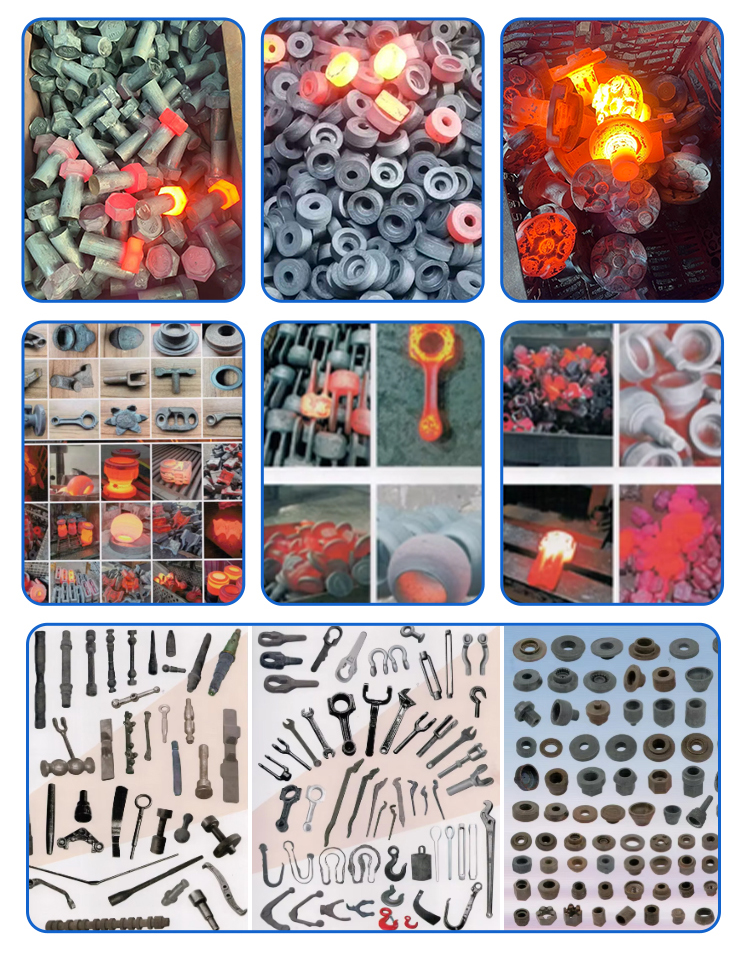

A hot forging (also called “red punch”) production line heats metal bars to 800–1200°C and then presses them into precise shapes under high pressure. It is widely used for automotive parts, valves, flanges, and hardware.

The standard automatic line consists of 5 core machines: cooling tower, induction heating furnace, handling robot, press, and die. Below we explain each component and provide engineering formulas to size your line correctly.

2. Five Core Machines – Functions & Trends

3. Automatic Workflow – From Bar to Finished Part

①Auto loading – Bars are sorted and fed into the induction coil.

②Induction heating – Skin effect heats the bar evenly in seconds. An infrared pyrometer checks temperature.

③Hot transfer – A robot with water-cooled grippers takes the red-hot bar and places it into the die.

④Forging – The press strikes, metal flows like dough into the cavity.

⑤Auto ejection – Another robot removes the finished part, while a spray system applies release agent (graphite) and cools the die.

4. How to Select the Right Induction Heating Furnace (Power Calculation)

The required power is given by the standard engineering formula:

P = (C × G × T) / (0.24 × t × η)

·P = power (kW)

·C = specific heat of metal (for steel ≈ 0.156 kcal/kg·℃)

·G = single billet weight (kg)

·T = temperature rise (target temp – room temp, e.g. 1180℃)

·t = cycle time per piece (seconds)

·η = efficiency (0.5~0.7)

Example: φ50×120mm steel bar (1.84kg), heat to 1200℃, cycle 12s, η=0.6

P = (0.156×1.84×1180) / (0.24×12×0.6) ≈ 196 kW → Select 250 kW

Quick reference table (carbon steel, 1200℃):

Always add 20-30% margin for long-term reliability.

5. Forging Press Tonnage – How to Calculate

Use the hot forging formula:

P = k × A × σ

·P = required tonnage (kN or metric tons, 1 ton ≈ 9.8 kN)

·k = correction factor (5~10, complex parts use higher value)

·A = projected area including flash (mm²)

·σ = yield strength at forging temperature (MPa)

Example: Carbon steel flange φ80mm, 45# steel, 1200℃

·A ≈ 9500 mm² (including flash)

·σ ≈ 50 MPa

·k = 4 (simple disc)

·P = 4 × 9500 × 50 = 1,900,000 N ≈ 194 tons → Select 250 ton press

Quick tonnage guide for carbon steel:

For stainless steel, increase tonnage by 40-60%; for copper/aluminum, reduce by >50%.

6. Do You Need a Descaling Machine (Oxide Skin Remover)?

Oxide scale can damage dies and surface quality. Use this decision tree:

·Product needs plating/painting? → Yes → Needs descaling

·Precision machining after forging? → Yes → Needs descaling

·Heating with protective gas (N₂)? → Yes → No descaling needed

·Die life <3000 pcs? → Yes → Needs descaling

·Material is copper/aluminum? → Yes → No descaling needed

Summary recommendation – Carbon steel auto parts, high-volume lines with expensive dies → descaling is worth the investment.

7. Recommended Forging Temperatures by Metal

Use the “as low as possible” principle to reduce scaling and extend die life.

8. Final Checklist for Your Hot Forging Line

Induction heating power matches your billet size and cycle time (with 20-30% margin)

Press tonnage calculated using P = k × A × σ, with safety factor

Robot grippers are water-cooled for high temperature

Die cooling and lubrication system (spray + graphite)

Descaling machine if surface quality is critical

Infrared pyrometer + auto reject for out-of-temp billets

Smoke purifier for environmental compliance
