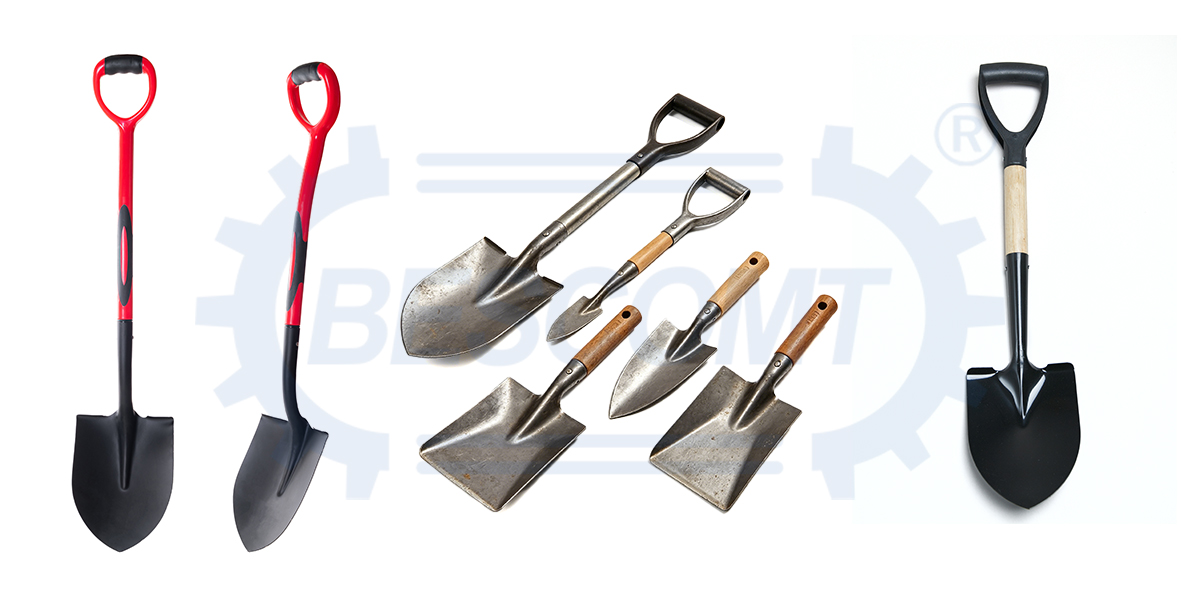

1.Understanding Your Shovel Market
International shovel buyers search by specific end-use applications. Pointed shovels (round-point) are preferred for digging and gardening, while square shovels are widely used in construction, farming, and snow removal. High-carbon manganese steel shovel heads are ideal for heavy-duty industrial use.
Shovel Materials — Steel Specifications: Materials range from low-cost iron (bends easily, light-duty) to manganese steel (high hardness, wear-resistant, long service life) and stainless steel (anti-rust, high/low temp resistance, chemical/food industry use).
Regional Specifications ：
Region | Key Shovel Type | Head Size (L×W/mm) | Thickness |
North America | Round Point / Square Spade | 410–430×240–250 | 1.4–1.6 mm |
Europe | French Square / Holsteiner | 270×250 – 320×250 | 1.5–1.8 mm |
Russia / Central Asia | Heavy Square Digging | 400×350 (extra-large) | 1.5–2.0 mm |
Southeast Asia | S512 / S503 Narrow | 340×200 – 420×230 | 1.2–1.5 mm |
Africa | Africa Type / Full Steel | 300–340×180–230 | 1.2–1.5 mm |
2. Core Manufacturing Process: From Coil to Finished Shovel
A standard shovel production line includes the following key steps, each paired with specific machinery:
Process Flow Summary：
Decoiling → Blanking → Heating (Optional) → Forming → Rounding → Logo Stamping → Handle Assembly → Painting (Optional)
Step 1 — Blanking + Punching

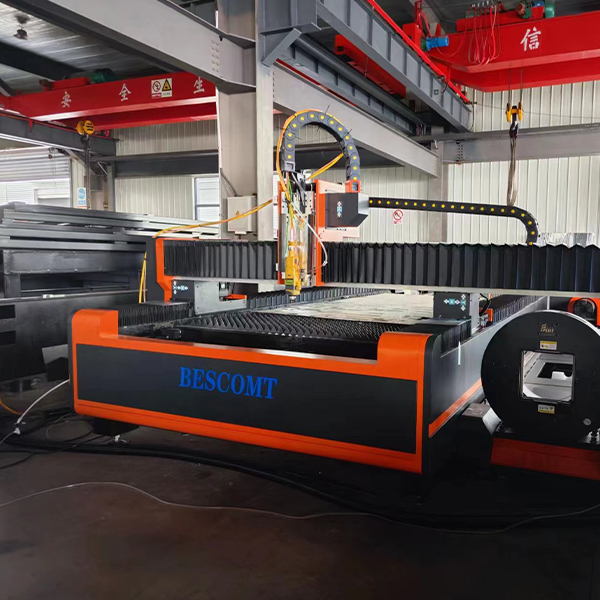

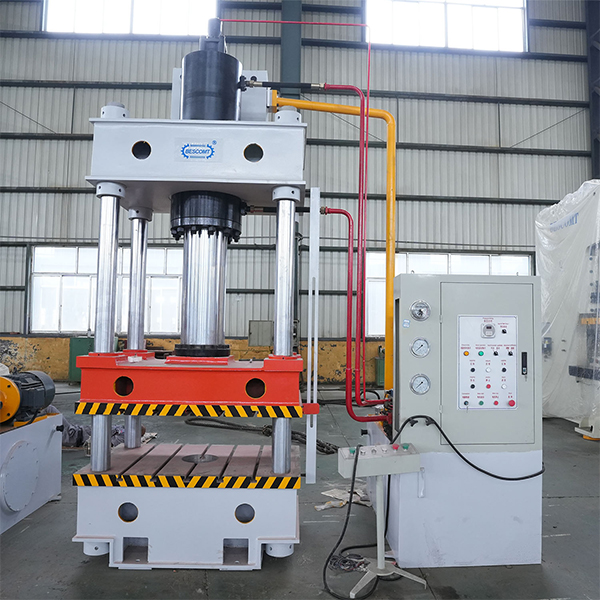

Cut and punch the steel coil into the basic T-shaped blank of the shovel head. This step typically uses a 125–200 ton mechanical press or hydraulic press, or a laser cutting machine for flexible production.
Step 2 — Heating (Optional)
If manganese steel is used, an electric or natural gas heating furnace is required to soften the material before forming. If standard Q235 iron plate is used, no heating is needed.
Step 3 — Shovel Head Forming
Press the pre-cut blank into the exact shape and angle of the shovel head, paying special attention to the shaping of the back side.
Step 4 — Rounding
A smaller pressing machine bends the back side of the formed shovel head into a cylindrical tube to later connect with the wooden, fiberglass, or steel handle.
Equipment：

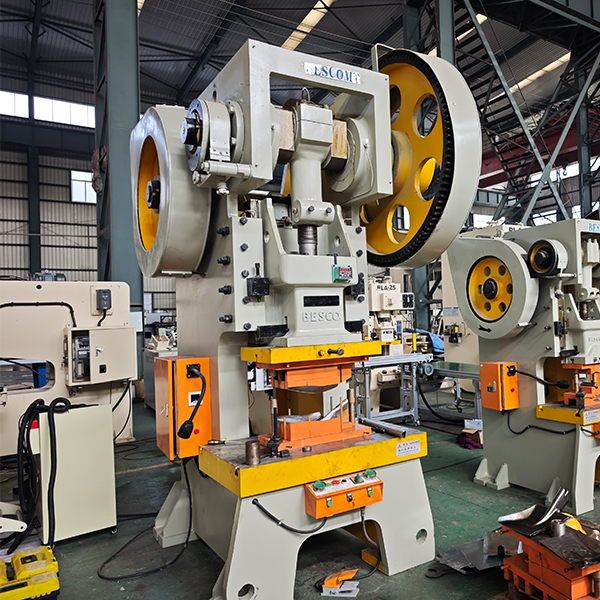

Best: 80T mechanical press
Min: 63T mechanical press
Step 5 — Logo Stamping
A small-tonnage punch (40T) stamps the brand logo on the surface or end of the shovel head.
3. Shovel Handle Manufacturing & Assembly
The shovel handle is equally important to the final product. Three handle types are common in the international market:
Handle Type | Material | Best for |
Wooden Handle | Natural wood | Traditional, comfortable grip |
Fiberglass Handle | Fiberglass composite | Lightweight, corrosion-resistant |
Full Steel Handle | Steel | Heavy-duty industrial use |
Handle Grip Types：
D-Grip: Single-hand grip, non-slip, easy storage — suitable for short-handle shovels
Triangle Grip: Stable force application, better control — suitable for heavy-duty adult use
4.Quality Assurance & After-Sales Support
Industrial buyers search for suppliers that offer reliable after-sales technical support and CE/ISO certifications. Our shovel manufacturing equipment comes with:
1-year full machine warranty
Installation videos and operation manuals included
Optional on-site commissioning and technical training
OEM mold design available for custom shovel shapes and logos
Investing in a shovel production line requires matching press tonnage to your target market’s size and material specifications. For buyers seeking ready-to-ship solutions, complete lines from blanking to painting can be configured for manual, semi-automatic, or fully automatic operations.
