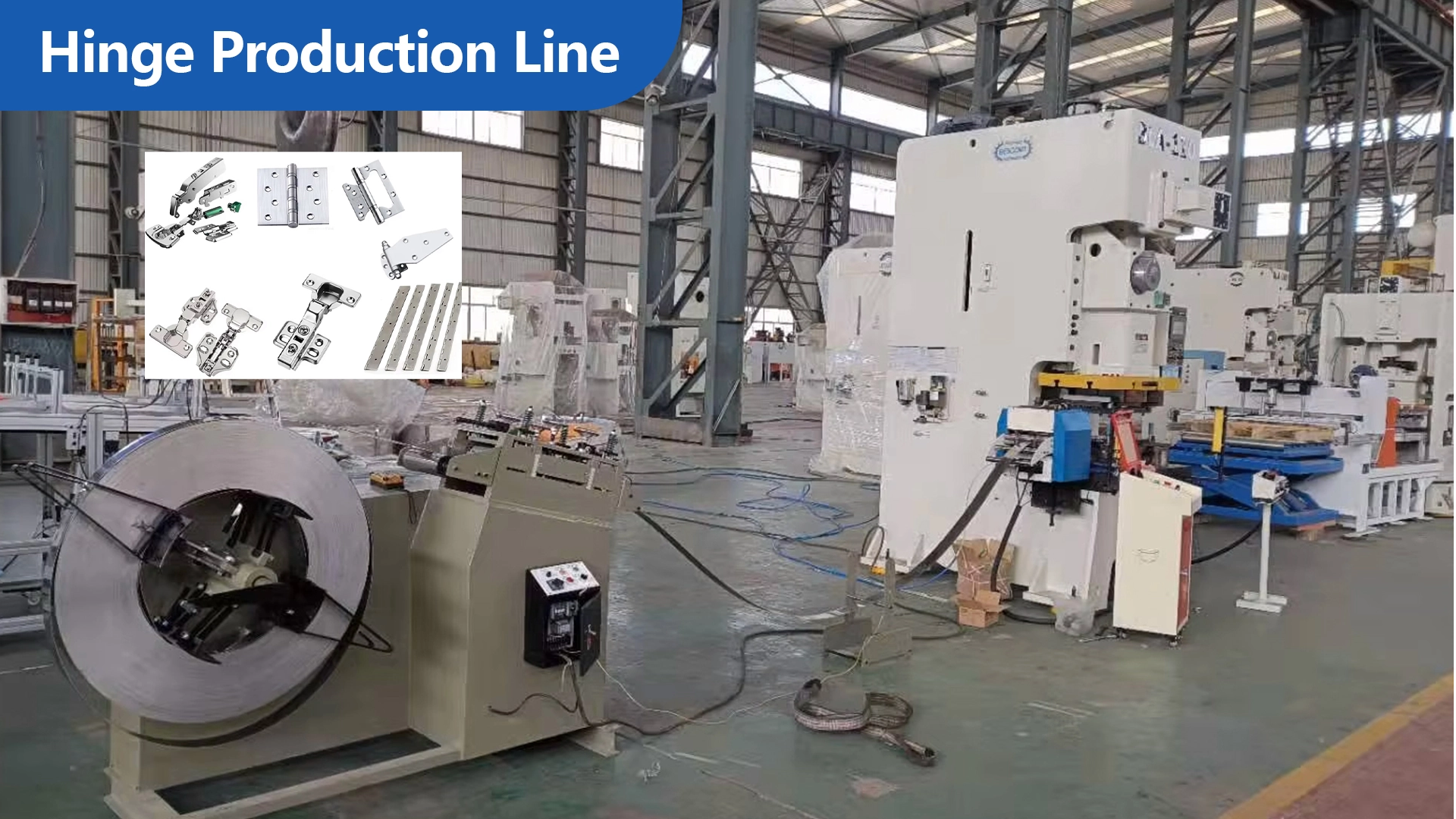

Hinge Production Line : Full Process, Machine List & Real Setup Cost

Why hinge manufacturing still attracts new investors

The hinge is one of the most durable product categories in hardware. It is consumed by residential construction, commercial fit-out, furniture, cabinetry, and industrial enclosures at the same time — which means demand rarely collapses in all channels at once.

The door hinge manufacturing process: 9 steps from coil to carton

A butt hinge looks like three parts — two leaves and a pin. The production reality is a sequence of nine controlled operations. Understanding this sequence is what lets you read any equipment quotation critically.

Step 1 — Material selection and slitting

Cold-rolled steel, stainless steel (201/304), brass, or zinc alloy. The choice is not cosmetic — it determines press tonnage, die steel grade, and whether you need a plating line downstream.

Coil is slit to the strip width matching your hinge size. Getting this wrong is the single most common source of hidden scrap: an over-wide strip wastes material on every stroke, forever.

Step 2 — Blanking

The strip is fed into the press and the leaf outline is punched out. On a progressive line this is the first station of a multi-station die rather than a standalone operation.

Step 3 — Piercing (screw holes)

Screw holes are punched, and on countersunk designs, the countersink is formed in the same die. Hole position tolerance here decides whether the finished hinge screws flush — installers notice this immediately, and it is a frequent cause of order rejection.

Step 4 — Knuckle curling

The defining operation. The edge of the leaf is progressively rolled into the knuckles that will receive the pin. This is where cheap lines fail: inconsistent curl diameter produces hinges that are either loose and rattling, or tight and stiff. Curling stations demand the highest die precision in the entire line.

Step 5 — Leaf flattening and sizing

Stamping introduces stress and slight warping. Leaves are flattened and dimensionally corrected so the two halves will mate without a gap.

Step 6 — Deburring and surface preparation

Sharp edges from blanking are removed, typically by vibratory or barrel finishing. Skipping this creates two problems at once: injury complaints from installers, and poor plating adhesion.

Step 7 — Surface treatment

Electroplating (zinc, nickel, chrome), powder coating, or passivation for stainless. Note that this is usually a separate investment from the hinge line itself — a point some quotations quietly omit. Many first-time factories outsource plating for the first year, which is a rational way to defer capital.

Step 8 — Assembly and pin riveting

Two leaves are interleaved, the pin is inserted, and the pin ends are riveted or capped. This is the step that separates a semi-automatic operation from a genuinely automated one, and it deserves its own section below.

Step 9 — Inspection and packing

Swing test, torque check, dimensional sampling, then pairing and cartoning. Buyers in regulated markets will ask for cycle-test data — build the fixture on day one, not when the first RFQ arrives.

What machines a hinge production line actually needs

A complete line has two halves. Most confusion in the market comes from suppliers quoting one half and calling it a "line."

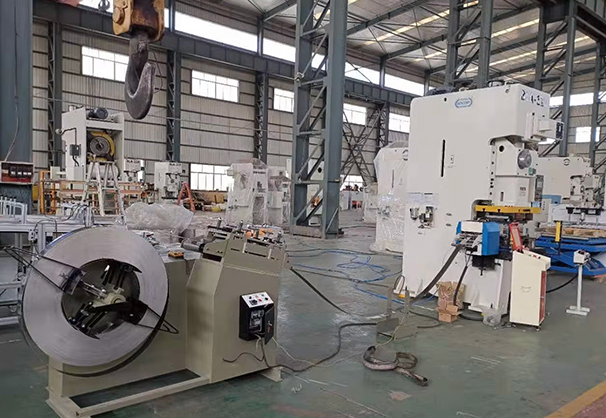

Half one — the stamping line

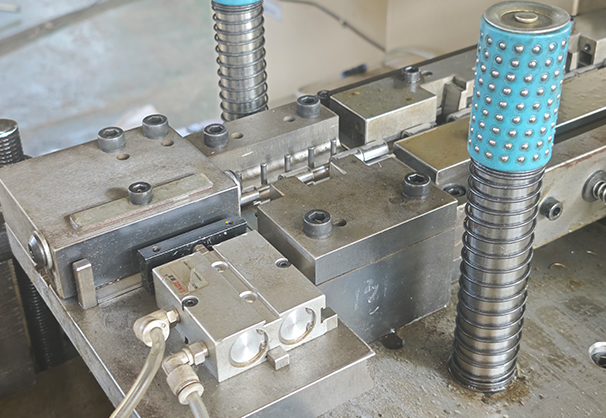

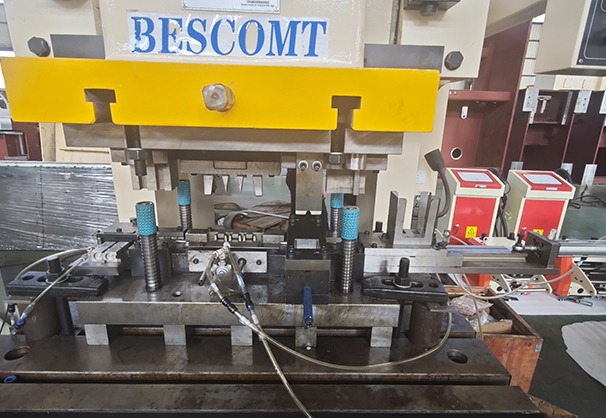

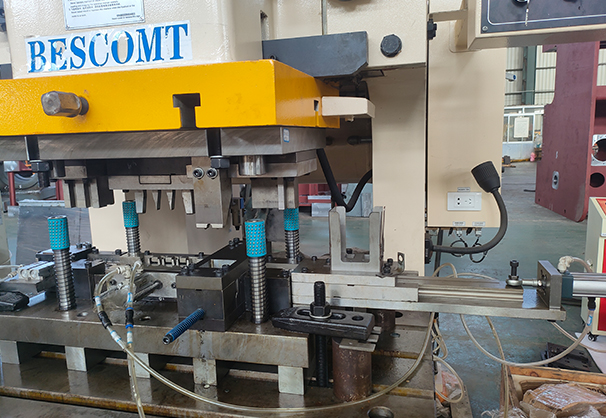

The progressive die is the line. A well-built die on a modest press outperforms a premium press running a poor die, every time. When comparing quotations, compare die steel grade, station count, and guaranteed strokes before first regrind — not press brand.

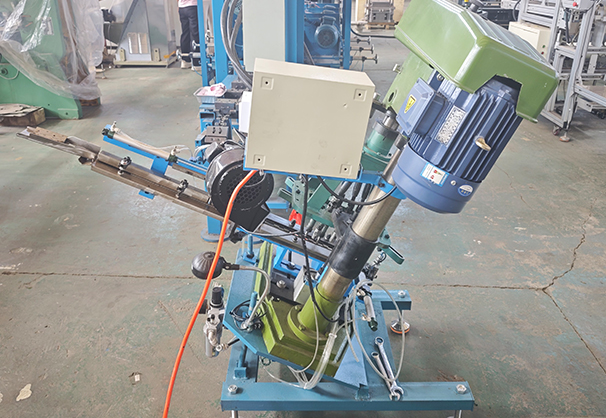

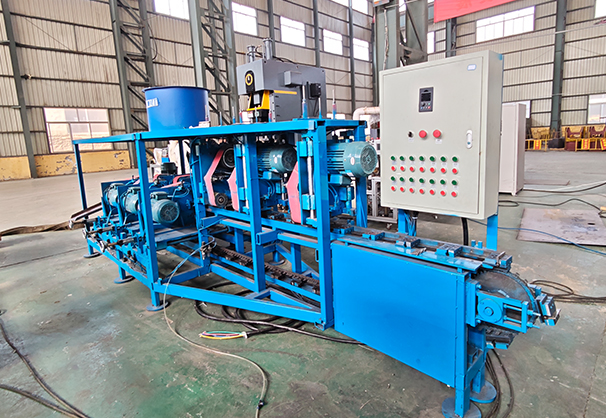

Half two — the assembly line

Optional but often needed

Surface treatment line, oiling/greasing station for bearing hinges, and laser or pad marking if you intend to build your own brand rather than produce white-label.
