Bolt And Nut Production Line: A Buyer's Engineering Guide To Sizing, Cost And Line Configuration

The single most important question: what is your size range?

Before any quotation is meaningful, four inputs are required: the diameter and length range of the fasteners (for example M12–M24, 40–200 mm); the steel grade (SAE 1006/1010/1018, boron-alloyed, B7, stainless); the required property class (4.8, 8.8, 10.9, 12.9); and the planned output per shift.

These four numbers determine press tonnage, slide stroke, die-height adjustment range, heating configuration and the tooling set. Everything else — floor plan, power load, headcount — follows from them.

A common and expensive error is specifying the line around the largest bolt the plant hopes to make one day. Tonnage sized for an occasional M30 will run an M12 job inefficiently for years. Size for the volume core of your order book, and treat the outliers as a second-stage investment.

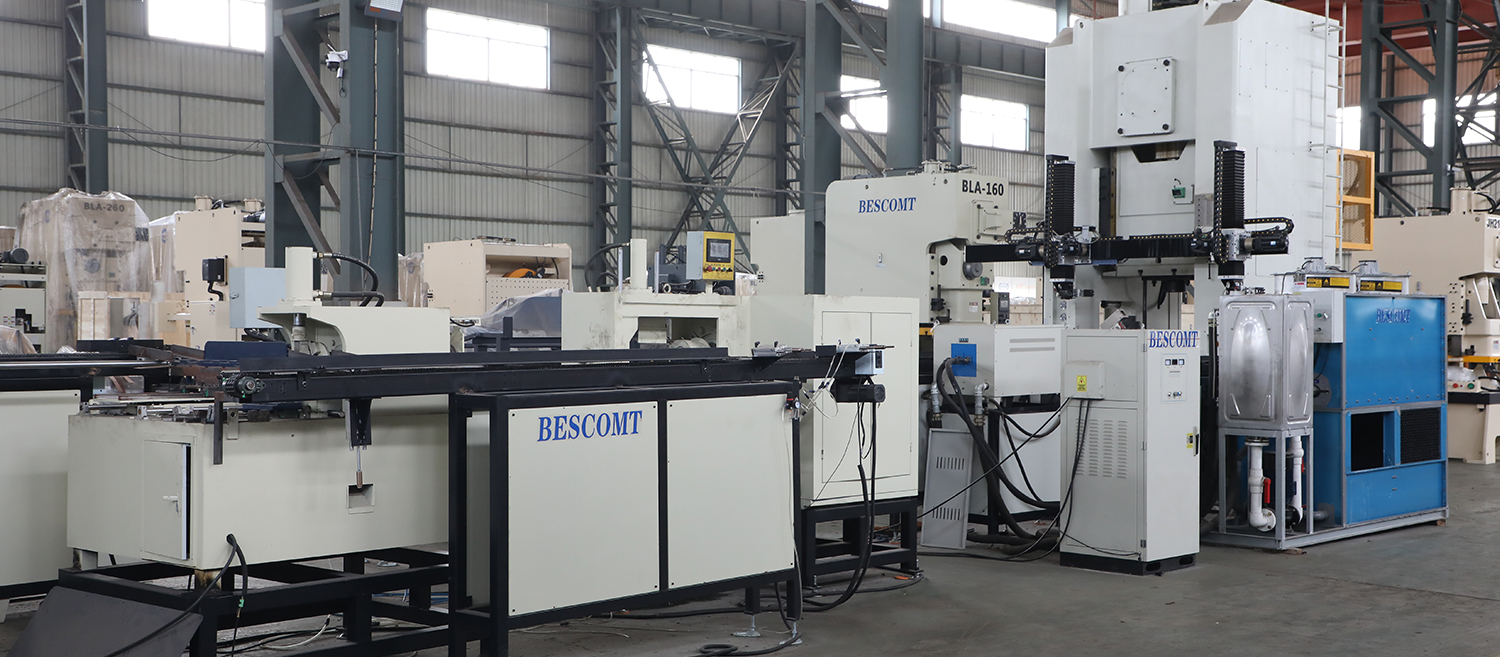

What a real bolt and nut production line contains

In a catalogue, the line looks like one press. On a shop floor it is a chain of six to seven stations, and the weakest link sets the yield of the entire line.

Downstream of forming, high-strength grades additionally require hardening, quenching and tempering, followed by pickling and surface finishing — zinc, nickel, chrome, tin, silver, powder coating, anodizing, electrophoresis or hot-dip galvanizing, with RoHS compliance where the output is exported.

The peripheral equipment is not optional. It is part of the process:

Hot forging or cold heading: the M12 boundary

This is the first technical fork, and it must be resolved before budgeting.

Cold heading forms the fastener at room temperature. It is fast — a cold former runs roughly 60 to 150 bolts per minute depending on size — produces near-net-shape parts with excellent material utilization, and delivers favourable grain flow for fatigue performance. It dominates high-volume small-diameter production.

Hot forging heats the blank before forming. Cycle rates are substantially lower, but forming loads drop sharply, which makes large diameters, high property classes and difficult alloys practical without split dies.

Our working boundary in practice:

The boundary is a guideline, not a law. Property class, alloy and head geometry can shift it in either direction

Where the money actually goes: plant cost structure

Operating cost structure for a nut bolt plant

Why single-source line delivery matters

The industry trend in fastener manufacturing is not larger press tonnage. It is the elimination of manual operations between stations — which is where real capacity is actually lost.

Robotized inter-station transfer. 2-, 3- and 4-axis manipulators replace manual repositioning of blanks, deliver repeatable placement, and remove operator contact with heated workpieces.

Automatic feeding as standard, not an upgrade. 3-in-1 systems (decoiling, straightening, feeding), 2-in-1 systems, servo feeders and sheet feeders — configured to the specific part.

Precise heat control. A high-efficiency electric furnace with multi-level protection and unattended automatic operation lowers energy consumption and removes the human factor from the most sensitive step.

One supplier for the whole line. Cutting, feeding, heating, forging, tooling and robotics engineered as a matched set. In a multi-brand assembly, responsibility for yield becomes impossible to assign — and that ambiguity is usually discovered during commissioning, at the worst possible moment.
