CNC Turret Punch Press Buying Guide: Servo Vs Mechanical, Stations & Tooling Explained

1. What is a CNC Turret Punch Press?

CNC turret punch press is a high-precision, high-efficiency machine for punching and nibbling sheet metal. It integrates CNC technology, a drive system, a servo feeding mechanism, a tool magazine, a tool selection system, and programming software. A machining program (created via CAM or manually) commands the servo feeder to position the sheet accurately, the tool selection system to pick the correct punch and die from the turret, and the hydraulic or servo drive to execute the punching cycle automatically.

Turret punch presses are mainly divided into two types: mechanical turret punch press and servo turret punch press. They differ significantly in drive mechanism, accuracy, efficiency, and cost.

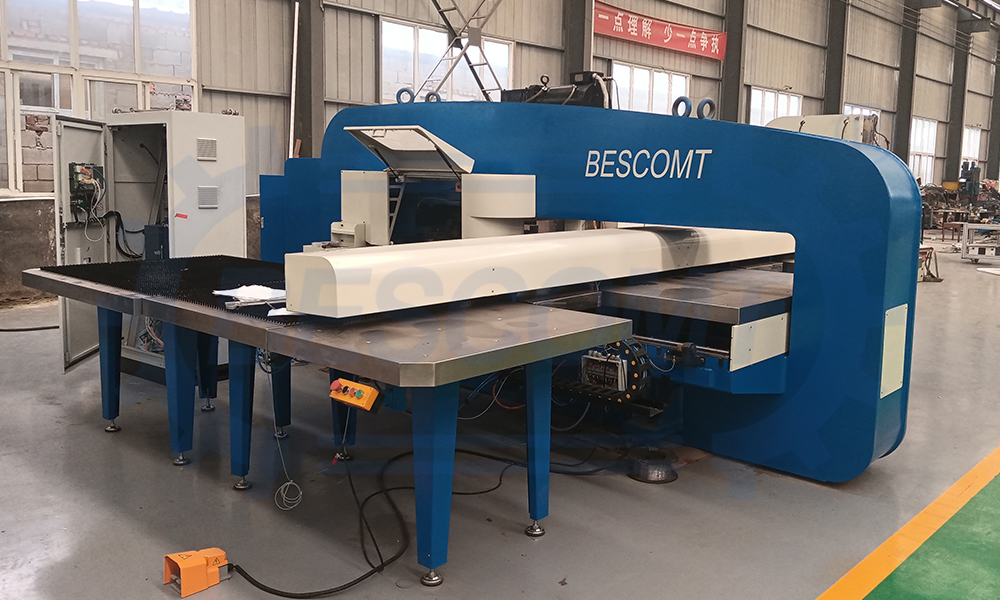

2. Features of Mechanical Turret Punch Press

The mechanical turret punch press uses a mechanical drive (flywheel, clutch, crank-connecting rod). Its main features include lower cost and suitability for less demanding applications.

Lower cost: Due to the mature mechanical transmission, both initial purchase and maintenance costs are lower than servo models.

Suitable for low-demand production: The positioning and indexing accuracy of the mechanical turret is relatively low, making it ideal for basic punching operations such as holes, louvers, embossing, and drawing.

Limited process capability: Mechanical presses can only perform standard punching; they cannot achieve complex functions like roll forming, roll cutting, or wire drawing.

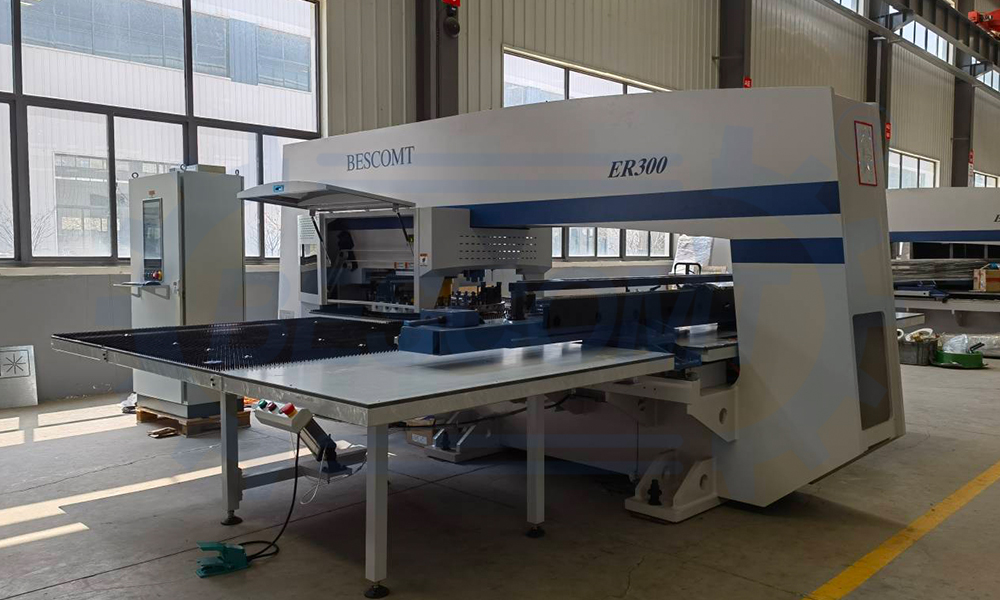

3. Features of Servo Turret Punch Press

The servo turret punch press uses servo motors to directly drive the turret rotation and ram motion. Its core advantages are high accuracy and high productivity.

Higher accuracy: Servo-driven turret indexing achieves up to 0.01° rotation accuracy, and the servo feeder provides superior positioning accuracy, ensuring consistent part quality.

Higher productivity: Servo motors allow fast start/stop cycles, drastically reducing tool change time. Production rhythm can be optimized via programmable dwell times and indexing speeds.

Complex process capability: Servo turret presses can perform roll forming, roll cutting, wire drawing, tapping, and other complex operations, meeting high-value-added part requirements.

Higher cost: Due to servo systems and advanced controls, the purchase and maintenance costs are higher than mechanical models.

4. Selection Guide: Servo vs Mechanical

The choice between servo and mechanical turret punch presses depends on your production requirements and budget:

Conclusion: Choose a servo turret punch press for high accuracy, high efficiency, and complex processes. Choose a mechanical turret punch press when budget is tight and only basic punching is required.

5. Turret Punch Press Stations and Tooling Sizes

Turret punch press stations are typically classified into four sizes: A, B, C, and D. Each station size corresponds to a specific tool shank diameter and processing range.

Station A (1/2"): Tooling range φ1.6 – φ12.7 mm, for small holes.

Station B (1-1/4"): Tooling range φ12.7 – φ31.7 mm, for medium holes.

Station C (2"): Tooling range φ31.7 – φ50.8 mm, for larger round or shaped holes.

Station D (3-1/2"): Tooling range φ50.8 – φ88.9 mm, for large-hole punching.

Common turret configurations include 16, 24, or 32 stations. For 24- and 32-station turrets, two rotating (auto-index) stations are optional — usually at C size — enabling the machining of shaped holes at any angle, roll forming, and other contouring operations, greatly enhancing machine flexibility.

6. Typical Applications of CNC Turret Punch Press

Turret punch presses are widely used in:

Electrical enclosures & cabinets: Large quantities of ventilation holes, mounting holes, louvers.

Automotive parts: Body brackets, seat components, small chassis parts, interior trim.

Home appliance manufacturing: Air conditioner shells, refrigerator side panels, washing machine panels.

Hardware products: Shelving, storage cabinets, lighting housings, kitchenware.

Agricultural & construction machinery: Covers, guards, connection plates.

7. How to Optimize the Processing Efficiency of a Turret Punch Press?

Proper tool setup: Pre-load common tools in stations A, B, C, D according to frequently used hole sizes and shapes to reduce setup time.

Use auto-index stations: For shaped holes at various angles, auto-index (C station) allows one-hit completion without repositioning.

Optimize programming path: Use professional CAM software (AP100, JETCAM, etc.) to generate the shortest punching path and reduce idle travel.

Regular maintenance: Clean the turret, lubricate guides, check tool wear to ensure long-term stable operation.

CNC turret punch press is an indispensable machine for modern sheet metal fabrication. Understanding the differences between servo and mechanical models, and choosing the right station and tooling configuration, can significantly boost productivity and part quality. Whether you are setting up a new production line or upgrading existing equipment, we hope this guide has been helpful. For detailed specifications or a quote, please contact us.
