In the world of modern manufacturing, the punch press stands as a cornerstone of metal fabrication. This powerful machine is fundamental to creating the metal parts and products that shape our everyday lives. But what exactly does a punch press do? In essence, it is a machine tool that uses a combination of force, a die, and a punch to shape or cut material, primarily sheet metal. Its operation is based on a simple yet powerful principle: a ram forces a punch tool through a material into a matching die, shearing or forming it into a desired shape. From the subtle curves of a car's body panel to the precise holes in a computer case, the punch press is an unsung hero of industrial production. This comprehensive guide will delve into the inner workings, various types, and extensive applications of this versatile machine, providing a deep understanding of its critical role in industry.
A punch press is a type of stamping press designed to form or cut metal material. The primary and most basic function of any punch press is to apply a tremendous, focused force to a specific point on a piece of material, typically sheet metal. This force is delivered by a tool called a "punch," which is driven into the material, pressing it against a "die." The result is a shearing action that cleanly removes material or a forming action that reshapes it. The process is remarkably efficient, allowing for high-speed production of identical parts .
The term "piercing" is often used interchangeably with punching, describing the operation of creating holes in a material where the removed material becomes scrap . The punch press excels in this area, but its capabilities extend far beyond simple hole-making. Through specialized tooling and sequential operations, it can perform tasks such as blanking (cutting a flat shape from a coil of metal), bending, coining, and even shallow drawing . The widespread adoption of punch press technology is due to its significant advantages: it saves materials and energy compared to traditional machining, operates with incredibly high efficiency, and has relatively low technical requirements for operators. Perhaps most importantly, through the use of various molds, it can produce complex parts that are difficult or impossible to achieve with other machining methods .
To understand how a punch press achieves its functions, one must become familiar with its key components and the mechanics that drive them. While designs vary between specific types of presses, the fundamental parts and principles remain consistent.
Frame: The frame is the robust, rigid structure that supports all other components and withstands the immense forces generated during operation. High-quality frames are often welded from steel plate and undergo heat treatment to eliminate internal stresses, ensuring the equipment works stably without deformation over long periods .
Ram (or Slide): The ram is the moving component that travels up and down in a linear path. It holds the punch and is responsible for delivering the force. The precision of the ram's movement directly dictates the accuracy of the final part.
Punch and Die: This is the tooling heart of the machine. The punch is a hardened tool steel component mounted on the ram. The die, its precise counterpart, is mounted on the machine's bed or bolster plate. The material is placed between them, and the punch descends into the die, shearing or forming the material. The clearance between the punch and die is critical for a clean cut .
Drive System: This is the source of the ram's power. It can be mechanical, using a motor, flywheel, and crankshaft or eccentric gear to convert rotational motion into linear motion, or hydraulic, using hydraulic cylinders to move the ram .
Clutch and Brake: These are critical safety and control mechanisms. The clutch engages the drive system to the ram, while the brake stops the ram's motion. Modern presses often use a combined clutch/brake unit with high sensitivity and safety features like double solenoid control valves and overload protection devices .
Stripper Plate: As the ram retracts after a punch, the material can tend to stick to the punch. The stripper plate is a component that prevents this by stripping or pulling the material off the punch as it retracts, ensuring smooth operation .
The basic mechanical cycle of a punch press is straightforward. First, the operator or an automated feeding system positions the material between the open punch and die. The ram then descends, driving the punch through the material and into the die. At the bottom of the stroke, the hole is punched or the form is made. Finally, the ram retracts, and the stripper plate helps release the material, allowing it to be moved to the next position. In the case of a cam-driven mechanism, a rotating cam with lobes periodically engages a pin on the ram, causing it to lift and then drop to punch a hole .
Punch presses are categorized based on their drive mechanism, frame structure, and level of automation. Each type offers distinct advantages suited to particular applications.
Table 1: Comparison of Mechanical vs. Hydraulic Punch Presses
This is the most common type for general metal stamping. Its drive system uses a motor to spin a flywheel. Energy is stored in the flywheel and released through a clutch to a crankshaft or eccentric gear, which moves the ram. Mechanical presses are known for their high speed and efficiency, making them ideal for high-volume production runs . Sub-types include:
Crank Press: The most common type, versatile for almost all punch press operations like冲切 (shearing), bending, and drawing .
Eccentric Gear Press: Offers better shaft rigidity and lubrication than crank presses but is often more expensive. Excellent for long strokes .
Knuckle Press: Provides a unique motion where the ram slows considerably near the bottom of the stroke, delivering a powerful "squeeze." This is ideal for coining, sizing, and other compression-based forging operations .

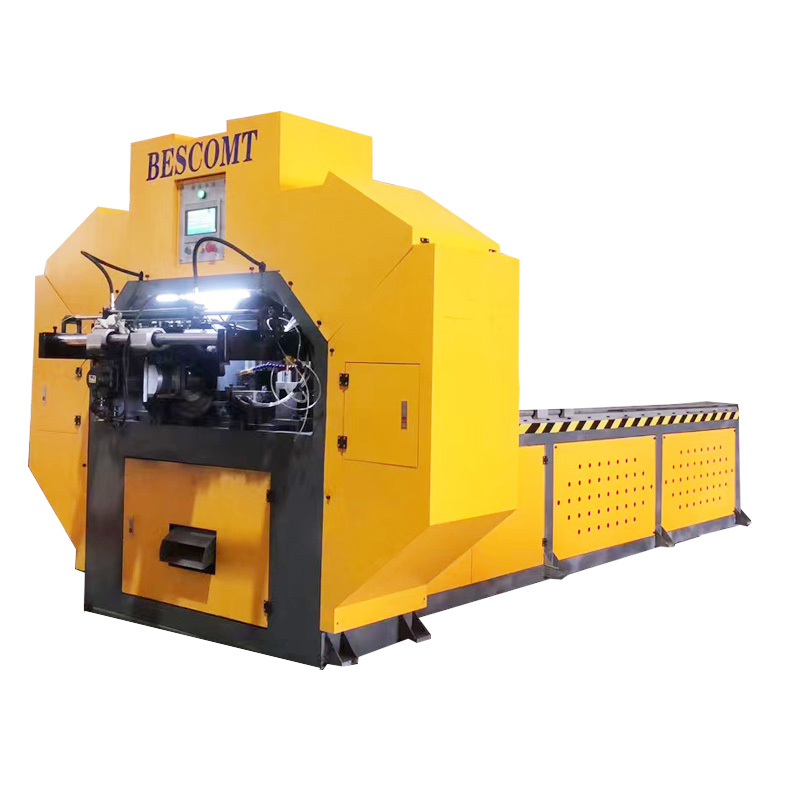

Instead of a flywheel, these machines use hydraulic fluid pumped into a cylinder to drive the ram. The key advantage of a hydraulic press is its ability to deliver full tonnage at any point in the stroke. This allows for complete control over the force and speed, making it perfect for applications like deep drawing or forming that require sustained pressure . They are generally more versatile in their capabilities but have slower cycle times than mechanical presses.
This is a highly advanced and automated type of punch press that is central to modern sheet metal fabrication. It features a rotating turret that holds dozens, sometimes hundreds, of different punch-and-die sets . Under computer numerical control (CNC), the machine can automatically rotate the turret to select the required tool, move the sheet metal on the X and Y axes, and punch a complex pattern of holes and forms with incredible speed and accuracy without requiring manual tool changes . This makes it exceptionally efficient for low-to-medium volume production of complex parts.
Servo Punch Press: Utilizes a servo motor to drive the ram, offering unparalleled control over the ram's position, speed, and motion profile. This technology combines the speed of mechanical presses with the flexibility of hydraulic ones.
Manual Punch Press: Small presses, sometimes called "kick presses," are operated by hand or foot. They are suitable for very light-duty work, small holes, or prototyping .
The applications of the punch press are virtually limitless within metalworking. Its ability to mass-produce parts with high precision and repeatability makes it indispensable across a wide swath of industries.
Electronics and Communications: Punch presses produce the intricate chassis, brackets, and shielding found in computers, servers, and communication devices. The switch sockets and connector housings we use daily are often made on these machines .
Automotive: The automotive industry is a major user of stamping technology. Punch presses create everything from body panels, brackets, and structural components to smaller parts like brake pads and seat frames .
Appliances and Furniture: Household items like cupboards, dishes, washing machine end caps, and the inner linings of refrigerators are all products of punch press operations .
Aerospace and Defense: Even the aerospace sector relies on punch presses for creating a "missile aircraft... a lot of accessories" with the required high strength-to-weight ratios and precision .
General Hardware: Any item in the categories of "transportation, hardware (automobiles, motorcycles, bicycles)" likely contains parts made by a punch press .
Table 2: Common Punch Press Operations and Their Descriptions
Choosing the right punch press for a specific application is crucial for achieving productivity, quality, and cost-effectiveness. Several factors must be weighed in this decision.
Tonnage: This is the maximum force a press can exert, measured in tons. It is the primary specification and must be sufficient for the intended material type, thickness, and the specific operation (e.g., piercing requires less force than bending a thick plate). Selecting a press with inadequate tonnage will result in poor part quality and can damage the machine.
Bed Size and Shut Height: The bed size determines the maximum dimensions of the workpiece that can be accommodated. The shut height is the distance from the top of the bed to the bottom of the ram when it is fully down, which dictates the maximum height of the tooling and material that can fit.
Stroke Length and Speed: Stroke length is how far the ram travels. A longer stroke is necessary for deep drawing operations. Stroke speed (strokes per minute - SPM) determines how fast the machine can cycle, directly impacting production rates.
Control System and Automation: For modern manufacturing, the level of automation is key. A basic punch press may be manually operated, while a CNC turret press offers fully automated, programmable operation . Automation can include servo feeders that automatically advance coil stock, or robotic arms for loading and unloading parts, which drastically improves efficiency and safety.
Safety Features: Given the immense power involved, safety is paramount. Modern presses must be equipped with light curtains, two-hand controls, door interlocks, and reliable brake monitoring systems. The presence of overload protection devices is essential to prevent damage to the machine and tooling in case of a mishap .
The evolution of the punch press continues to be driven by the demands for greater efficiency, flexibility, and intelligence in manufacturing. Several key trends are shaping the future of this foundational machine tool.
Increased Integration of Automation and Robotics: The trend toward "lights-out" manufacturing is pushing for fully automated production cells where punch presses are integrated with robotic material handling, automatic tool changers, and in-process inspection systems. This minimizes human intervention, maximizes uptime, and ensures consistent quality.
The Rise of IoT and Smart Manufacturing: Modern punch presses are becoming nodes on the industrial internet of things (IIoT). They are equipped with sensors that monitor machine health, track production data in real-time, and can predict maintenance needs before a breakdown occurs. This data-driven approach allows for optimized production scheduling and reduced downtime.
Enhanced Capabilities with Servo Drives: Servo-driven punch press technology is becoming more prevalent. The programmable motion control of servo drives allows manufacturers to customize the ram's motion for specific materials and operations, reducing noise and vibration, improving energy efficiency, and extending tool life.
Focus on Energy Efficiency and Sustainability: Manufacturers are increasingly designing punch presses with lower energy consumption. Servo motors, which draw power only when needed, are a key technology in this area, alongside designs that focus on low noise and no pollution .
From its fundamental role in piercing a simple hole to its advanced applications in creating complex, fully-formed components, the punch press has proven to be an enduring and adaptable force in manufacturing. Its journey from basic mechanical presses to today's CNC-driven, automated powerhouses mirrors the evolution of industry itself. The machine's core principle remains the efficient application of force, but its modern incarnations offer unprecedented levels of precision, speed, and intelligence. As we have explored, understanding its functions, types, and applications is key to leveraging its full potential. The continued innovation in punch press technology ensures it will remain a vital tool, shaping the metal and the world around us for years to come.
