Core Advantages of Aluminum Foil Container Production Lines：
Full PLC control with Siemens CPU216, supporting five operation modes—inching, single, continuous, die change, and stop
Production speed 40-80 pcs/min, multi-cavity molds available for higher output

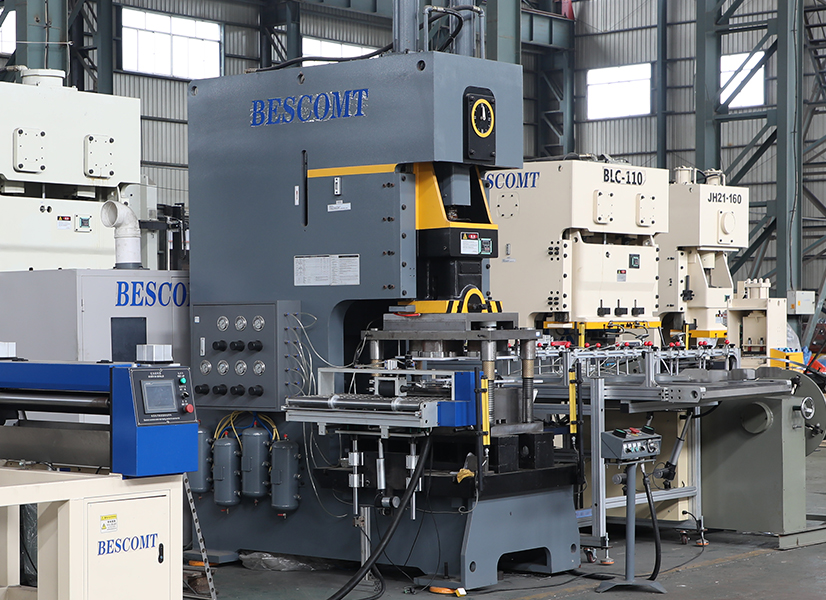

Feeding accuracy ±0.3-0.6mm ensures precise stamping positioning and low scrap rate

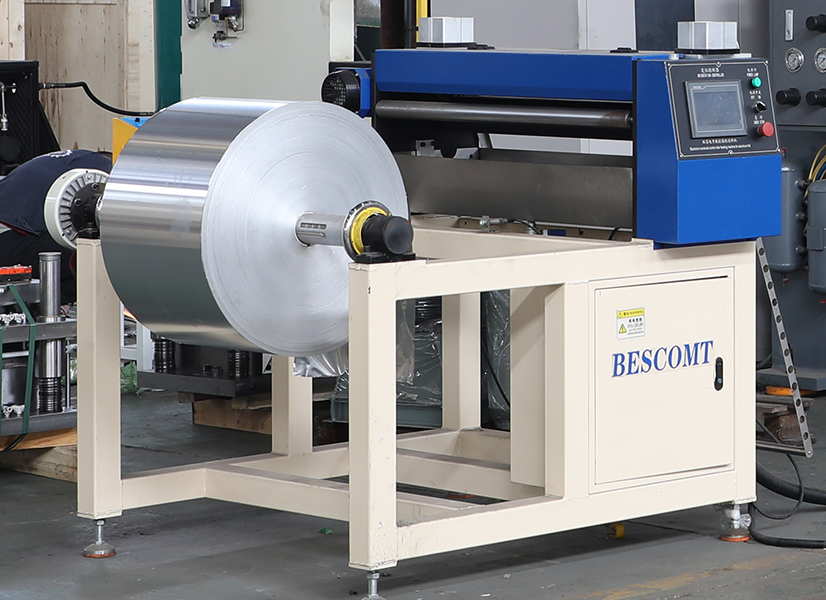

Even oil coating during feeding to protect the mold and extend its service life

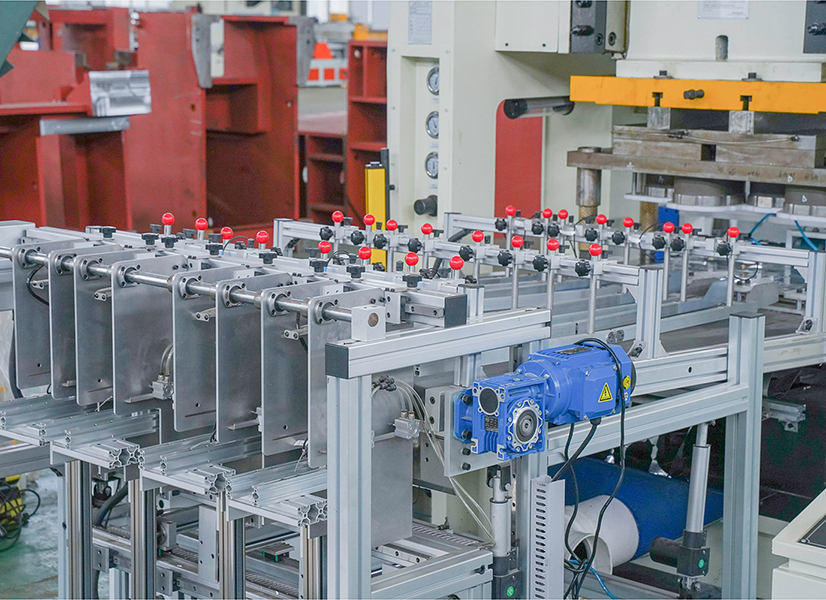

PLC-controlled stacking quantity, touchscreen parameter setting, automatic neat stacking of finished products

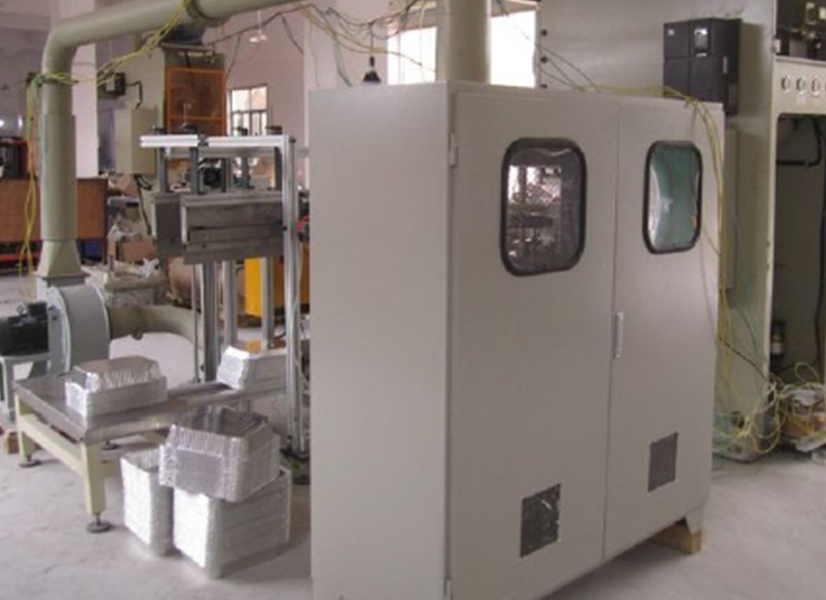

Built-in waste baler automatically compresses scrap aluminum foil for clean and environmentally friendly recycling
Diversified Product Types and Application Scenarios

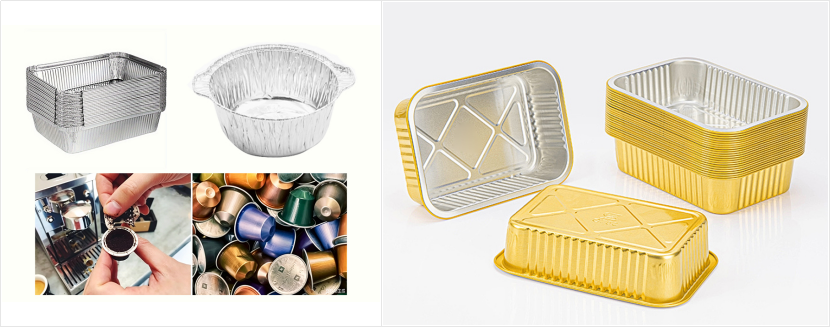

By changing the stamping mold, the aluminum foil container production line can produce the following products:
Square aluminum foil lunch boxes: Suitable for airline catering and takeaway meals
Round aluminum foil dinner plates: Suitable for baking and grilling
Aluminum foil baking pans / baking molds: Suitable for bakeries and home baking
Egg tart cups: Suitable for dessert shops
Multi-compartment trays (2-compartment/3-compartment): Suitable for meal portioning
Aviation meal boxes: Suitable for airline food packaging
Coffee capsules: Suitable for coffee capsule packaging
Wrinkle-free containers: Suitable for premium food packaging

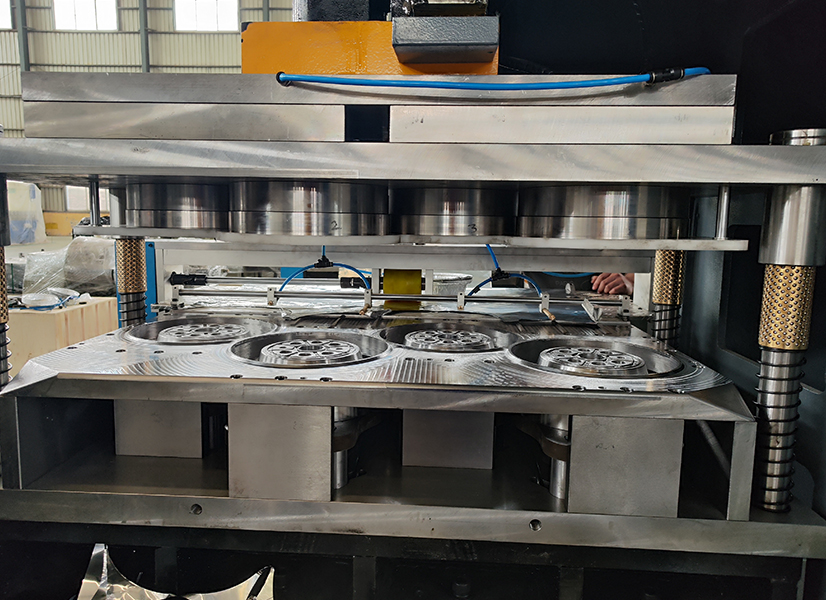

Molds can be customized as single-cavity, double-cavity, or multi-cavity to meet different production capacity requirements. Common 8011 and 3003 aluminum foil materials are both compatible. The production line is applicable to multiple fields including the takeaway industry, aviation food, home use, bakeries, and more. Aluminum foil containers are lightweight, recyclable, resistant to high and low temperatures, and heatable, making them widely used for hot meal takeaway and packaged food.
Selection Guide: How to Choose the Right Production Line Model
45-Ton Production Line
Applicable Products: One-out-of-two molds within 1000ml, or one-out-of-one ordinary containers within 1000ml-2500ml

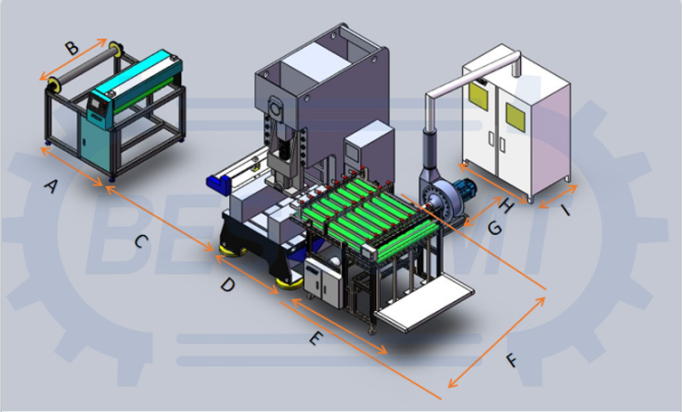

Standard Configuration: 600mm feeder, 2-track collector, separate waste collector, separate hydraulic baler
63-Ton Production Line
Applicable Products: One-out-of-two molds above 1000ml, or one-out-of-three for small containers
Standard Configuration: 900mm feeder, 3-track collector, separate waste collector, separate hydraulic baler
80-Ton Gantry Production Line
Applicable Products: One-out-of-four or one-out-of-five for containers above 750ml per customer requirements
Standard Configuration: 1300mm feeder, 4-track collector, integrated automatic waste collector and hydraulic baler
Material Utilization Rate Reference:
One-out-of-two and one-out-of-three: 85%
One-out-of-four and one-out-of-five: 88%
Quality and Service Assurance
1-Year Full Machine Warranty: Exceeding industry standards for long-term production peace of mind
