Hydraulic Press Working Principle Explained：
Hydraulic presses operate on hydraulic transmission principles, with Pascal's Law at their core: pressure applied to a confined fluid is transmitted equally in all directions. Simply put:
·The electric motor drives the pump, generating high-pressure hydraulic oil
·Hydraulic oil enters the main cylinder through control valves
·Pressure oil pushes the piston; the piston area determines output force
·Small force input on a small piston is exponentially amplified on a large piston
The force output of hydraulic presses is exceptionally stable and highly controllable, which is why they remain a universal solution for precision forming applications today.

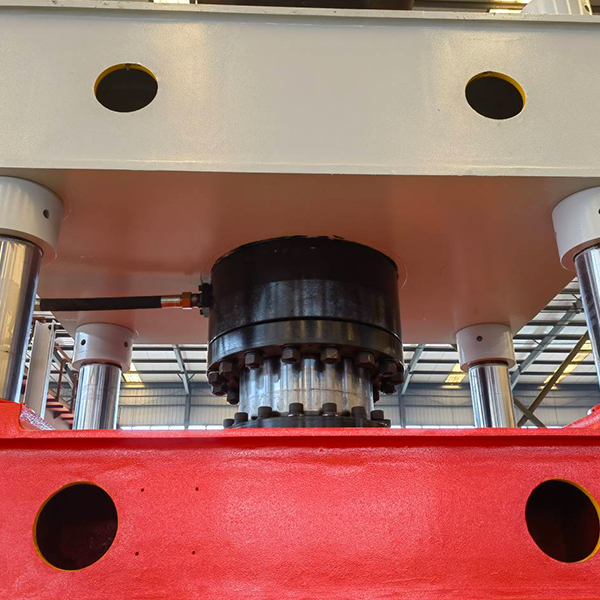

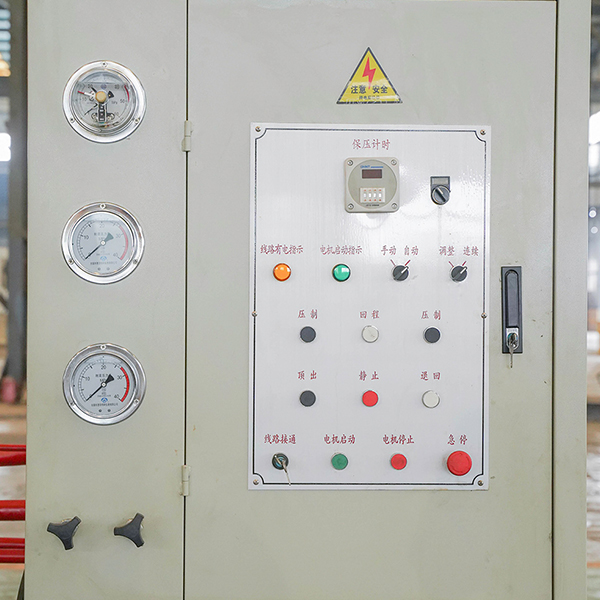

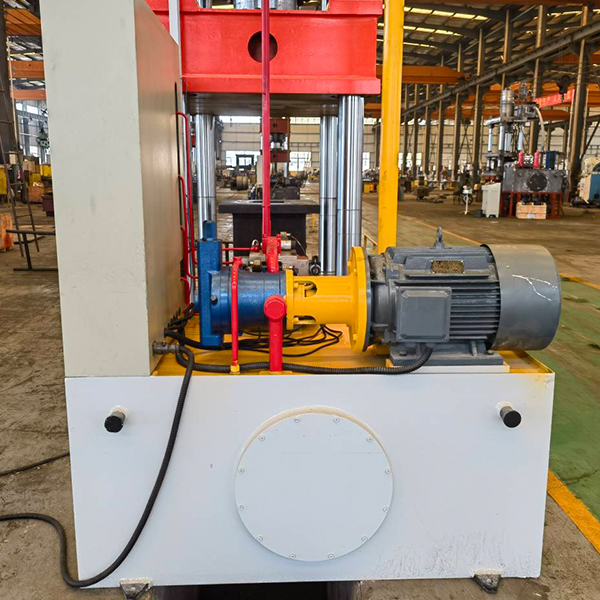

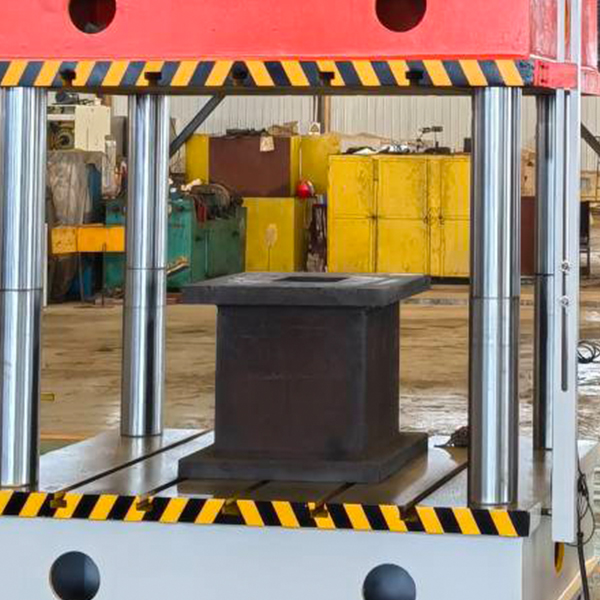

Core Components and Functions of Hydraulic Press：

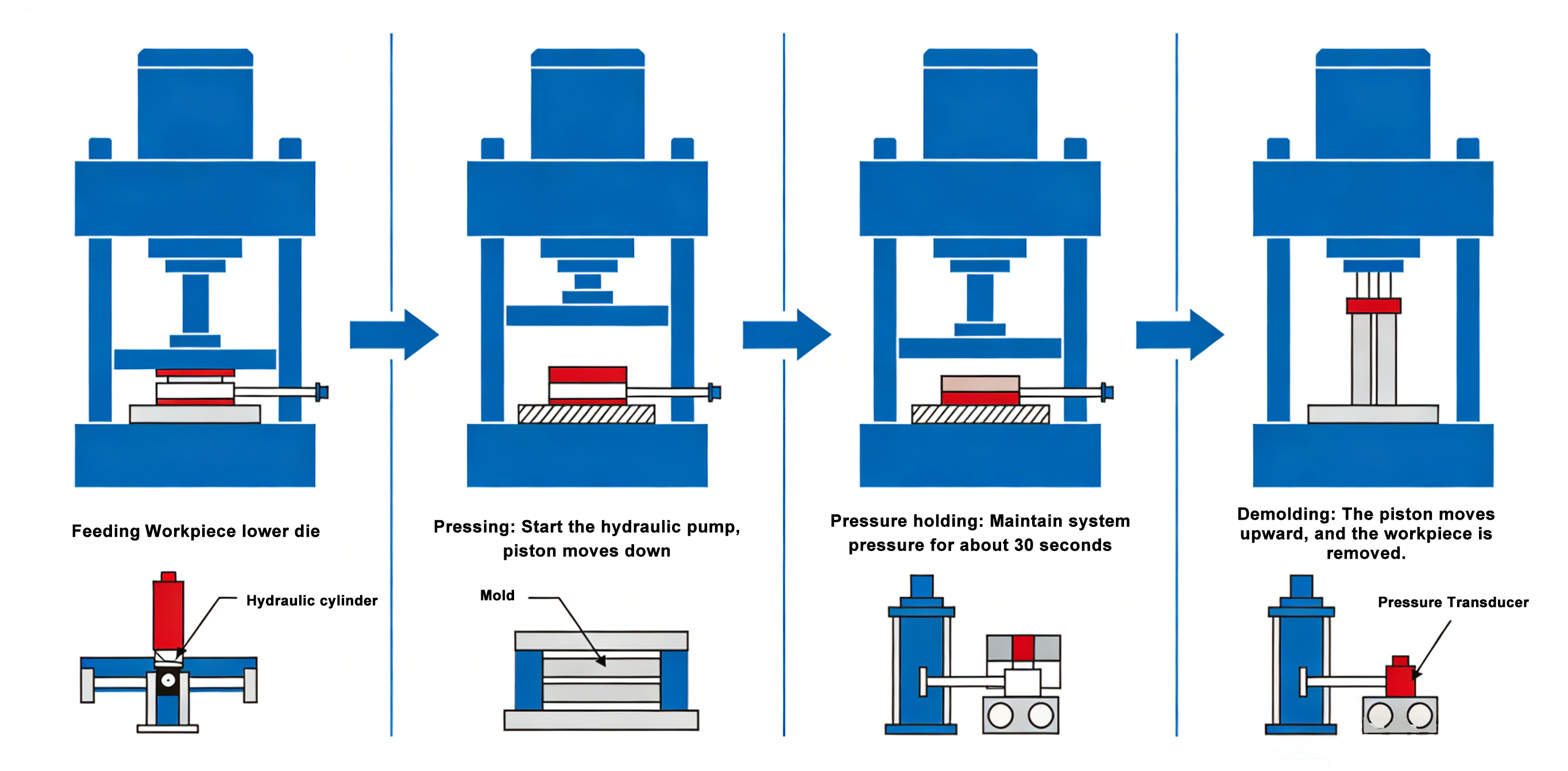

Hydraulic Press Working Process：
Hydraulic Press vs Pneumatic Press: Core Comparison：
Comparison Dimension | Hydraulic Press | Pneumatic Machine |
Power Medium | Incompressible hydraulic oil | Compressible air |
Speed/Cycle Rate | Slower | Faster |
Applications | Deep drawing, molding, forging, thick plate forming | Punching, riveting, light assembly |
Ideal Scenarios | High-tonnage, high-precision forming requiring pressure holding | High-speed, light-load tasks ，Hardware |
Hydraulic Press Typical Application Scenarios：
Industry | Typical Applications |
Automotive | Body panels, doors, hoods, chassis parts, battery trays, interior parts |
Home Appliance | Washing machine casings, refrigerator liners, AC panels, TV back covers |
Hydraulic Press Selection Core Elements：
Tonnage Calculation-Structure Selection（Four-column hydraulic press、C-frame hydraulic press、Frame hydraulic press、Hot hydraulic press）-Control System（Manual Control、PLC Control、Servo Control）
BESCO Company Advantages：
BESCO Machine Tool Limited has long been deeply involved in the forging and stamping industry, as a technological enterprise integrating R&D, production, and sales. We specialize in the development and manufacturing of hydraulic presses, punch presses, and automatic feeding systems.
Our Core Advantages:
·Professional Customization
·Technical Strength: Excellent design and technical team ensuring equipment precision, stability, and service life
·Comprehensive Service: 2-year warranty, 24-hour online service, on-site debugging until safe production
·Global Experience: Products exported to North America, South America, the Middle East, South Asia, Europe, Southeast Asia, Eastern Europe, Central Asia, and more
·Customization: Logo customization, color customization, packaging customization, size customization, material replacement
