Machine idle time is the primary margin-killer in sheet metal fabrication. In high-mix, low-volume manufacturing environments, the disproportionate impact of manual tool setups severely limits daily throughput. Every minute an operator spends loosening bolts, adjusting die clearances, or searching for the correct punch is a minute the machine is not making parts. This downtime directly inflates the cost-per-part and creates a ripple effect across the shop floor.
Inefficient setups create massive bottlenecks for downstream processes. When the punching department falls behind, bending, welding, and assembly operations starve for parts. This drops the Overall Equipment Effectiveness (OEE) to unacceptable levels. To remain competitive, fabrication shops must stop treating setup times as an unavoidable reality. The goal is to transform variable setup delays into predictable, manageable metrics.
Solving this requires a multi-tiered approach to setup reduction. You need a combination of programming optimization, advanced tooling systems, and strategic capital equipment upgrades. By systematically addressing CNC turret punching tool change inefficiencies, you can recover hundreds of lost production hours annually.
Standardization is the Baseline: Implementing a fixed layout for common turret punch stations eliminates up to 80% of routine manual tool swaps.
Software Drives Hardware: Advanced nesting and tool sequencing software can drastically reduce in-cycle indexing and operational tool change times without capital expenditure.
Tooling Innovations Yield Immediate ROI: Quick-change turret punch press tooling and multi-tool configurations maximize station utility and reduce physical setup times.
Capital Upgrades Require Strict ROI Evaluation: Transitioning to a modern servo turret punch press or integrating automated tool changers (ATC) offers massive throughput gains but requires rigorous cost-benefit analysis based on production volume.
Understanding the exact financial drain of a non-productive machine is critical. The hourly cost of downtime is calculated by adding the machine burden rate, the operator wage, and the lost opportunity cost of unproduced parts. When a machine sits idle during a setup, you are actively losing revenue that could have been generated by finished goods. Shop managers often underestimate this figure by only looking at direct labor, ignoring the massive overhead absorption that a running machine provides.
Consider a realistic scenario in a standard two-shift operation running 16 hours a day. If an operator spends 30 minutes per shift on manual setups, that equals one hour of lost production daily. Over a 250-day working year, this totals 250 hours of downtime. If you reduce that setup to just 10 minutes per shift, you recover roughly 166 hours of active punching time annually. This recovered time translates directly into increased capacity and higher profit margins. For a shop running a high-speed CNC turret punch press, 166 hours can mean tens of thousands of additional hits and hundreds of completed nests.
Applying Single-Minute Exchange of Die (SMED) principles to punching operations yields excellent results. SMED focuses on converting as many setup steps as possible into tasks performed while the machine is running. This methodology systematically strips away wasted motion on the shop floor. Operators should never be looking for an Allen wrench while the machine is stopped.
You must distinguish between internal and external setup times. Internal setup time occurs when the machine is completely stopped. This includes loading tools, adjusting clamps, and verifying clearances. External setup time involves tasks completed while the machine runs, such as tool assembly, sharpening, staging, and offline calibration.
Setup Category | Definition | Examples | Optimization Goal |
|---|---|---|---|
Internal Setup | Tasks performed while the machine is stopped. | Loading punches, swapping dies, adjusting work clamps. | Minimize or eliminate entirely. |
External Setup | Tasks performed while the machine is running. | Assembling tool canisters, measuring tool lengths, staging next job. | Standardize and perform offline. |
Verification | Checking tolerances and clearances. | Test hits, measuring slug drop, checking die alignment. | Automate via presetters. |
Establishing baseline KPIs is the next step. Target specific OEE percentages and track your setup-to-run time ratios. Monitor tool indexing speeds and document the exact duration of physical changeovers to measure improvement accurately. A good target is keeping internal setup time under five minutes per job changeover.
Creating a standard turret layout is highly effective. This involves dedicating 70-80% of your turret punch stations to universally used tools. Allocate standard rounds, squares, and parting tools permanently across A, B, C, D, and E stations. When operators do not have to remove these common tools, physical setup time drops dramatically. For example, a 0.250" round punch should never leave the turret if it is used on 60% of your nests.
There are minor trade-offs to this approach. You might experience slight increases in sheet travel time if the standard tool is located further away from the current punching coordinate. However, the massive reduction in physical tool loading time easily outweighs the extra seconds of sheet movement. The machine can move the sheet at thousands of inches per minute; an operator walks much slower.
Station size strategy also matters. Grouping tools logically by station size limits the physical adjustment of guide assemblies and spring packs during a changeover. Keeping large forming tools in dedicated E stations prevents operators from constantly reconfiguring the heavy holders. Smaller A and B stations should be reserved for high-frequency, lightweight punches.
Physical housing differences dictate how efficiently you can swap tools. Understanding these dynamics helps you optimize your specific machine platform. Thick turret systems offer distinct setup advantages. Canister-style tooling and fully guided systems minimize alignment steps. The punch, stripper, and spring pack remain assembled as a single unit, allowing the operator to drop the entire canister into the bore quickly.
Thin turret systems present different challenges. Jaw-type systems and key alignments require more precise handling. To optimize thin turret setups, focus on standardizing blade and guide replacement procedures to reduce the time spent fiddling with small components. Using dedicated alignment jigs offline can save minutes per tool.
Multi-tool holders are game-changers for setup reduction. These holders convert a single auto-index station into 3, 8, or even 20+ individual tools. Instead of physically swapping tools for different hole sizes, the machine simply rotates the internal index to select the required punch. This is particularly useful for shops running a wide variety of hardware insertion holes.
This completely eliminates manual tool drops for those specific sizes. It effectively expands the capacity of smaller turrets, allowing you to run complex nests without stopping the machine. Using cluster punches for high-density perforation also reduces total hit counts and indexing frequency, saving significant in-cycle time. A 25-pin cluster punch can finish a ventilation grille in seconds compared to minutes with a single punch.
Traditional tooling setups require shims, collars, and manual alignment. Modern turret punch press tooling utilizes drop-in, push-button, or tool-less adjustment systems. These quick-change designs allow operators to adjust tool lengths in seconds without wrenches. The less time hands are on the tool, the faster the machine gets back to punching.
Implement offline optical tool presetters to measure punch lengths and set tool heights away from the machine.
Establish standard clearance matrices to use a unified clearance for a range of material thicknesses.
Utilize push-button length adjustment canisters to eliminate the need for shimming after sharpening.
Color-code dies based on clearance to prevent operators from installing the wrong die during a fast changeover.
CAM software optimizes the sequence of hits to minimize turret rotation and sheet movement. Modern nesting software analyzes the entire sheet and calculates the most efficient path for the punching head. It looks at the entire daily schedule, not just a single part, to group similar material and tooling requirements together.
Tool sorting features are vital. Programmers can set the machine to complete all hits for a specific tool across the entire nest before indexing to the next tool. This reduces in-cycle delays caused by constant turret rotation. If you have 500 holes requiring a 1/2" punch spread across 20 parts on a sheet, the machine does them all at once.
Programmers must balance the trade-off between minimizing tool changes and minimizing sheet travel. Sometimes, moving the sheet across the table is faster than rotating a heavy turret to a new station. This requires a deep understanding of the machine's specific kinematics.
This decision depends on machine specifications. Compare the X/Y axis speed against the turret rotation speed. If the machine has a lightning-fast axis but a slower turret, it makes sense to finish all hits with one tool first, even if it means moving the sheet further. Conversely, if turret indexing is near-instantaneous, localized punching might be more efficient.

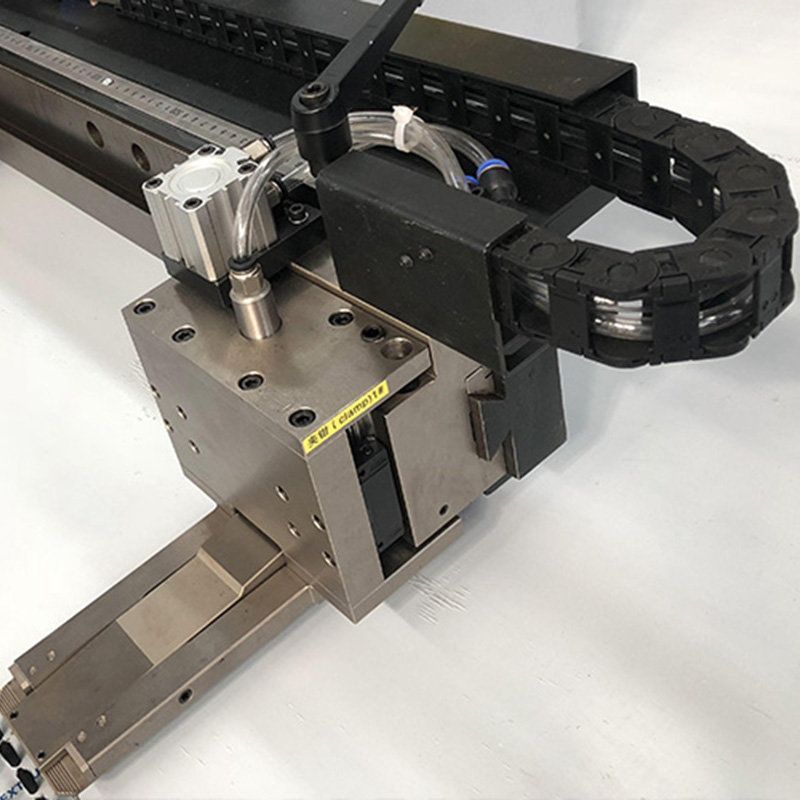

Manual clamp adjustments during setup create hidden downtime. Operators often waste time measuring and moving clamps to avoid punch interference zones. If a clamp is in the wrong spot, the machine will either throw an error code or, worse, punch right through the clamp, destroying the tool.
Advanced CAM software and programmable workholders solve this. The software automatically calculates safe clamp zones and positions the sheet clamps accordingly. This eliminates manual operator intervention and prevents costly tool crashes. The operator simply loads the sheet against the pins, and the machine handles the rest.
Evaluating the mechanical advantages of a servo turret punch press reveals significant setup benefits. Servo-electric drives offer faster ram speeds, precise stroke control, and lower energy consumption compared to traditional hydraulic systems. The ram can hover just millimeters above the sheet, reducing the stroke distance and increasing hit rates dramatically.
Programmable ram speeds reduce the need for specialized tooling. You can use standard tools for forming operations, louvering, and countersinking simply by controlling the stroke depth electronically. This versatility directly reduces physical tool change requirements. Instead of loading a specific countersink tool, the servo ram can press a standard tool to the exact depth required.
High-end automation takes setup reduction to the next level. Machines equipped with external tool carousels (ATC) swap tools into the turret automatically during the machine cycle. The operator never has to touch the tools. The machine pulls from a library of hundreds of punches and dies.
ATC enables lights-out, unattended manufacturing for highly variable nests. The system maps the required tools for the upcoming job and stages them automatically, eliminating internal setup time entirely. While the machine is punching with station A, the ATC is loading the next required tool into station B.
Justifying capital expenditure requires a strict framework. Calculate the payback period based on recovered setup hours, increased hit rates, and reduced maintenance costs. A new machine might seem expensive, but the recovered capacity often pays for the equipment quickly. You must measure the value of the additional parts you can produce, not just the labor saved.
Consider scalability. Investing in a higher-station turret or an ATC future-proofs the shop. It allows you to handle smaller batch sizes and tighter lead times profitably, keeping you ahead of market demands. When a customer demands a prototype by tomorrow, a machine with a massive tool capacity and zero setup time wins the job.
Rapid tool changes carry the risk of improper seating. Rushing a setup can result in tool crashes, severe turret damage, or misaligned keys. Operators must balance speed with precision. A misaligned parting tool will shear the die and potentially damage the turret bore, causing days of downtime.
Establish strict, documented Standard Operating Procedures (SOPs) for tool loading. Utilize visual management at the machine interface. Color-coding, shadow boards, and RFID tool tagging ensure operators grab the right tool and install it correctly every time. Training should focus on the "why" behind the procedures, not just the "how."
Faster setups can sometimes lead to neglected tool maintenance. When operators are pushed to change tools quickly, they might skip inspecting the punch edges. A dull tool requires more tonnage, creates larger burrs, and increases the risk of slug pulling.
Implement a scheduled tool sharpening program based on hit-count tracking within the CNC control. Monitoring hit counts prevents slug pulling and excessive burrs caused by dull punch edges. Sharp tools perform better and reduce unexpected in-cycle failures. Take 0.005" off the punch face regularly rather than waiting for it to chip and requiring a 0.050" grind.
Conduct a one-week time study on your current setup processes to identify primary bottlenecks and measure exact internal setup times.
Audit your most frequently used tools and establish a permanent, standardized turret layout to eliminate repetitive loading.
Consult with your CAM software representative to ensure tool sorting and dynamic nesting features are fully utilized.
Implement a strict offline tool preparation routine to shift internal setup tasks to external setup time.
A: Physical manual tool changes typically take 1 to 5 minutes per tool, depending on the station size and operator skill. In-cycle automated indexing, where the turret simply rotates to the next active station, usually takes only 1 to 3 seconds.
A: Multi-tool stations house multiple punches within a single station. This allows the machine to switch active tools via internal indexing rather than requiring an operator to stop the machine and physically swap tools.
A: Internal setup includes tasks that require the machine to be completely stopped, such as loading tools into the turret. External setup includes tasks done while the machine is running, like staging the next tool or assembling tool canisters offline.
A: Yes, especially for high-mix shops. Servo presses offer programmable stroke control, allowing standard tools to perform forming operations. This reduces the need for specialized tooling and minimizes physical changeovers.
A: Advanced CAM software utilizes tool sorting and nesting optimization. It groups hits by tool, ensuring the machine finishes all operations with one punch before rotating the turret, which minimizes in-cycle indexing delays.
A: Quick-change tooling systems feature canisters and assemblies designed for tool-less length adjustment. They utilize drop-in loading mechanisms to eliminate manual calibration and wrench-adjustments at the machine.
A: Larger stations (like D and E) hold heavier tools and require different weight handling, alignment keys, and guide considerations. Smaller stations (A and B) are typically lighter and easier for operators to drop in quickly.
