Why Hydraulic Press Machines Lose Forming Accuracy

Precision forming is the lifeblood of profitable manufacturing operations. As industry tolerances tighten, equipment reliability becomes a critical competitive advantage. For production managers and process engineers, compromised hydraulic press forming accuracy is not just a technical nuisance. It is a direct driver of increased scrap rates, accelerated die wear, and production bottlenecks. Precision degradation rarely happens overnight. It is a cumulative result of mechanical fatigue, hydraulic inconsistencies, and control system drift.

This guide deconstructs the physical realities behind accuracy loss. It provides a hard-line decision framework for evaluating equipment. You will learn how to decide whether to overhaul an existing hydraulic press machine or invest in new equipment. We explore how structural deflection, fluid contamination, and sensor latency destroy repeatability. We also outline specific diagnostic steps to pinpoint the exact failure mode. Finally, we establish strict benchmarks to help you protect your production schedules.

Key Takeaways

• Mechanical Deflection is Inevitable but Manageable: Long-term structural fatigue and gib clearance expansion are the primary culprits for off-center loading and loss of parallelism.

• Hydraulic Degradation is Invisible: Micro-leaks, fluid contamination, and proportional valve wear directly alter pressure holding capabilities, destroying repeatability.

• Application-Specific Vulnerabilities: High-precision tasks, such as those performed by a deep drawing hydraulic press, amplify minor sensor drifts into major product defects (e.g., uneven wall thickness, tearing).

• The 40% Replacement Rule: If the cost to restore platen parallelism, overhaul hydraulics, and update PLCs exceeds 40% of a new machine's price, replacement is structurally and financially safer.

The Business Cost of Compromised Forming Accuracy

Variations in bottom-dead-center (BDC) repeatability directly cause out-of-tolerance parts. You see this immediately in increased secondary finishing costs. Scrap and rework metrics climb sharply when machines lose precision. Operators must manually correct defects, which wastes valuable labor hours.

Poor platen parallelism ruins expensive custom dies. Uneven pressure distribution leads to premature tool chipping. It also causes severe galling on the tool surface. Replacing a custom die costs thousands of dollars and halts production entirely. Tooling degradation acts as a massive financial drain on your department.

We must calculate Overall Equipment Effectiveness (OEE) carefully. Extended setup times ruin your daily efficiency. Operators spend hours performing frequent recalibrations just to hit baseline tolerances. Unplanned maintenance downtime introduces hidden costs. Your performance and quality scores drop simultaneously.

Sectors like aerospace and automotive demand strict compliance. Traceability risks arise when you cannot guarantee holding pressure. Failed compliance checks nullify vendor qualifications instantly. If your equipment cannot produce a repeatable pressure curve, you lose lucrative contracts. Quality assurance teams simply cannot certify parts formed under erratic conditions.

Root Cause 1: Structural Deflection and Mechanical Wear

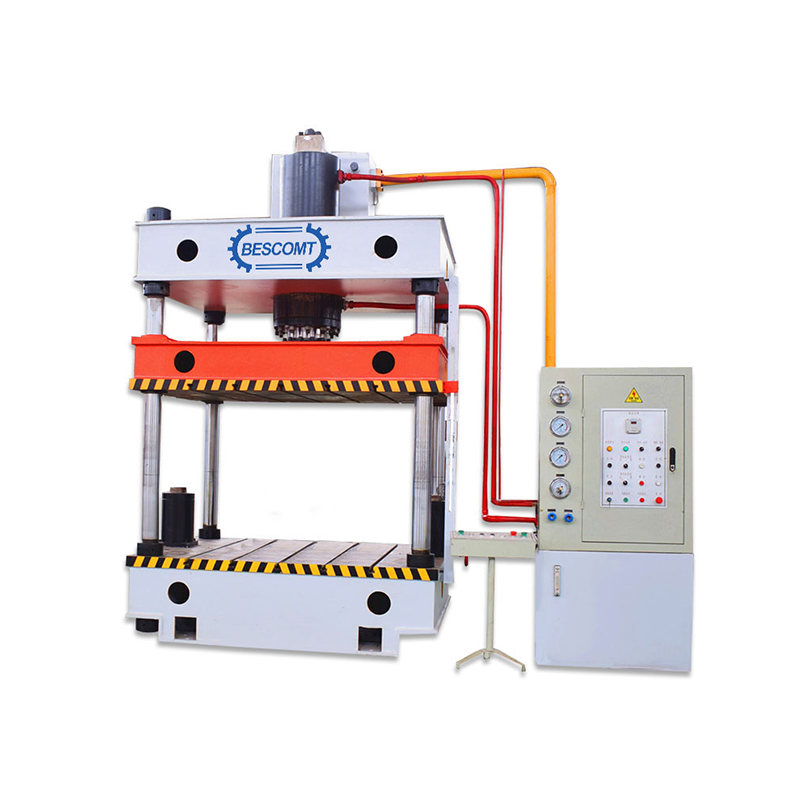

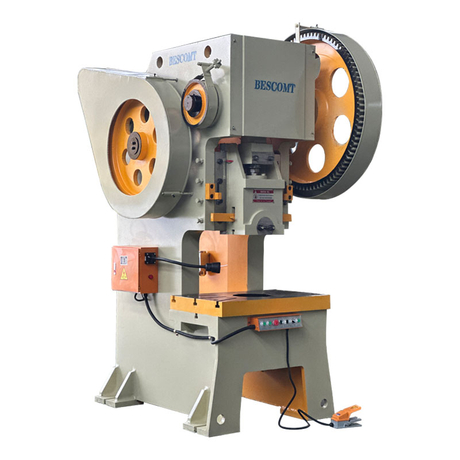

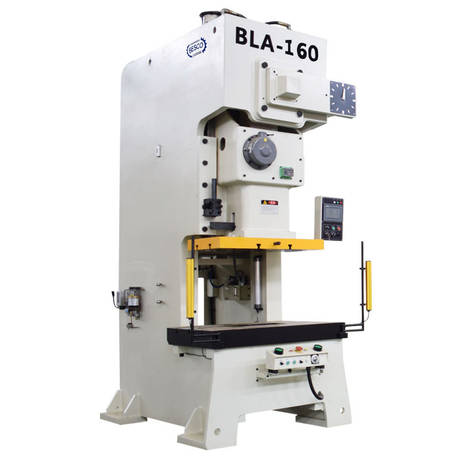

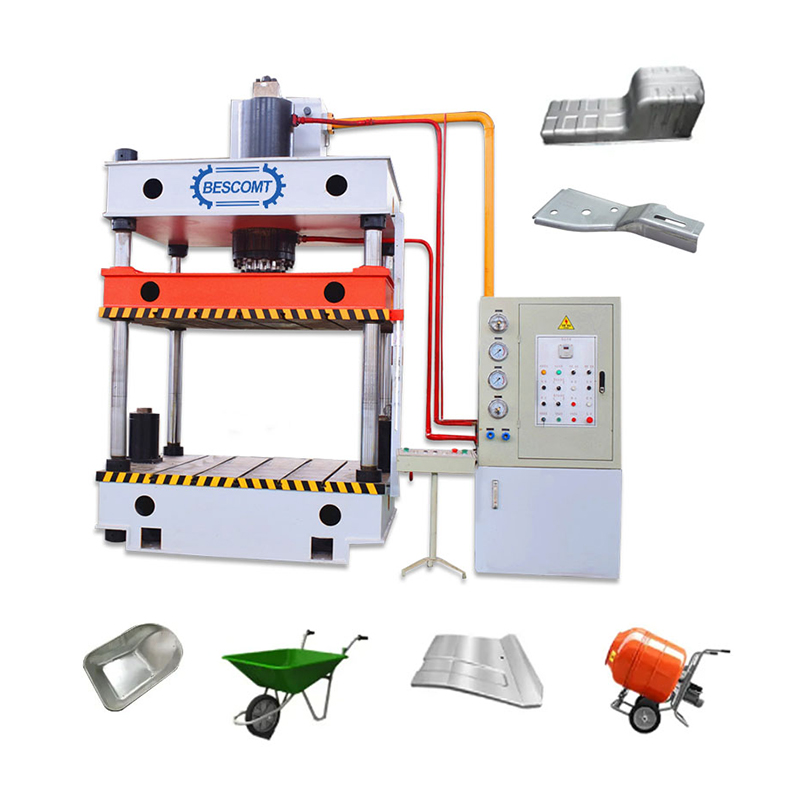

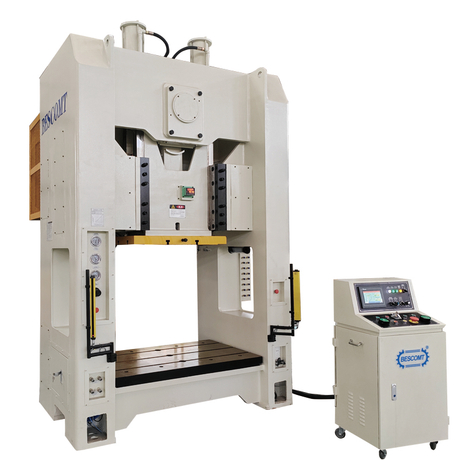

Structural deflection happens naturally over time. Frame fatigue compromises precision significantly. We evaluate C-frame designs against H-frame (4-post) structures carefully. H-frames offer superior rigidity under maximum tonnage over a 10-year lifecycle. C-frames often yield slightly during heavy pressing. This slight bend ruins micron-level tolerances.

Friction induces wear on guide rails eventually. This creates a lateral shift during the stroke. We call this unwanted movement yaw or pitch. Gib clearance expansion directly destroys vertical accuracy. As the bronze or steel guides wear down, the ram gains excessive lateral play. The punch no longer meets the die perfectly centered.

Uneven bed distribution causes platen parallelism loss. The mechanics of this shift are predictable but devastating. When you apply eccentric loads repeatedly, the frame naturally stretches unevenly. Over time, the platen rests at a microscopic slant. This slant translates directly into defective workpieces.

These mechanical shifts destroy complex forming operations. A deep drawing hydraulic press remains particularly sensitive to mechanical wear. Asymmetric blank holder pressure causes material wrinkling. It also leads to severe tearing of the metal blank. Uneven material flow damages the final product geometry completely. You cannot fix mechanical deflection with software adjustments.

Root Cause 2: Hydraulic System Degradation

Fluid contamination remains an invisible killer of repeatability. Particulate buildup and thermal stress break down oil viscosity. Degraded fluid alters internal dynamics completely. This causes sluggish ram response times. It also creates dangerous pressure spikes that shock the entire frame. Clean oil is mandatory for repeatable forming.

Internal bypassing happens when piston seals wear down. Fluid leaks past these seals silently. You will notice the ram creeping downward unintentionally. Alternatively, the press fails to hold sustained tonnage at the bottom of the stroke. Seal wear compromises the fundamental physics of the pressure system.

Aging proportional valves suffer from severe hysteresis. The internal spools wear out from constant micro-movements. They lose their ability to translate electrical signals into exact flow rates. This deterioration destroys stroke repeatability outright. You command a specific pressure, but the valve delivers something different. Consistency becomes impossible to achieve.

Pump cavitation presents another serious threat to precision. You will hear a distinct whining or rattling noise when cavitation begins. Entrained air bubbles collapse violently under pressure. This damages pump internals rapidly. It delivers erratic, surging force to the workpiece instead of a smooth, controlled stroke. Ignoring cavitation guarantees catastrophic pump failure.

Root Cause 3: Control System Drift and Sensor Lag

Control system drift happens quietly in the background. Physical vibration and thermal expansion impact linear encoders continuously. These optical or magnetic scales miscalibrate over time. They report false ram positions back to the PLC. The controller thinks the ram is perfectly positioned, but reality differs by several thousandths of an inch.

Electronic pressure sensors also experience severe fatigue. Analog drift pushes these sensors out of their calibrated range. The internal diaphragm flexes millions of times and eventually loses its baseline zero. This leads directly to over-pressurization. It can also cause under-pressurization of the workpiece, resulting in incomplete forming.

Legacy PLCs compound these physical sensor issues. Outdated processing speeds create measurable latency in the system. The controller fails to close the feedback loop fast enough. High-speed, precision forming requires millisecond response times. Old electronics simply cannot keep up with modern tolerance demands. They process inputs too slowly to make accurate, real-time valve adjustments.

• Sensor Verification Best Practice: Always verify electronic transducer readings against a calibrated analog mechanical gauge monthly.

• Scale Maintenance: Clean linear scales regularly to prevent dust and oil mist from confusing the optical reader.

• PLC Audits: Measure the scan rate of your legacy PLC. If it exceeds 10 milliseconds, it is too slow for precision closed-loop control.

Troubleshooting vs. Upgrading: A BOFU Decision Framework

You need a strict decision framework to manage aging equipment. Guesswork leads to wasted capital and continued production delays. We recommend executing a rigid diagnostic action plan before making any major financial decisions.

1. Step 1: Conduct a dynamic parallelism test under load. Static tests hide fundamental frame flaws. You must measure platen parallelism while the machine presses against load blocks.

2. Step 2: Perform oil analysis (spectroscopy). Send fluid samples to a lab. They will identify internal component wear metals like bronze, steel, or aluminum.

3. Step 3: Audit sensor calibration. Compare your digital readouts against certified mechanical gauges and external laser trackers.

Understanding the rebuild threshold saves time and money. It makes sense to scrape gibs and replace seals when the frame remains structurally sound. Retrofitting a new CNC controller works well if the hydraulic manifold is relatively modern. However, you must calculate these costs accurately.

The replacement trigger centers on scalability and physical risk. You cannot retrofit a fundamentally yielded frame. If the steel has permanently stretched, no software update will fix it. Throwing capital at a machine with obsolete core metallurgy is highly risky. Evaluate the criteria below to make a data-driven choice.

Evaluating a Hydraulic Press Manufacturer for Long-Term Precision

Partnering with a reliable vendor ensures long-term operational precision. Look for finite element analysis (FEA) data first. This proves frame rigidity mathematically. FEA modeling shows minimal deflection under maximum eccentric loads. Never accept theoretical tonnage claims without reviewing the engineering stress maps.

Component sourcing matters immensely for lifecycle maintenance. A trustworthy hydraulic press manufacturer specifies off-the-shelf, globally supported Tier-1 hydraulics. You want components from brands like Bosch Rexroth or Parker. Avoid proprietary, closed-ecosystem valves completely. Proprietary parts create vendor lock-in and extend repair lead times drastically.

Advanced sensing infrastructure should come standard on new equipment. Demand closed-loop servo-hydraulic controls. You also need active parallelism correction systems for sensitive dies. Predictive maintenance sensors monitor fluid temperature and vibration automatically. These smart sensors prevent unexpected breakdowns and keep your OEE high.

Finally, demand strict Factory Acceptance Testing (FAT). Request transparent, documented run-offs before taking delivery. Use your specific custom dies and production materials for the test. Verify micron-level accuracy before the machine ever ships from the builder's facility. A rigorous FAT process eliminates post-installation surprises.

Conclusion

Losing hydraulic press forming accuracy is a clear symptom of underlying mechanical, hydraulic, or electronic degradation. While routine maintenance can delay this decline temporarily, structural fatigue and component obsolescence eventually force a commercial decision. Ignoring these physical realities only inflates your scrap rates and damages expensive tooling.

To protect your production schedules, take these actionable next steps:

• Audit your current scrap rates and trace them back to specific press machines.

• Perform dynamic parallelism tests under load to check for permanent frame yield.

• Apply the strict 40% repair-vs-replace threshold before approving major hydraulic overhauls.

• When upgrading, partner with a manufacturer that prioritizes measurable frame rigidity and transparent component sourcing over basic tonnage claims.

FAQ

Q: What is the acceptable tolerance for platen parallelism in a standard hydraulic press?

A: Industry standards typically demand platen parallelism within 0.001 to 0.002 inches per foot under full load, though this varies based on the application (e.g., blanking requires tighter tolerances than basic bending).

Q: Can hydraulic fluid age directly cause a loss in pressing accuracy?

A: Yes. Degraded or contaminated oil suffers from changes in viscosity and increased compressibility (due to entrained air), causing delayed ram response and erratic pressure holding, directly impacting forming repeatability.

Q: How do I know if the accuracy loss is mechanical or electronic?

A: If the ram consistently overshoots or undershoots the target position by varying amounts, it is often a sensor or PLC latency issue. If the bed is out of parallel or the ram shifts laterally during the stroke, the issue is mechanical (gib wear or frame deflection).

Q: Is a servo-hydraulic press more accurate than a traditional hydraulic press?

A: Generally, yes. Servo-driven systems control the pump speed directly, offering faster, closed-loop feedback and eliminating the hysteresis often found in traditional proportional valving, resulting in highly repeatable position and pressure control.
