Punching Machine Loading Too Labor-Intensive? Plate Feeder Vs Robot Arm—Which One Fits My Stamping Workshop?

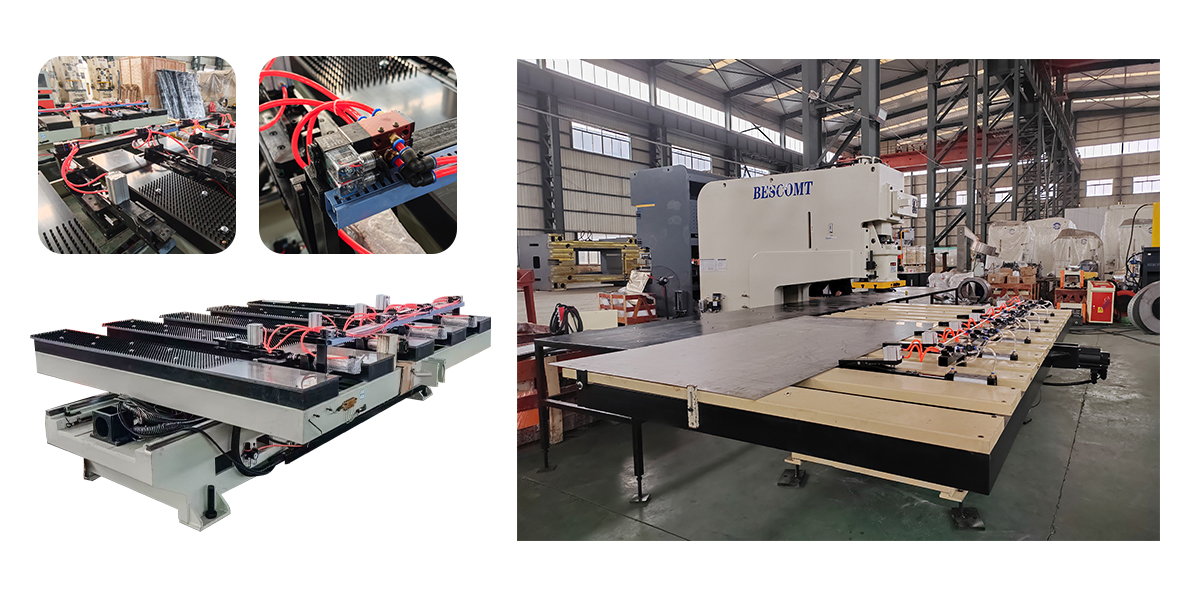

1. Plate Feeder

A plate feeder is an automated feeding equipment specially designed for sheet metal stamping. Its core feature is: using clamps to grip the sheet and move it forward/back/left/right, precisely positioning the sheet into the punching machine die.

Working Principle:

·Operator places sheet on the feeder's waiting area (or automatic loading via destacker)

·Feeder's clamp automatically grips the sheet edge

·Servo drive system controls the clamp, moving the sheet in X-axis (forward/back) and Y-axis (left/right) directions

·According to preset program, each stamping position is precisely fed under the die

·After stamping, the clamp continues moving for the next station feeding

Standard Configuration Parameters:

Parameter	Specification	Description
Standard Plate Size	1.25m × 2.5m	Covers most sheet specifications
Applicable Plate Thickness	≤4mm	Customizable beyond this range
Drive Method	Servo motor + ball screw	Ensures feeding accuracy
Control Method	PLC touchscreen control	Multiple feeding parameters can be stored

Core Advantages:

·High precision: Servo control, feeding accuracy up to ±0.1mm

·Good stability: Clamps grip sheet firmly, no slipping

·Strong adaptability: Suitable for various materials—iron plate, stainless steel, aluminum, copper, etc.

·Simple operation: One-click start after programming, no manual intervention needed

Limitations:

·Can only handle sheets, not coils

·Limited by clamp stroke, sheet size must be within equipment specifications

·Usually only handles feeding, unloading requires separate configuration

Application Scenarios:

·Punching machine processing various sheet sizes (shearing, punching, pre-bending stages)

·Sheet metal stamping for electronic enclosures, appliance casings, automotive panels

·Production lines requiring frequent sheet size changes (recipe storage, one-click changeover)

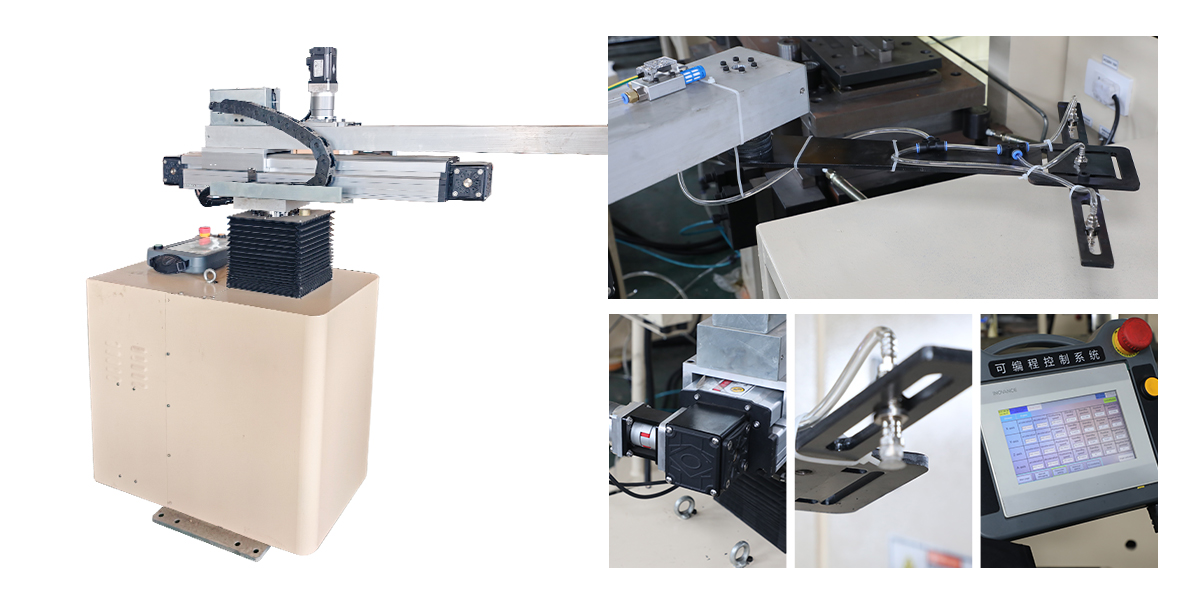

1. Robot Arm

A robot arm is the most flexible equipment in stamping automation. Through its body + gripper structure, it can imitate human arm movements, completing the entire automation process from destacking, feeding, inter-process transfer to unloading.

Core Structure：

Component	Description
Body	Robot arm main body, including base, arm, and wrist, achieving multi-axis motion through drive devices
Gripper	End effector, can be customized in various ways—vacuum suction cups, electromagnets, grippers, etc.

Determining Axes by Drive Devices：

A robot arm's number of axes (degrees of freedom) determines its motion capability. Common axes and application scenarios:

Axes	Features	Application Scenarios
2-Axis	X, Z direction only	Simple loading/unloading, suitable for single press
3-Axis	X, Y, Z direction	Planar transfer, suitable for sheet feeding
4-Axis	X, Y, Z + rotation	Medium complexity transfer, workpiece angle adjustable
6-Axis	Can reach any position	Complex trajectories, multi-angle installation, multi-machine lines

Core Advantages:

·Highly Flexible: Programmable, adapts to various products and processes

·Comprehensive Functionality: Can simultaneously complete loading, unloading, inter-process transfer, and stacking

·Labor Savings: One robot arm can replace 2-3 operators, enabling one person to monitor multiple machines

·High Safety: Avoids workplace injury risks during manual loading/unloading

·Continuous Production: Can run 24/7, achieving "lights-out factory"

Limitations：

·Requires programming and debugging,demands on technical personnel

·Grippers need customization based on workpieces, may require gripper during changeovers

Application Scenarios：

·Single Press Loading/Unloading: Destacking, feeding, unloading, stacking completed in one stop

·Multi-Press Line: Multi-station stamping production line, robot arms transfer workpieces between processes

·Large Workpiece Handling: Heavy sheets difficult for manual handling, such as automotive panels and appliance casings

·Complex Trajectory Requirements: Workpieces need rotation or flipping during transfer

2. Selection Comparison

Comparison	Plate Feeder	Robot Arm
Core Function	Clamp grips plate, moves forward/back/left/right feeding	Multi-axis motion, completes complex handling trajectories
Applicable Materials	Sheets (≤4mm standard)	Sheets, stamping parts, various workpieces
Motion Mode	2-axis (X, Y direction)	2-6 axis optional, high flexibility
Gripper Type	Clamps (fixed type)	Various customizations: suction cups, grippers, electromagnets
Function Scope	Feeding only (requires separate unloading device)	Can simultaneously complete loading, unloading, transfer, stacking
Programming Difficulty	Simple (PLC parameter setting)	Complex (requires trajectory programming)
Application Scenarios	Sheet stamping, batch production	Complex workpieces, multi-process lines, flexible production
