In high-volume sheet metal fabrication, parts requiring dense hole patterns, perforations, or repetitive geometries often create production bottlenecks and margin erosion. Selecting the wrong sheet metal fabrication equipment for hole-intensive parts leads to inflated cycle times, excessive secondary operations like deburring or leveling, and compromised part quality. Resolving this bottleneck requires an objective technical evaluation of the two primary methodologies. You must weigh mechanical shearing via a turret punch press against thermal processing via a sheet metal laser cutting machine. Both technologies offer distinct advantages depending on your specific part geometries, material types, and production volumes. This guide explores the mechanical and thermal dynamics of each process. We will examine cycle times, edge quality, material stress, and facility requirements. You will learn how to match your specific production variables to the correct machine architecture to maximize throughput and eliminate downstream processing delays.
Speed in Repetition: For high-density, standard-geometry hole patterns, a CNC punching machine significantly outperforms laser cutting in raw cycle time due to high hit rates (often exceeding 600-1000 hits per minute) and cluster tooling.
Geometric Flexibility & Edge Quality: Laser cutting eliminates physical tooling constraints, offering infinite geometric flexibility, zero tool wear, and superior edge quality without mechanical distortion.
Forming Capabilities: Turret punch presses offer a distinct advantage by performing secondary forming operations (louvers, dimples, countersinks, extrusions, taping) in the same setup, which a laser cannot do.
Material Stress and Distortion: High-density punching introduces mechanical stress that can warp sheets (oil-canning), requiring secondary leveling, whereas lasers introduce localized thermal stress (Heat-Affected Zones).
Evaluating equipment requires a deep understanding of your specific production variables. Dense perforations behave differently than long straight cuts. You must define exact parameters before comparing machine capabilities. A single part containing hundreds of small holes demands specific processing strategies. Standard profile cutting machines struggle with dense perforations because high hole counts multiply piercing times and mechanical stress factors.
Establish the baseline requirements for your production run. You need strict dimensional tolerances for hole placements. Determine acceptable edge conditions for your final product. Some applications tolerate minor burrs, while others demand pristine, dross-free edges. Target cycle times dictate the required machine throughput. You must balance speed requirements against acceptable quality standards.
Analyze the blueprint for hole density and spacing requirements.
Determine the acceptable tolerance for edge rollover and burr height.
Calculate the required parts per hour to meet production schedules.
Identify any required 3D forms like louvers or countersinks on the part.
Analyze the ratio of holes to overall part perimeter. Parts with high hole-to-perimeter ratios fundamentally shift equipment performance metrics. When you process a ventilation panel with thousands of 0.25-inch holes, the internal geometry processing time dwarfs the perimeter cutting time. This specific ratio dictates whether mechanical shearing or thermal cutting will yield the highest throughput.
Processing sheet metal inherently induces stress. The method of material removal determines the type and severity of deformation. You must anticipate how the material will react to the chosen cutting method.
Mechanical Stress: Cumulative punching force deforms thin sheet metal. Repeated impacts displace material outward from each hole. This cumulative displacement leads to warping or "oil-canning" across the sheet.
Thermal Stress: Concentrated heat inputs alter material micro-structures. High-density laser piercing creates localized heat buildup. This thermal concentration causes distortion, especially in thin materials with closely spaced holes.
Material type and thickness dictate processing viability. Mild steel, stainless steel, and aluminum react differently to shear forces and concentrated heat. Highly reflective alloys challenge specific thermal cutting methods. Thicker plates resist mechanical shearing but yield easily to high-power thermal beams. Evaluate your primary material stock to narrow equipment options.
Comparing turret punch press vs laser cutting requires a baseline knowledge of how each system removes material. Each machine architecture approaches material separation from fundamentally different physical principles.

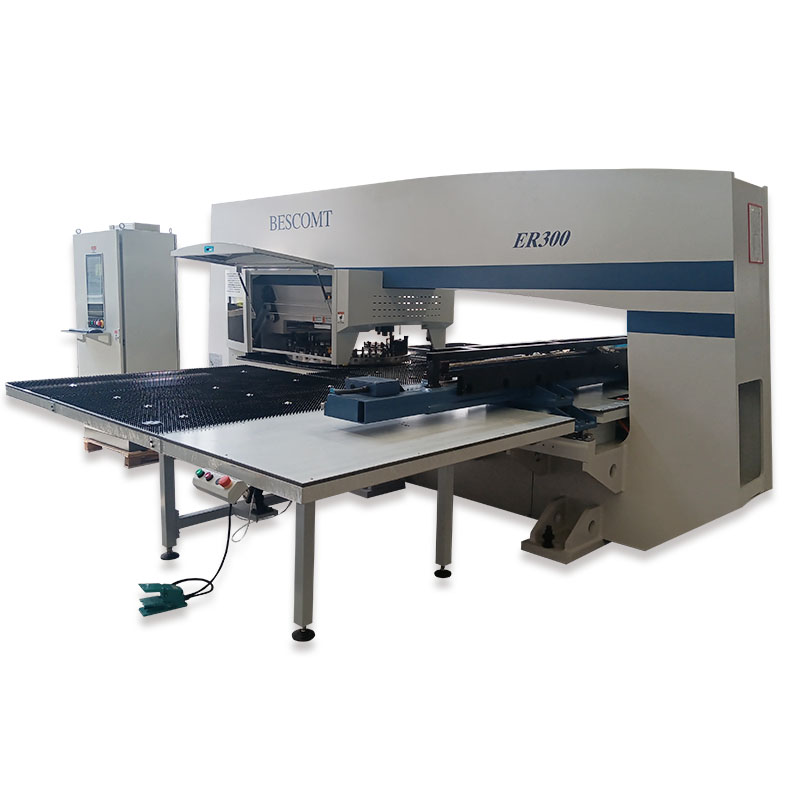

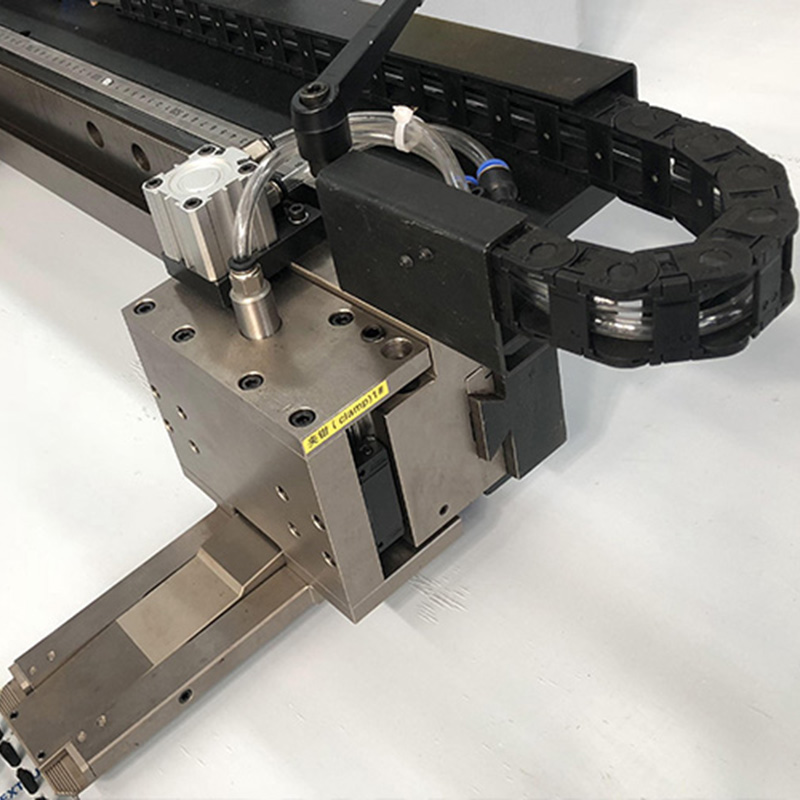

A CNC punching machine utilizes mechanical or hydraulic force. It drives a hardened steel punch through sheet metal into a corresponding die. This action physically shears the material. The machine relies on a rotating turret holding multiple standard and custom tool sets. This architecture allows rapid tool indexing during the program cycle. It excels in high-volume runs of parts with standard hole sizes. It handles repetitive clusters, louvers, and integrated 3D forms efficiently.
The mechanical shearing process involves three distinct phases: plastic deformation, penetration, and fracture. As the punch contacts the material, it forces the sheet into the die. The material stretches until it exceeds its ultimate shear strength. At this point, the material fractures, and the slug separates from the main sheet. This physical process requires precise clearance between the punch and die, typically calculated as a percentage of the material thickness.
Thermal cutting utilizes a focused beam of high-density light. It combines this beam with an assist gas like nitrogen, oxygen, or air. The process melts and vaporizes material along a programmed path. It operates entirely without physical cutting tools. The beam acts as a universal tool, controlled by CNC programming and nesting software. This technology suits low-to-medium volume runs and complex organic geometries. It handles rapid prototyping and processes thick or highly abrasive materials with ease.
Fiber lasers generate the beam using active optical fibers and semiconductor diodes. This solid-state technology delivers a shorter wavelength than older CO2 lasers, allowing for higher absorption rates in metals. The assist gas plays a critical role in the process. Oxygen creates an exothermic reaction, adding heat to cut thicker mild steel. Nitrogen acts as an inert shielding gas, blowing away molten material to leave a clean, oxide-free edge on stainless steel and aluminum.
We must evaluate these technologies across specific performance metrics relevant to high-density hole patterns. The right choice depends on how these metrics align with your daily production requirements.
Speed metrics vary drastically based on part geometry. Hole-intensive parts highlight the mechanical differences between shearing and melting. You must look beyond linear cutting speeds and evaluate the time required for individual hole creation.
Process Metric | Turret Punch Press | Laser Cutting Machine |
|---|---|---|
Hole Creation Method | Single mechanical stroke | Pierce cycle followed by profile cut |
Hit/Pierce Rate | 600 - 1000+ hits per minute | Depends on material thickness and pierce type |
Cluster Tooling | Yes (multiple holes per stroke) | No (single beam processing) |
Grid Processing | Extremely fast via indexing | Slower, though fly-cutting improves speed |
Punching Hit Rates: Turret punch presses execute grid patterns rapidly. Modern servo-electric machines achieve hit rates exceeding 1000 hits per minute on tight centers. Each hole takes mere milliseconds.
Laser Piercing and Dwell Times: Lasers incur a time penalty for each new hole. The beam must pierce the material before cutting the profile. Hundreds of pierces add significant cycle time.
Cluster Tooling: CNC punching machines utilize cluster punches. A single stroke creates dozens of holes simultaneously. This exponentially increases throughput for grilles, screens, or ventilation panels.
Laser Fly-Cutting (Grid Cutting): Modern lasers employ fly-cutting techniques. The cutting head moves continuously while pulsing the beam. This cuts grid lines without stopping to pierce, improving speed on specific patterns.
Material utilization impacts overall efficiency. Each process dictates specific nesting rules. You must account for the physical constraints of the machine when laying out parts on a sheet.
Punching Web Requirements: Punch presses require physical material webs. You must maintain minimum distances between holes and part boundaries. This maintains sheet stability during aggressive mechanical impacts.
Common-Line Cutting on Lasers: Lasers perform common-line cutting. You can nest parts micro-inches apart. This maximizes material yield and significantly reduces scrap rates.
Part Retention (Tabs vs. Micro-joints): Punched sheets use mechanical shake-out tabs. Lasers utilize ultra-clean micro-joints. Micro-joints hold parts securely while allowing easier separation post-processing.
When punching, the skeleton must remain rigid enough to withstand the pulling forces of the stripping process. If the web is too thin, the sheet will distort, causing positional errors for subsequent hits. Lasers do not exert physical force on the sheet, allowing for much tighter nesting and thinner skeletons. This difference often results in a 10-15% higher material yield when using a laser.
The method of material removal dictates the final edge condition. Secondary operations often consume the time saved during primary processing. You must evaluate the entire part lifecycle, not just the time on the primary machine.
Feature | Turret Punch Press | Laser Cutting Machine |
|---|---|---|
Edge Condition | Rollover, shear, fracture zones | Clean, smooth, potential dross on thick plate |
Burr Generation | Common, requires deburring | Minimal, depends on gas pressure |
Forming Capability | Louvers, countersinks, tapping | None (2D cutting only) |
Sheet Flatness | Prone to oil-canning (needs leveling) | Generally flat, localized thermal warp |
Mechanical shearing creates artifacts. You will see rollover, burnish, fracture, and micro-burrs on punched edges. This often necessitates secondary deburring. Thermal cutting produces a clean, burr-free edge. However, you risk creating Heat-Affected Zones (HAZ). Punch presses offer unique in-machine forming. You can tap, countersink, and create louvers. This eliminates downstream routing to a press brake. High-density punching often requires secondary roller levelers to flatten stressed parts.
Physical constraints limit processing capabilities. Material properties dictate machine selection. You cannot force a machine beyond its physical limits without causing severe damage.
Material thickness and shear strength dictate required punching tonnage. This limits the maximum hole size and material thickness a punch can handle. Attempting to punch thick, high-tensile steel damages tooling. Modern fiber lasers scale effortlessly to thicker materials. They easily process 1-inch steel plate where punching remains physically impossible. Fiber lasers also process reflective materials like copper and brass efficiently. Mechanical punching remains entirely material-agnostic regarding reflectivity.
When punching, the rule of thumb states that the minimum hole diameter cannot be less than the material thickness. Attempting to punch a hole smaller than the material thickness will snap the punch tip. Lasers do not have this physical limitation and can cut holes significantly smaller than the material thickness, provided the assist gas can clear the molten material.
Operating these machines requires different consumable strategies. You must manage physical tools for one and gases for the other.
The Cost of Physical Tooling: Building a punch tooling library requires significant investment. You must maintain, sharpen, and replace punches and dies regularly to ensure clean cuts.
Laser Consumables: Laser cutting relies heavily on assist gases. Bulk nitrogen and oxygen usage represents a major operational factor. You also need to replace nozzles and protective lenses.
Programming and Nesting Software Optimization: Programming a punch press involves complex tool path planning, nibbling routines, and hit optimization. Laser programming focuses on path planning, head-down logic, and gas flow control.
Energy Consumption: Hydraulic punch presses draw significant power to drive the ram. Servo-electric punches are more efficient. High-kilowatt solid-state fiber lasers require substantial electrical draw for the power source and the associated chiller units.
Deploying new fabrication equipment introduces facility and operational challenges. You must prepare your workforce and physical plant to handle the specific requirements of the chosen technology.
Punch press operation requires deep mechanical knowledge. Operators face a steep learning curve regarding tool clearances and die selection. They must optimize sheet utilization while preventing catastrophic tool crashes. Slug pulling presents a constant risk. A punched piece of metal can return to the top of the sheet, destroying the workpiece or turret. Operators must understand how to use shear-angled punches and specialized dies to mitigate this risk.
Laser operation requires different expertise. Modern lasers feature highly automated nesting software. However, operators must understand gas pressures, focal lengths, and thermal dynamics to maintain cut quality. They need to recognize when a bad cut is caused by a dirty protective window versus incorrect focus position. Troubleshooting a laser involves adjusting parameters on a screen rather than physically shimming a tool.
Machine installation demands specific facility preparations. Turret punch presses require substantial physical space. They often need reinforced concrete foundations to absorb kinetic shock and vibration. Without a proper foundation, the machine will shake itself out of alignment, causing premature tool wear and inaccurate parts.
Fiber lasers require environmental controls. You must install proper ventilation and dust collection systems to handle the metallic dust generated during cutting. Fiber lasers mandate laser-safe enclosures (Class 1 housings) to protect personnel from scattered radiation. Punching machines require significant noise mitigation, including hearing protection protocols and acoustic enclosures to protect operators from the constant impact noise.
To optimize your production floor and select the right equipment for your specific part mix, execute the following steps immediately:
Audit your current part library to calculate average hole-to-perimeter ratios across your highest-volume components.
Request specific time studies from equipment manufacturers for your top five most produced perforated parts.
Evaluate your current secondary operations bottleneck to determine if in-machine forming could eliminate downstream routing.
Assess your facility's foundation and floor space to ensure compatibility with heavy mechanical or enclosed thermal equipment.
A: A punch press is significantly faster for dense perforations. It utilizes high hit rates and cluster tooling to punch multiple holes per stroke. A laser must stop, pierce, and cut every individual hole, increasing cycle time.
A: No. Lasers are strictly thermal cutting tools. They cannot create 3D forms like louvers, dimples, extrusions, or countersinks. These features require the mechanical force provided by a punch press.
A: The mechanical punching process displaces material outward from each hole. This builds up cumulative compressive stress across the sheet, causing it to warp or "oil-can." Laser cutting prevents this specific mechanical stress.
A: While laser cutting eliminates mechanical stress, it introduces localized thermal stress. Concentrated heat from dense piercing on thin materials can cause thermal distortion and alter the material's micro-structure.
A: Slug pulling occurs when a punched piece of scrap metal (the slug) sticks to the punch tool and returns to the top of the sheet. This can severely damage the workpiece and the machine's tooling.
A: Punch presses are limited by their tonnage capacity and the shear strength of the material, typically maxing out around 0.25-inch mild steel. Modern fiber lasers can easily cut through 1-inch steel plate and beyond.
