2-in-1 Vs 3-in-1 Feeder: Which One Should My Punching Machine Use?

1. Core Difference: What Exactly Do They "Integrate"?

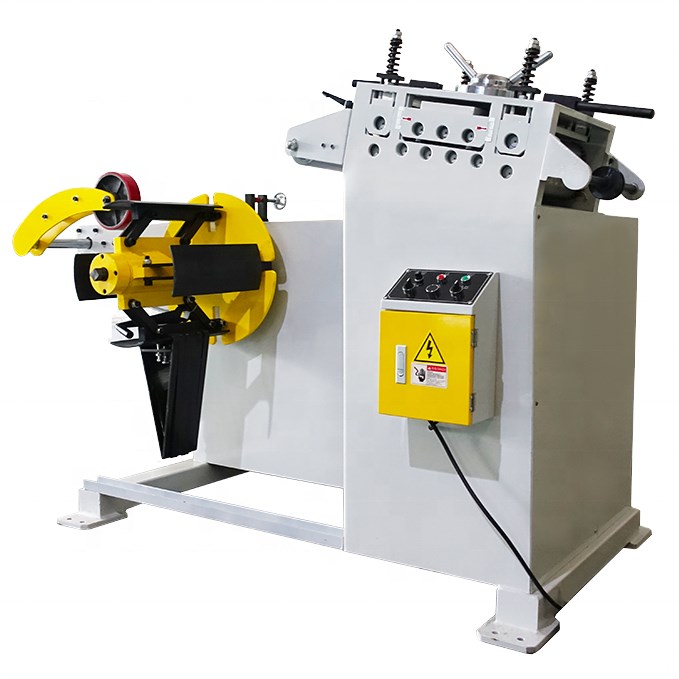

Decoiler and straightener 2 in 1

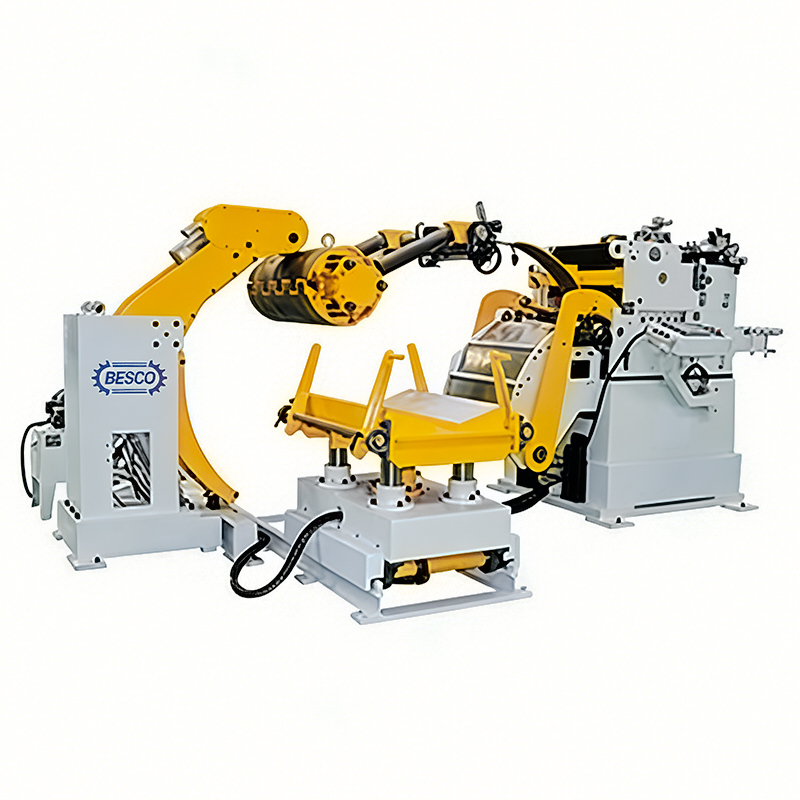

Decoiler and straightener feeder 3 in 1

2-in-1 Decoiler & Straightener: Integrates the decoiler and straightener, but feeding still requires an additional separate feeder (which can be a roller feeder, air feeder, or NC servo feeder). This means your production line has at least two pieces of equipment that need to work together, requiring a material buffer zone in between

3-in-1 Decoiler Straightener Feeder: Truly integrates "decoiling + straightening + feeding" in one unit. One machine handles everything. From coil to die entry, no intermediate transfer is needed

2. Space Occupation: Does 2-in-1 Really Take Up More Space?

2-in-1 + separate feeder configuration requires a 2-4 meter material buffer zone in between; otherwise, the material won't feed properly. Adding the equipment's own length, the whole system easily occupies 10-12 meters of linear space. For most workshops, this is half the length of a production line.

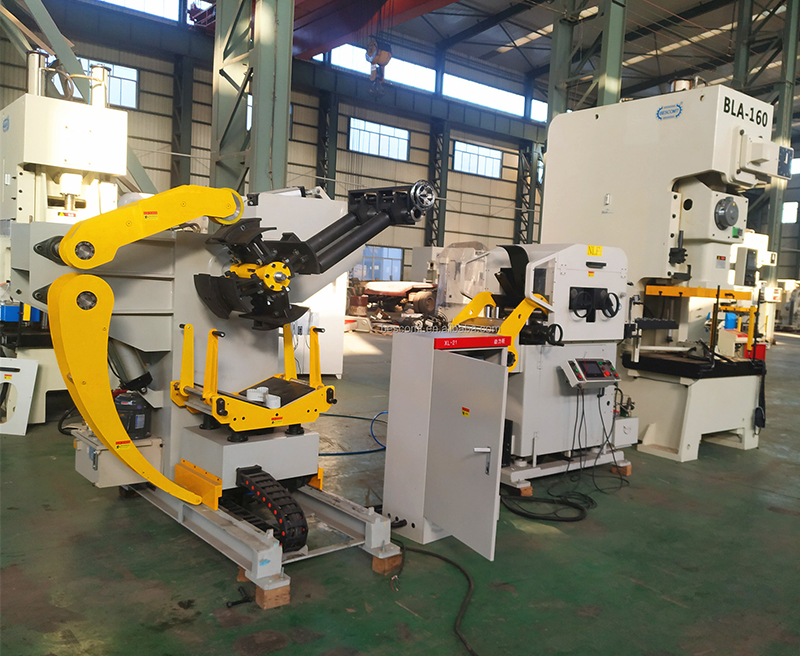

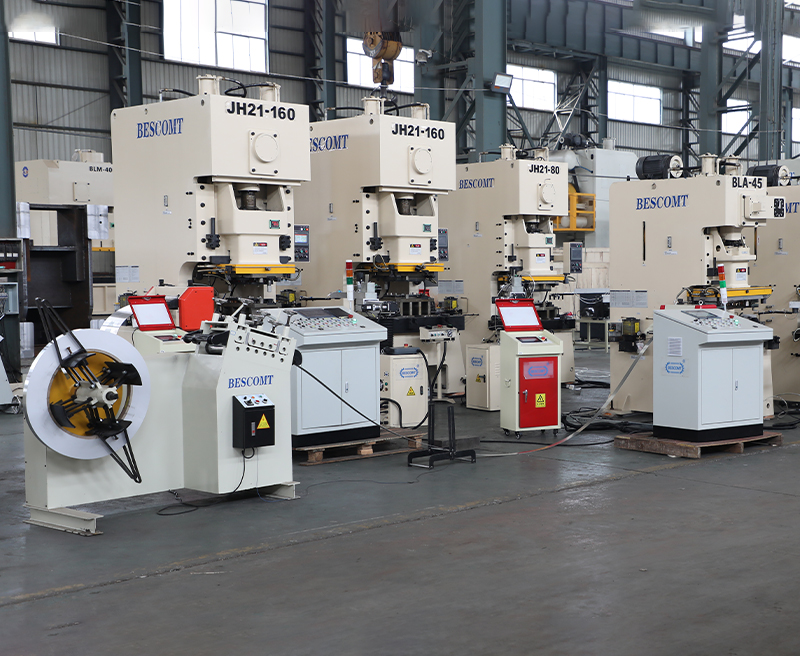

3-in-1 feeder integrates three functions into one frame and can be placed right next to the punch press, eliminating the buffer zone. We measured it—the space saved by one 3-in-1 compared to a 2-in-1 setup is enough for an additional punch press or to use as a temporary storage area. With current factory rental rates, this saved space translates directly to profit.

Application Summary:

·2-in-1 + separate feeder: Suitable for spacious workshops with limited budgets

·3-in-1 feeder: Suitable for space-constrained modern workshops high efficiency

Core Insight: Material Thickness Determines Your Choice

Based on our workshop's practical experience, materials can be divided into three categories:

Standard plate: 0.3-3.2mm — Either 2-in-1 or 3-in-1 works, depending on budget and space

Medium-thick plate: 3.2-4.5mm — Strongly recommend 3-in-1, saves labor and time

Thick plate: 4.5-6.0mm — Must use 3-in-1, otherwise material threading is exhausting

How 3-in-1 Solves Thick Plate Feeding Challenges

Below are the core configurations of 3-in-1 and their value:

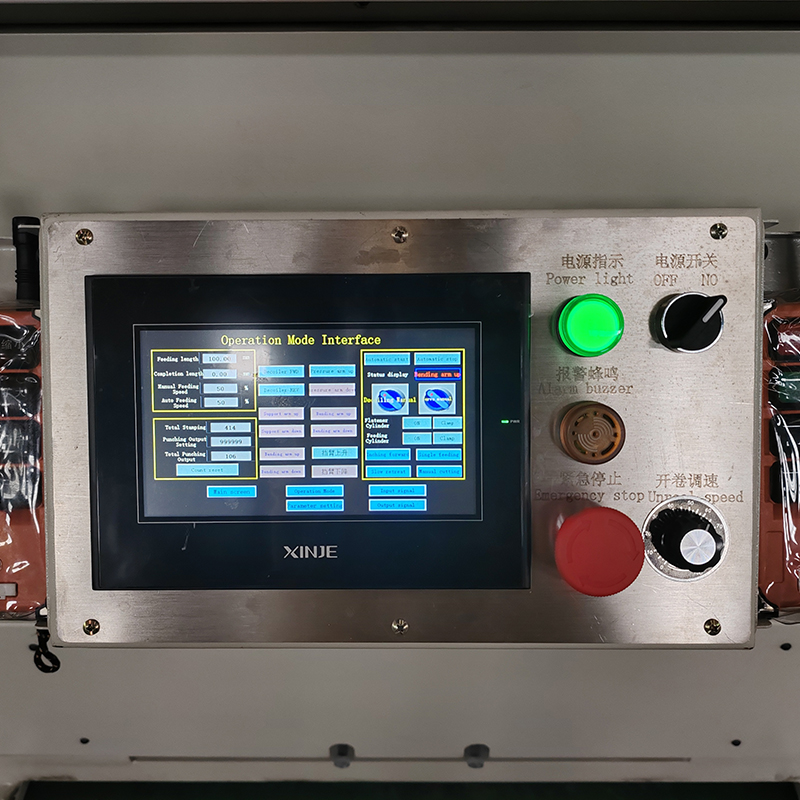

Fully Automatic Control System — No More Manual Adjustments

3-in-1 uses PLC touchscreen control. Input material thickness, width, and feeding pitch, and the system automatically adjusts all parameters. When changing products, one-click recalls the recipe number, and the equipment adjusts itself.

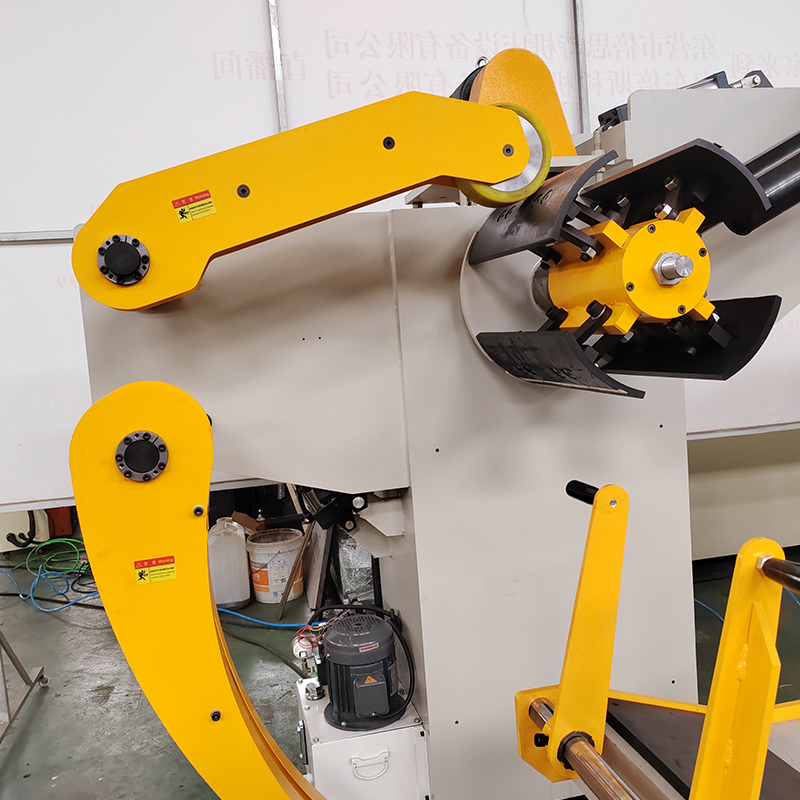

Standard Hold-Down Arm — Keeps Coil Under Control

3-in-1 comes standard with a hold-down arm drive motor, keeping material pressed throughout unwinding—safe and stable.

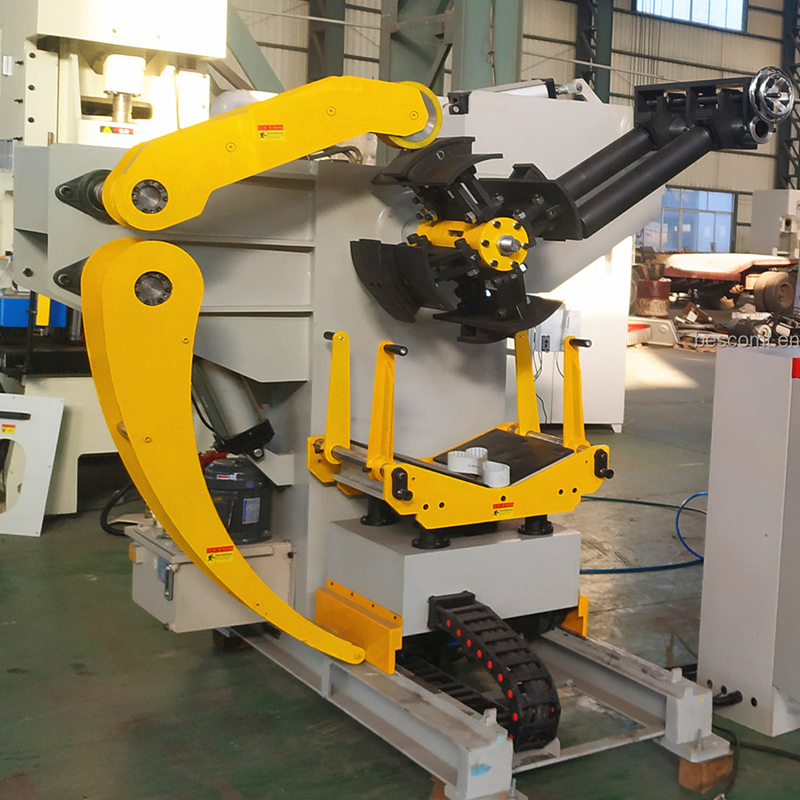

Material Support Table — Protects Surface from Scratches

3-in-1's support table holds the material up, keeping it as it enters the leveling rollers—zero surface damage.

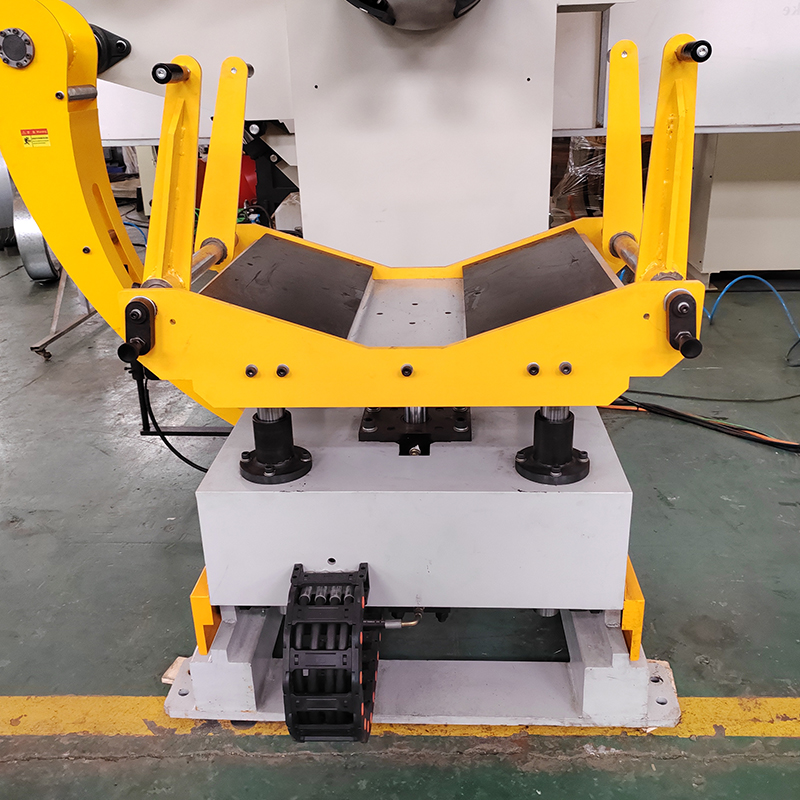

Loading Car — Easy Coil Loading

3-in-1's standard loading car lifts the coil smoothly from the ground onto the decoiling shaft—one person with a remote control completes the job.

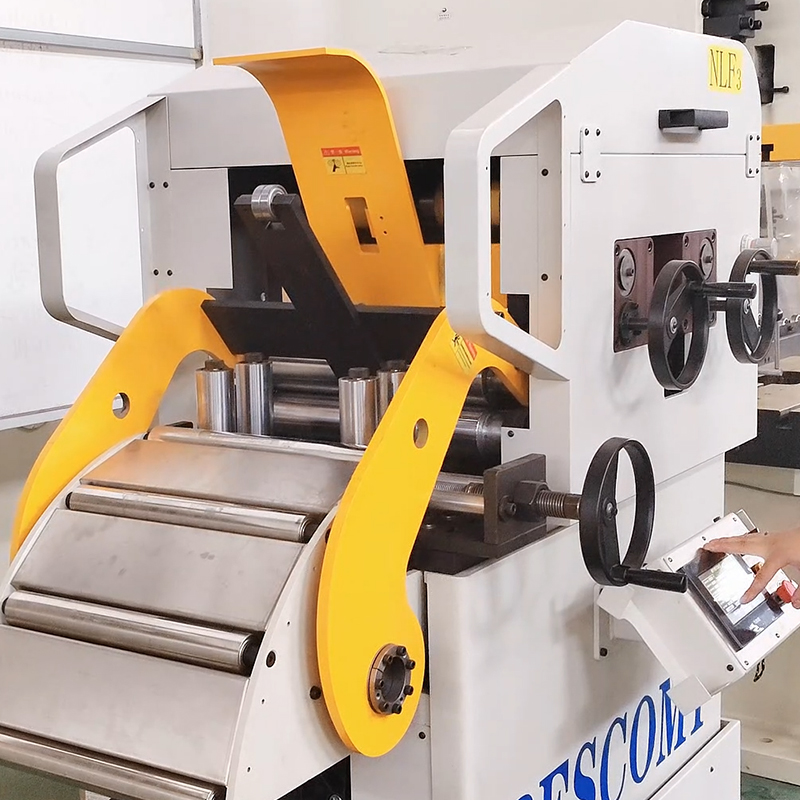

Pneumatic Leveler Control — Fast and Accurate Pressure Adjustment

3-in-1's leveler uses pneumatic control, much faster than manual adjustment with more even pressure.

There is no absolute "good" or "bad" when choosing a feeding system—only "suitable" or "unsuitable." 2-in-1 and 3-in-1 are like manual and automatic transmissions—manual is cheaper and fun to drive, but tiring in traffic; automatic costs more but offers peace of mind and ease. Is your workshop "often in traffic" or "smooth sailing"? That determines your choice.

If you're still struggling, feel free to share your material, product, and site conditions with us. BESCO's technical team will combine over a decade of industry experience to give you practical advice—not pushing the most expensive, but recommending the most suitable.
