Our in-house developed NC servo swing arm feeder represents a groundbreaking and highly flexible automation solution. By integrating a high-performance servo drive with a precision swing arm mechanism, the system enables not only high-precision linear feeding but also controlled angular rotation and lateral material offset through programmable operation, thereby surpassing the limitations of conventional feeding methods.
【Core Features and Comparative Advantages】
·Comparative Description：
| Aspect |
（Standard Servo Feeder） |
（Swing Arm Servo Feeder） |
| Motion Path | Linear feeding | Arc swing feeding |
| Main function | Realize fixed-length, high-speed and high-precision linear feeding | While achieving fixed-length feeding, it can also horizontally shift the position of the material. |
| Core advantage | The structure is relatively simple, the speed is faster, the accuracy is higher, and the control and debugging are simpler. | One machine can achieve multi-row, multi-column, staggered or rotated stamping, saving materials and eliminating the need for manual mold adjustment. |
Working scope of zigzag feeding metal round plate:
1. The thickness of product: 0.3-3.2mm/0.5-5.0mm.
2. It suits for the material as steel, copper, aluminum, special alloy, thermometal and so on.
The feature of Zigzag feeder:
1. High output: It can finish many times shift. It can save 7% material in every move, basis on the calculation of the 60° angle. It will change the corner distribution according to the width of material that can increase the material utilization.
2. High efficiency: the feeding speed can meet 60times/min.
3. High-precision: In the process of continuous punch, it can set the min. distance between both sides within 0.5mm; the error of every move can make sure within ±0.08mm.
4. Cover the space is little, the energy consumption is low.
5. The product will drop out on the conveyor after the punched, and then will send to the material platform by the conveyor.
6. Complete automation control, can save labor resource: When the production line working, it just need one staff to operate the electric box. Input the operational program on the manual panel, the machines can complete automatic produce.
Servo motor
Electronic components

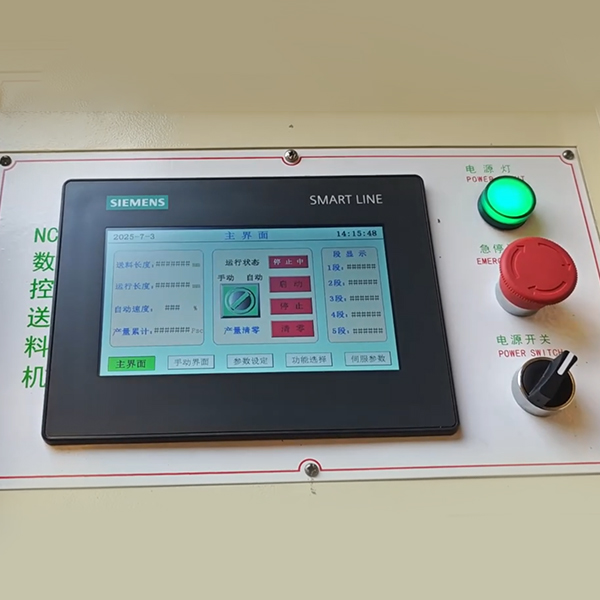

Touchscreen control interface
Rdeally suited for the following industries:
·Motor Industry: Multi-station and rotational stamping of stator and rotor laminations.
·Heat Sink Production: High-efficiency, multi-row offset stamping of aluminum fins.
·Electronics: High-density nesting for LED lead frames, precision connectors, and terminals.
·Metal Stamping: Any application requiring higher material yield, complex layout designs, and reduced tooling investment and setup time.
