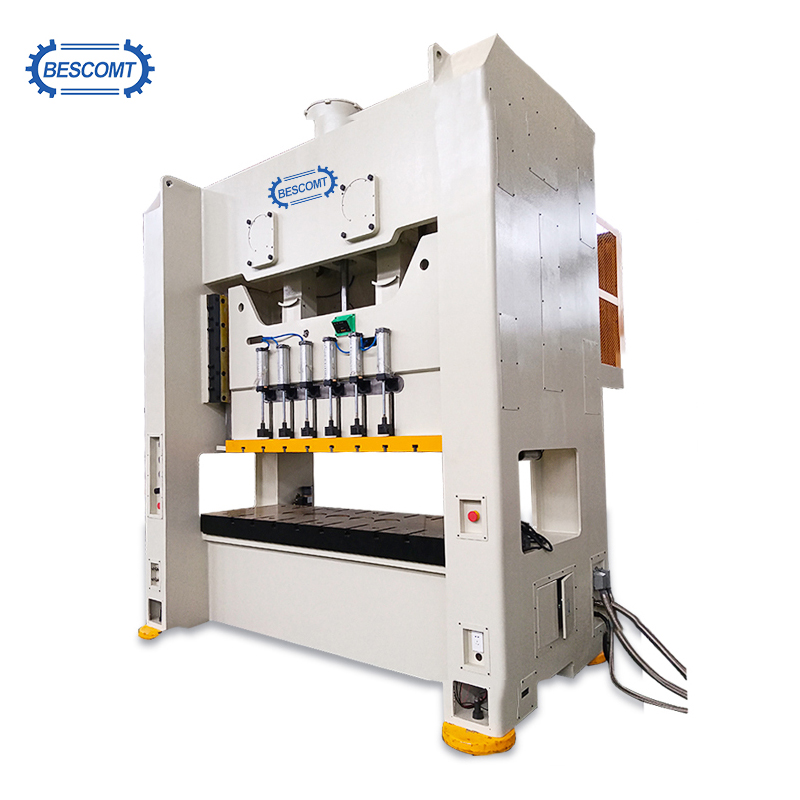

Power press operations carry severe operational and financial stakes. High incidences of point-of-operation injuries trigger severe OSHA penalties and immediate plant shutdowns. Beyond the human toll, facilities face massive hidden expenses when attempting post-installation safety retrofits on non-compliant machinery. Procurement and engineering teams frequently evaluate tonnage, stroke speed, and bed size while treating safety configurations as an afterthought. Purchasing a power press machine without specifying a fully integrated safety architecture leads to compliance gaps, delayed deployment, and increased liability. You cannot bolt on safety after the fact without compromising machine performance and certification integrity. Evaluating factory-installed safety mechanisms represents a mandatory procurement phase. Assessing technical safety requirements, regulatory compliance, and vendor capabilities before issuing a purchase order to a punch press manufacturer ensures your equipment arrives ready for safe, legal production.
Compliance is Non-Negotiable: Any procured press must meet or exceed OSHA 1910.217 and ANSI B11.1 standards directly out of the box to avoid immediate operational liabilities.
Integration Over Isolation: A modern punch press safety system relies on control reliability and redundancy (e.g., safety PLCs, dual air valves) rather than standalone physical guards.
OEM vs. Aftermarket: Specifying safety devices during the initial order drastically reduces long-term operational expenses compared to complex, third-party aftermarket integrations.
Verification is Mandatory: Buyers must demand documented Factory Acceptance Testing (FAT) specifically for safety interlocks, safety PLC logic, and stopping times before taking delivery.
The regulatory landscape governing mechanical, hydraulic, and pneumatic presses is strict and unforgiving. OSHA 1910.217 sets the federal legal minimums for mechanical power presses in the United States. ANSI B11.1 provides the consensus industry standard for risk reduction. These standards dictate specific requirements for point-of-operation safeguarding, control reliability, and brake monitoring. You must understand that OSHA regulations are the absolute legal floor, while ANSI standards represent the engineering best practices required to actually protect operators and equipment.
Modern safety standards align with ISO 13849-1, requiring safety circuits to meet Performance Level d or e. This means the system architecture must be redundant and self-monitoring. A compliant machine must prevent the initiation of a stroke entirely or stop the stroke mid-cycle if an operator enters the hazard zone. Anything less fails the baseline compliance test. When a single relay fails or a wire shorts to ground, the press must default to a safe state and prevent any further cycles until maintenance corrects the physical fault.
Factory-installed safety features carry an upfront premium. However, this initial investment pales in comparison to the costs associated with OSHA fines, worker compensation claims, and unplanned downtime resulting from an accident. An injury on the floor halts production immediately and triggers exhaustive regulatory audits. The downtime alone during an investigation can cost a high-volume stamping facility tens of thousands of dollars per day in lost production.
Retrofitting legacy or under-equipped machines to meet modern safety standards introduces heavy hidden engineering costs. You must factor in custom bracket fabrication, electrical panel modifications, and third-party safety validation. Specifying the right components upfront eliminates these integration headaches. When you order a press with integrated safety, the manufacturer handles the complex wiring, the PLC programming, and the physical mounting of light curtains and interlocks, delivering a turnkey asset.
Barrier guards physically prevent operators from reaching into the die space. Fixed barrier guards attach permanently to the press frame and suit dedicated, high-volume production runs where die access is rarely needed. Adjustable barrier guards offer flexibility for varying part sizes but require strict administrative controls to ensure operators position them correctly. If an operator can reach over, under, around, or through the guard to access the pinch point, the guard is non-compliant.
Interlocked barrier guards provide the highest level of physical protection. When an operator opens an interlocked guard, the device immediately disables the press control circuit. The machine cannot cycle until the guard is closed and secured. Procurement teams must verify that these interlocks utilize tamper-resistant, safety-rated switches rather than standard proximity sensors. Standard sensors are easily bypassed with a piece of metal or a magnet, defeating the entire safety architecture.
Opto-electronic devices dominate high-frequency loading and unloading operations. Light curtains create an invisible sensing field across the die opening. When an object breaks this field, the control system halts the press stroke instantly. These devices eliminate the ergonomic strain of opening and closing physical gates every few seconds, directly increasing operator output.
When specifying these devices, buyers must check several technical parameters. Resolution determines whether the curtain detects a finger (14mm) or a hand (30mm). Response time directly impacts the required safety mounting distance. Advanced configuration modes like fixed blanking allow conveyor feeds to pass through the field without triggering a stop. Presence Sensing Device Initiation (PSDI) uses the light curtain to automatically trigger the press cycle once the operator removes their hands, drastically improving cycle times. You must ensure the press control is specifically rated for PSDI operation before implementing this feature.
Two-hand controls force operators to keep their hands safely away from the die space during the hazardous portion of the stroke. The operator must press two separate buttons concurrently and synchronously—typically within 0.5 seconds of each other—to initiate the cycle. The physical distance between the buttons and the die space must be calculated based on the machine's stopping time to ensure the operator cannot release the buttons and reach the hazard before the ram stops.
This system relies entirely on anti-tie down and anti-repeat circuitry. Anti-tie down prevents an operator from taping down one button to operate the press with a single hand. Anti-repeat ensures the press completes only one stroke per activation, requiring the operator to release and re-press both buttons for the next cycle. You must mandate these specific circuit behaviors in your purchase order. A simple two-button setup wired in series is not a compliant two-hand control system.
Maintenance and die setup present unique hazards because personnel must physically enter the die space. Physical slide locks and electrical safety blocks are mandatory for these procedures. Safety blocks physically prop up the heavy press slide, preventing it from falling due to gravity or mechanical failure. They must be rated to support the static weight of the slide and the upper die half.
Modern compliance requires these blocks to be electrically interlocked with the main control circuit. When a technician removes the safety block from its designated storage receptacle, the interlock cuts control power to the clutch and brake valve. This prevents accidental stroke initiation while hands are in the die space. If a facility relies solely on lockout/tagout (LOTO) without interlocked safety blocks, they leave a massive gap in their mechanical energy isolation procedures.
Physical restraint systems physically tether the operator's hands to a mechanism that pulls them away from the die space as the ram descends. While technically permissible under older standards, these legacy systems hold little viability in modern manufacturing environments. They represent an outdated approach to operator protection.
Restraints severely impact operator ergonomics and restrict movement. They also require strict, documented inspections before every single shift to ensure proper adjustment for different operators. If a tall operator takes over a machine from a shorter operator without readjusting the restraints, the system provides zero protection. Most facilities abandon pullbacks in favor of presence-sensing devices to improve both safety and throughput.
Control reliability dictates that a single component failure within the control system must not prevent the normal stopping action of the press. Furthermore, the system must inhibit subsequent strokes until the failure is corrected. This is the backbone of modern press safety. You cannot rely on single-channel standard PLCs to manage safety functions on a mechanical press.
Achieving this requires safety-rated PLCs, dual-channel redundant circuitry, and continuous self-checking mechanisms. If a single relay welds shut, the secondary channel must still drop out the safety circuit, and the monitoring logic must detect the discrepancy to prevent a restart. The machine builder must provide electrical schematics that clearly demonstrate this dual-channel architecture from the input device (like a light curtain) through the logic solver (safety PLC) down to the output device (clutch/brake valve).
A safety system is only as effective as the machine's ability to stop. Top-stop monitoring ensures the press slide consistently halts at the top dead center of its stroke. Electronic brake monitors measure the exact time it takes for the slide to stop once the stop command is issued. Mechanical brakes wear down over time, increasing the stopping distance.
This stopping time is critical for calculating the safety distance for light curtains using the ANSI B11.1 formula: Ds = K × (Ts + Tc + Tr + Tbm). The safety system must automatically track brake wear. If the stopping time degrades beyond a safe threshold, the brake monitor must lock out the press until maintenance adjusts or replaces the brake pads. You must specify a press control that includes an integrated, digital brake monitor with programmable fault limits.
Different power sources require specific safety architectures. You cannot apply mechanical press safety standards directly to a hydraulic system without understanding the fluid power differences.
Pneumatic Controls: A pneumatic punch press requires dual-safety exhaust valves. These valves are cross-monitored. If one valve sticks open due to airline contamination or coil failure, the second valve still exhausts the air, stopping the press. Low-air-pressure interlocks are also required to prevent clutch engagement if line pressure drops below safe operating levels.
Hydraulic Controls: Hydraulic presses require redundant, monitored hydraulic safety valves on the cylinder descent line to prevent gravity drops. Pressure transducer monitoring verifies that these valves transition to the safe state between every cycle. If a load-holding valve fails, the secondary valve must catch the ram before it drifts into the operator zone.
Press Type | Critical Safety Component | Function | Failure Consequence if Missing |
|---|---|---|---|
Mechanical/Pneumatic | Dual-Safety Exhaust Valve | Exhausts clutch air redundantly | Unintended continuous stroke |
Hydraulic | Monitored Load-Holding Valve | Prevents gravity descent of ram | Ram drift or sudden drop during setup |
All Types | Safety PLC / Relay | Monitors dual-channel inputs | Single point of failure bypasses safety |
All Types | Interlocked Safety Block | Isolates mechanical energy | Crush hazard during die maintenance |
Mechanical presses utilize massive flywheels that store kinetic energy. Even after you turn off the main motor, a high-inertia flywheel can coast for several minutes. This coasting presents a severe hazard if operators open guards prematurely or if maintenance personnel attempt to access the drive mechanism.
To mitigate this, specify automatic flywheel brakes that engage immediately when the motor stops. Additionally, mechanical flywheel locks ensure the press remains completely de-energized and physically immobilized before maintenance personnel begin die changes or internal repairs. A coasting flywheel has enough stored energy to cycle the press even with the main power disconnected.
Buying a bare-bones base model and hiring third-party integrators to add punch press safety devices often seems cheaper on paper. In reality, this approach introduces severe compatibility risks. Third-party integration requires cutting into factory wiring, modifying control panels, and writing custom PLC logic. You end up with a patchwork system.
These modifications frequently lead to integration errors, nuisance faulting, and voided OEM warranties. Ordering a fully integrated solution directly from the factory ensures all safety components communicate flawlessly with the main machine controller. The factory engineers have already mapped the I/O, calculated the stopping times, and verified the safety distances based on the specific machine dynamics.
Factory-installed safety systems keep the liability and warranty burden squarely on the equipment builder. If a factory-integrated light curtain fails, you have a single point of contact for troubleshooting and replacement. You do not have to mediate disputes between the machine builder and the safety integrator over who caused the fault.
Modifying a machine post-delivery drastically impacts its CE, UL, or NFPA 79 certifications. Once an aftermarket integrator alters the control cabinet, the original factory certification is often voided. This forces your facility to assume the liability and pay for independent field evaluations to recertify the equipment. Keep the responsibility with the original manufacturer by specifying complete safety integration on the purchase order.
Never accept verbal safety assurances. Buyers must request specific documentation before issuing a purchase order. Demand task-based risk assessments conforming to ANSI B11.0. Request safety circuit schematics accompanied by an ISO 13849-1 evaluation report proving Performance Level d or e. The schematics must clearly label the safety relays, dual valves, and interlock circuits.
You must also secure stopping time measurement reports and formal CE or UL compliance declarations. If a vendor cannot produce these documents during the quoting phase, they lack the engineering maturity to deliver a safe machine. Documentation proves that safety is engineered into the machine, not added as an afterthought.
Execute a rigorous FAT specifically targeting safety devices before the machine leaves the builder's floor. Do not just watch the press cycle normally. Intentionally fault the light curtain mid-stroke to ensure the brake engages immediately. Simulate a dual air valve failure by forcing one channel open and verify the press locks out and displays the correct fault code.
Test the integrity of all guard interlocks. Most importantly, mandate that stopping times are physically verified with a stop-time measurement device and calibrated at the factory. Document these results in the FAT sign-off sheet. If the machine fails any safety test during the FAT, refuse delivery until the manufacturer corrects the issue and retests the system.
Safety PLC code requires strict access management. Ensure the safety logic is password-protected and write-locked to prevent unauthorized modifications by floor operators. You cannot allow personnel to bypass safety interlocks via the HMI to speed up production.
However, the code must remain readable for your maintenance team. Without read access, your technicians cannot troubleshoot faults effectively, leading to extended downtime. Establish these software access rights in writing before finalizing the equipment purchase. You need the ability to monitor the safety inputs and outputs to diagnose faulty switches or damaged cables.
Hardware alone does not guarantee a safe working environment. Evaluate the manufacturer's provision of safety-specific training for operators, setup personnel, and maintenance technicians. Factory technicians should train your staff on proper safety block usage, light curtain blanking procedures, and fault recovery. They must demonstrate how to properly adjust the stroke and verify the top-stop position.
Assess the availability of replacement safety components. Proprietary safety relays create supply chain bottlenecks. Ensure the builder utilizes off-the-shelf, globally supported safety components from reputable brands to minimize future downtime. If a safety switch breaks, you need to be able to source a replacement locally rather than waiting weeks for an overseas shipment.
Evaluating safety configurations remains a core engineering and financial requirement during the procurement phase. Failing to specify control-reliable architecture upfront guarantees integration delays and regulatory exposure down the line. Immediately disqualify any vendor that treats control reliability, dual-valve pneumatics, slide locks, or interlocked guarding as optional upgrades. These are mandatory compliance features, not luxury add-ons.
Draft a standardized safety specification sheet based on ANSI B11.1 requirements.
Attach this specification sheet to all future equipment RFQs.
Collaborate with your EHS officers to review vendor schematics before issuing purchase orders.
Schedule a dedicated safety FAT for all new press acquisitions.
A: OSHA 1910.217 mandates point-of-operation guarding, single-stroke mechanisms, control reliability, and dual safety exhaust valves. The system must prevent operators from reaching the hazard zone during the stroke or stop the stroke if the zone is breached.
A: Modern presence-sensing devices and safety PLCs optimize cycle times. By utilizing Presence Sensing Device Initiation (PSDI) mode, the light curtain automatically triggers the press cycle once the operator removes their hands, eliminating physical barriers and speeding up part feeding.
A: A Type A gate protects the operator by remaining closed during the entire machine stroke. A Type B gate only protects the operator during the downstroke and opens on the upstroke. Type A is required for full-cycle protection, while Type B is limited to specific applications.
A: No. Light curtains only provide point-of-operation sensing. A compliant pneumatic press also requires dual safety exhaust valves, air pressure monitors, and brake monitors to ensure the machine is fully control-reliable and capable of stopping when the light curtain is breached.
A: Operators must perform visual inspections and safety block interlock checks per shift. Maintenance teams must conduct periodic, documented technical inspections of stopping times, brake wear, and clutch/brake mechanisms on a weekly, monthly, or annual basis depending on usage.
A: Yes, retrofitting is possible. However, upgrading legacy relay logic to modern control-reliable standards and replacing obsolete valves carries high engineering costs. In many cases, the expense of a full safety retrofit makes purchasing new, compliant equipment a better financial decision.
