Stamping Equipment Selection Guide: Pneumatic Press vs Hydraulic Press

The primary role of stamping equipment is to form metal sheets into specific shapes using dies. According to the drive method, stamping presses fall into four categories: mechanical press, hydraulic press, pneumatic press, and servo press. When it comes to automotive parts manufacturing, pneumatic presses and hydraulic presses are the two most frequently selected options.

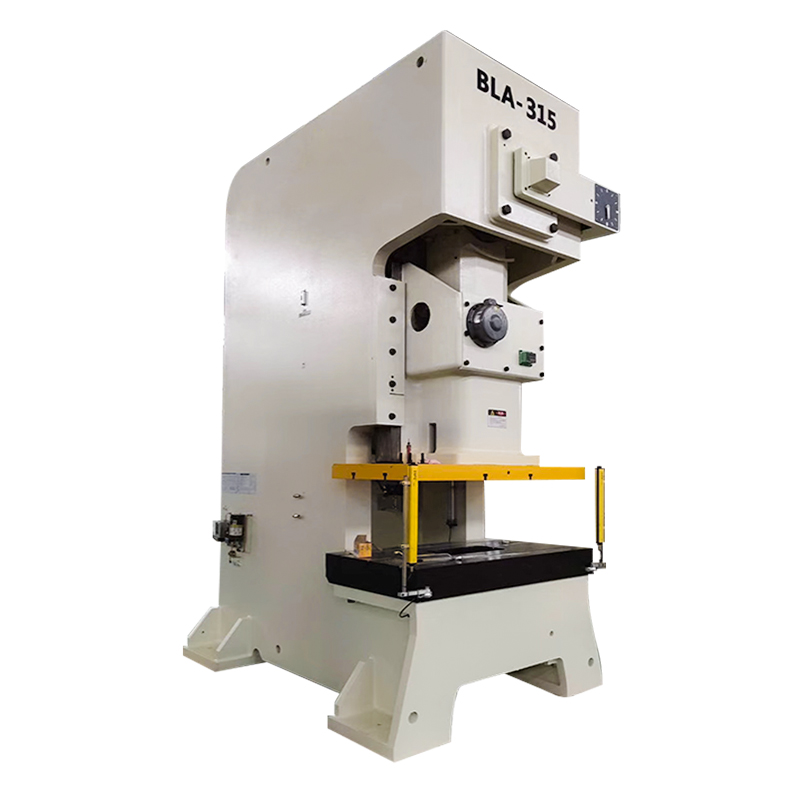

Pneumatic Press for High-Frequency & High-Volume Production

Driven by compressed air, this press is compact, fast-response, and ideal for high-frequency stamping. Key advantages include:

Key Advantages:

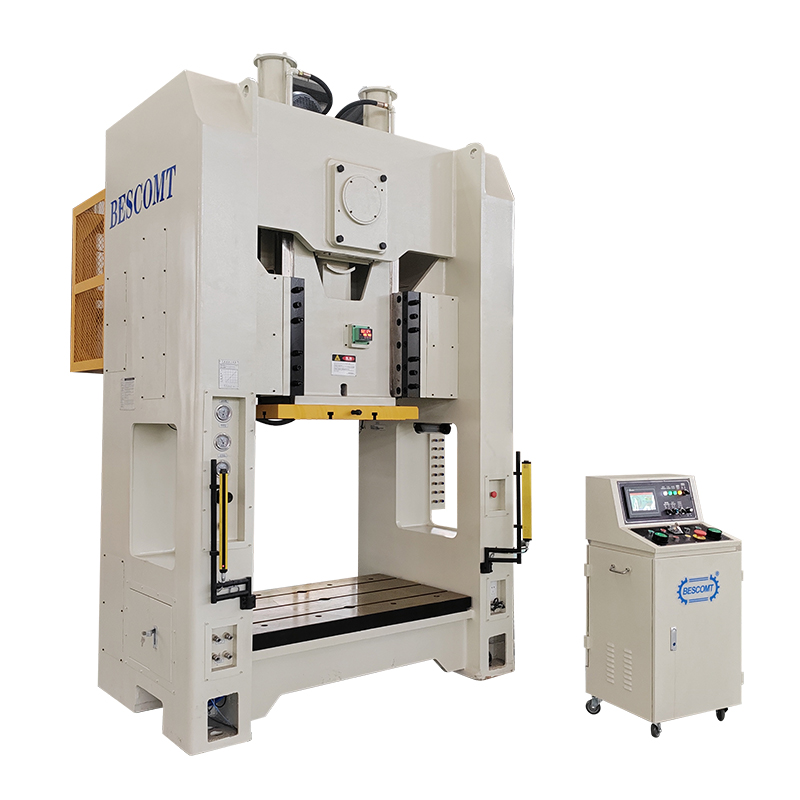

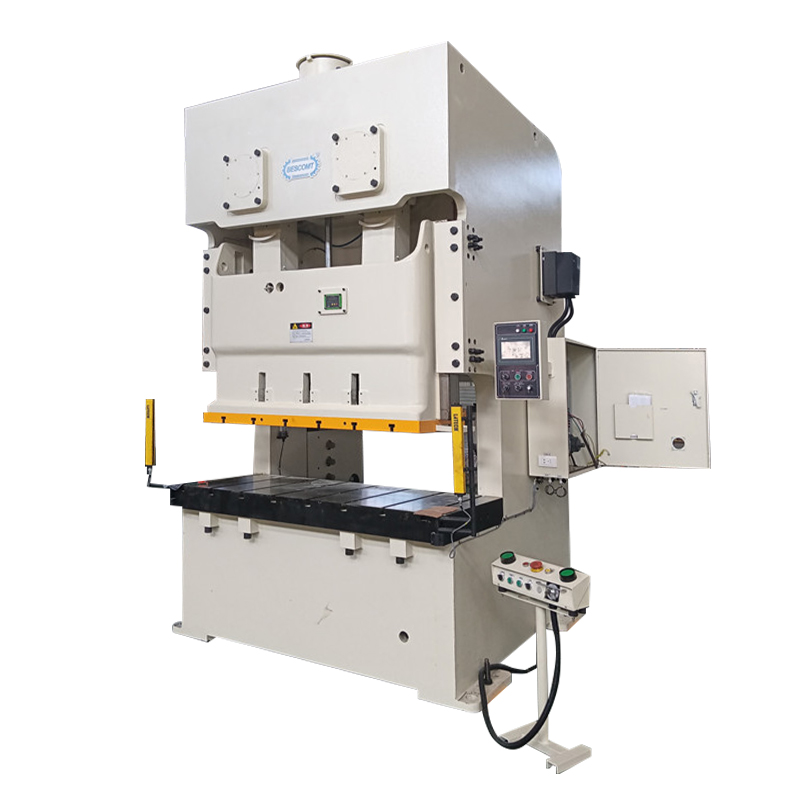

• Frame Structure: Made of high-quality steel plate with high-precision, high-strength design; stress-relieved after welding for stable accuracy and reliable performance.

• Operation Stability: Equipped with a pneumatic balancer to ensure smooth operation and reduce impact.

• Die Height Adjustment Accuracy: Adjustment accuracy up to 0.1mm – safe, convenient, and reliable.

• Key Component Treatment: Crankshaft, gears, screws, etc., are hard-oxidized and ground for excellent mechanical properties and high wear resistance.

• Automation Compatibility: Reasonable structural design with full configuration, easy to integrate into automatic and production line operations.

• Safety: High-performance combined clutch/brake for smooth engagement; equipped with safety dual solenoid valve and hydraulic overload protection device to maximize operational safety.

Applicable Scenarios:

• Light-load components such as small brackets, clips, and wire harness clips.

• Simple forming operations including thin sheet punching, blanking, and bending.

• Standardized parts requiring high-frequency, high-volume production.

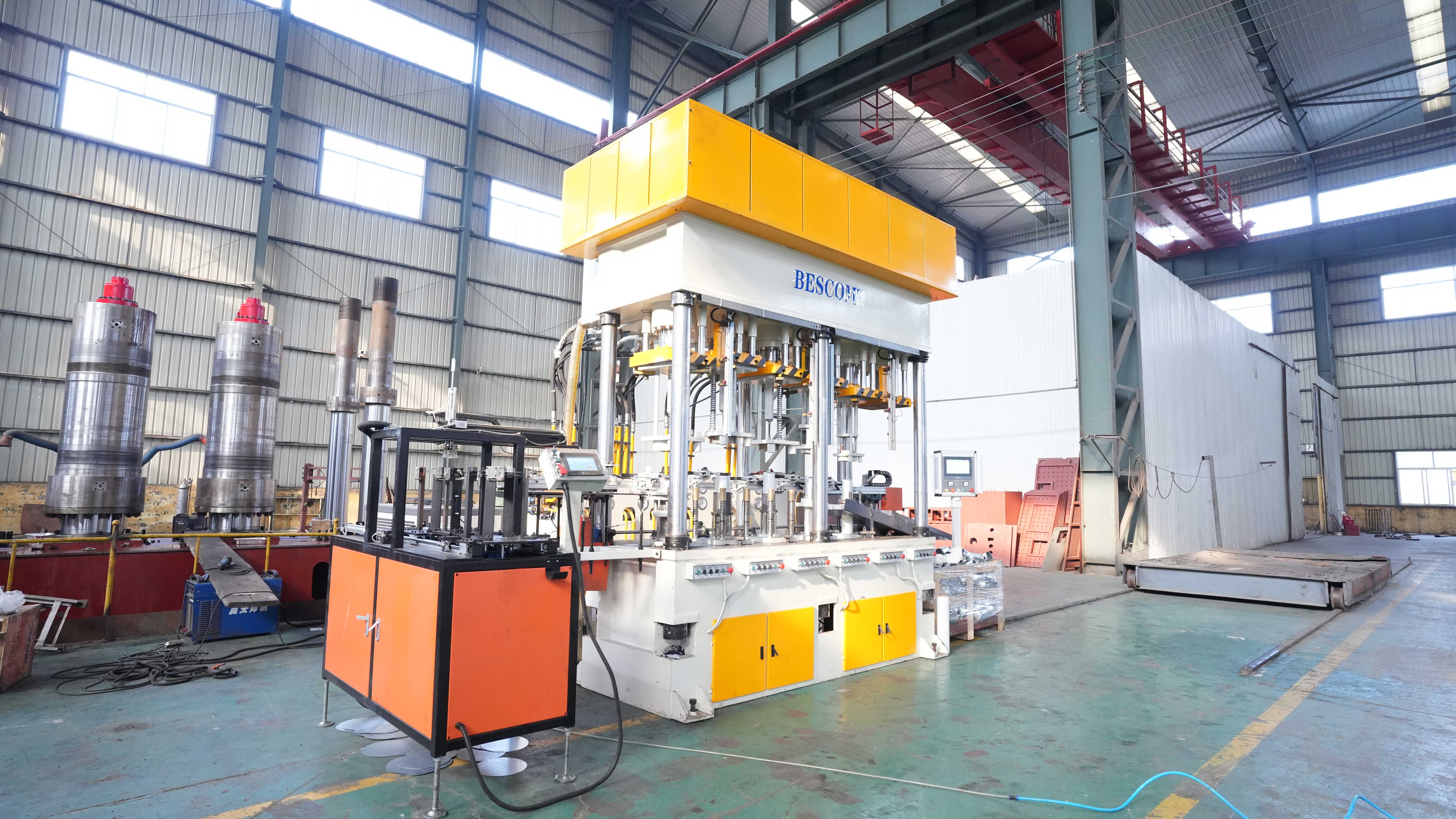

Hydraulic Press: Large Size & Deep Drawing

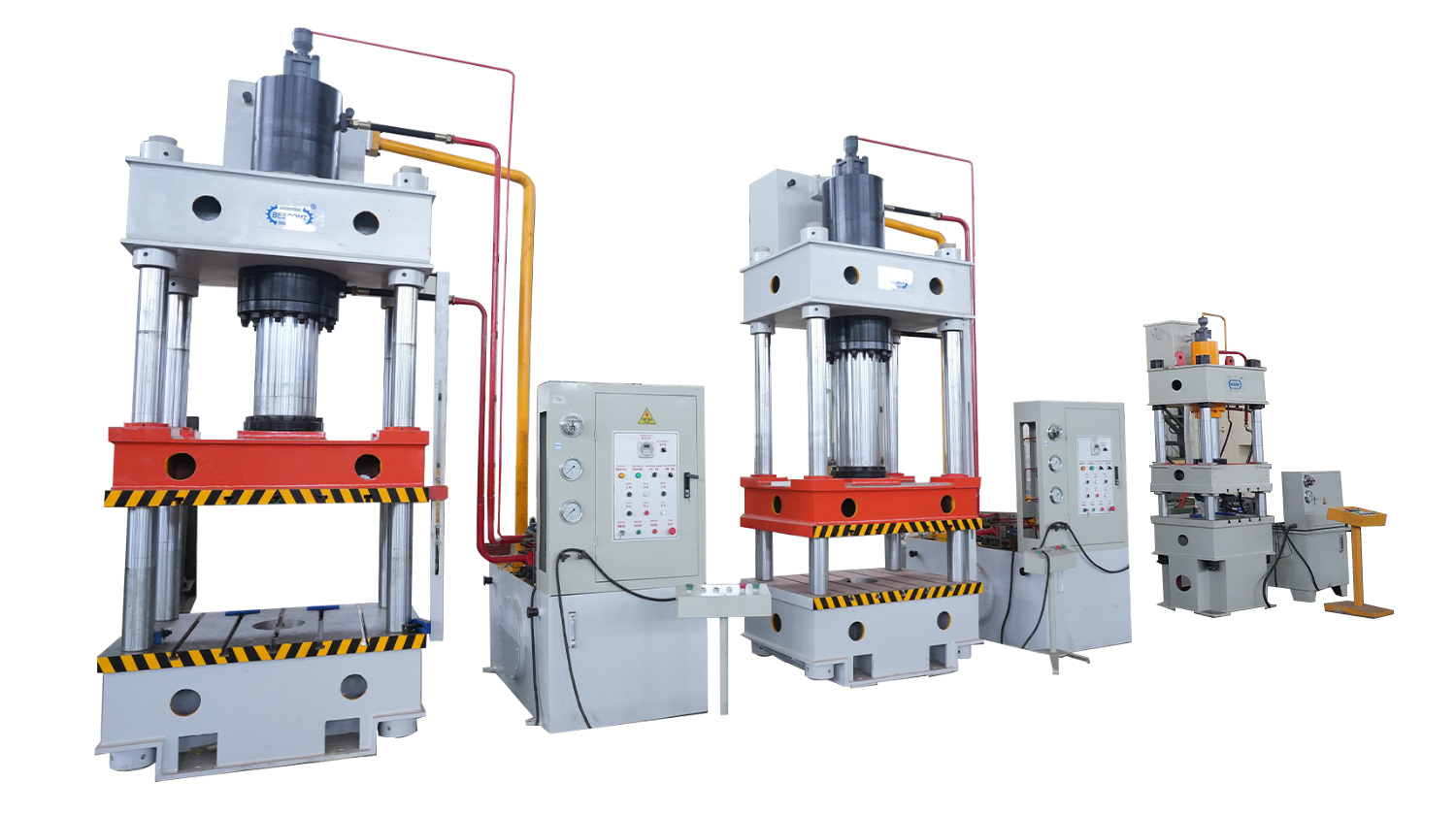

The hydraulic press delivers pressure through a hydraulic system and can output its rated tonnage throughout the entire stroke – this is the biggest difference between it and a pneumatic press.

Key Features:

• Control System: PLC-based electrical control system with three operation modes – adjustment, automatic, manual, and semi-automatic – flexibly adapting to different production requirements.

• Process Modes: Supports both pressure control and position control processes to meet various forming needs.

• Pressure Holding Function: During pressure-controlled forming, it provides pressure holding delay and automatic return stroke – ideal for parts requiring sustained pressure.

• Ejector Device: Equipped with a central ejector device on the worktable, which can be used both for ejecting parts and as a hydraulic cushion for (deep-drawn) part forming.

• Adjustable Parameters: Working pressure and stroke of the ejector device can be adjusted within specified ranges according to process requirements.

Applicable Scenarios:

• Large-sized panels such as battery trays, door inner panels, and engine hoods.

• High-strength steel parts like chassis control arms and spring seats.

• Components requiring deep drawing or complex surface forming.

• Multi-process parts needing pressure holding, ejection, and hydraulic cushion functions.

Automotive Stamping Parts – Application Comparison

From Tooling Design to Mass Production – Full Process Breakdown

Step 1: Tooling (Die) Design

• The die is the "soul" of stamping production, determining part shape, dimensions, and surface quality. A high-quality die design must consider:

• Formability Analysis (CAE): Simulate material flow in computer to detect cracking and wrinkling risks in advance.

• Material Selection: Die steel such as SKD11 – requires high hardness (HRC 63–64) and excellent wear resistance.

• Accuracy Control: Critical surface precision must reach ±0.005mm.

Step 2: Equipment Selection & Production Line Configuration

Select the appropriate stamping equipment based on part characteristics and equip with automation devices:

Automation Trend: Multi-station automatic stamping lines represent the most advanced sheet metal stamping equipment, improving production efficiency by 4-5 times compared to manual feeding lines.

Step 3: Tryout & Debugging

• After die manufacturing is completed, tryout must be performed on the press:

• Dry Run Test: Check smooth die operation, feeding, and ejection.

• First Article Trial: Produce the first batch of parts using actual material.

• Dimensional Inspection: Perform full-size inspection using a Coordinate Measuring Machine (CMM).

• Parameter Optimization: Fine-tune blank holder force, stamping speed, etc., until all dimensions are (qualified).

Step 4: Mass Production Delivery & After-Sales Support

• Die Maintenance: Provide complete maintenance schedule and list of wear parts.

Automotive stamping production is a systematic project – equipment, tooling (dies), and automation are three indispensable elements.

• Pneumatic Press: High-frequency stamping, small parts

• Hydraulic Press: Complex forming, deep drawing

• Automation: Increases efficiency, reduces costs, ensures consistency

If you are planning an automotive stamping production line, we recommend first clarifying the product type and production volume, then selecting the appropriate equipment combination. For new energy vehicle (EV) components such as battery trays and motor housings, we suggest prioritizing a hydraulic press + automation solution to accommodate future processing requirements for lightweight materials and high-strength steel.

Do you have an automotive stamping project that needs evaluation?

Feel free to send us your product drawings and process requirements. We offer free initial equipment solution recommendations.
